Hot Products
disc bike rim asymmetrical

700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready

Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.

Details
disc road bike rim

Aero disc road bike rim 28mm wide 50mm deep clincher tubeless

Item D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.

Details
hookless gravel rim

Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike

Item D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.

Details
disc bike rim

29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes

Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.

Details
rim for gravel bike

700c 29er disc 22mm wide 35mm deep clincher rim for road and gravel bike

Item D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
asymmetric XC rim

29er mtb XC 30mm internal 28mm deep asymmetric carbon rim

Item XC930X, weight 360g, ERD 589mm. Wide 30mm internal width and 3.5mm offset asymmetrical rim profile, super light at 360g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.

Details
700c bike rim

700c disc bike asymmetrical 22mm internal width 40mm deep clincher rim

Item D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
XC bike carbon rims

29er asymmetrical rim profile 30mm internal width XC bike carbon rim

Item XC930X, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.

Details
Latest news
CARBONAL Bike Carbon Rim Catalog 2023 (Updated)

CARBONAL Bike Carbon Rim Catalog 2023 (Updated)

CARBONAL Rims 2023 - Catalog All Rims - Download CARBONAL Rims 2023 - Road Racing - Download CARBONAL Rims 2023 - Gravel - Download CARBONAL Rims 2023 - MTB XC - Download CARBONAL Rims 2023 - MTB AM -...

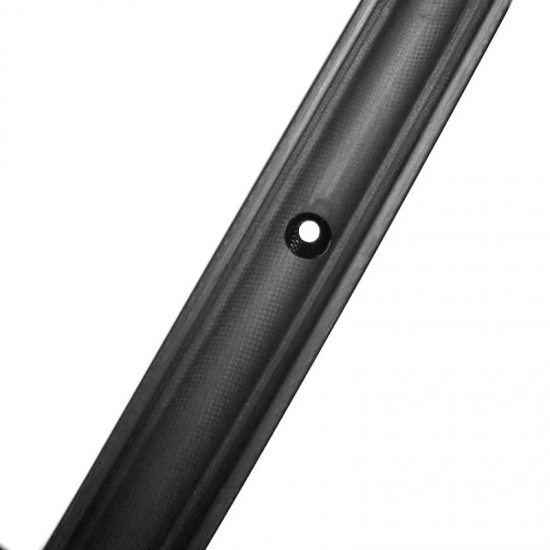

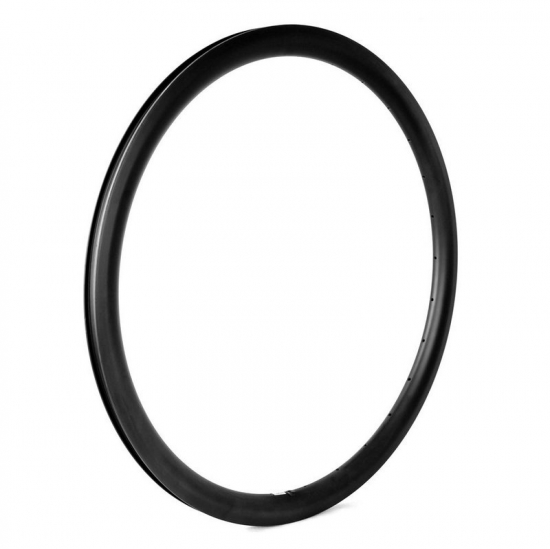

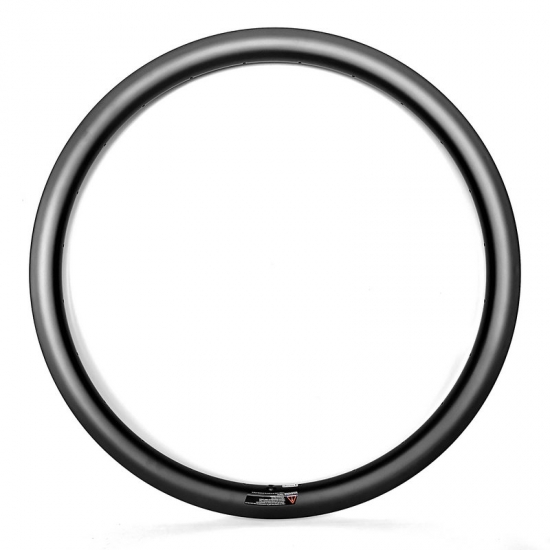

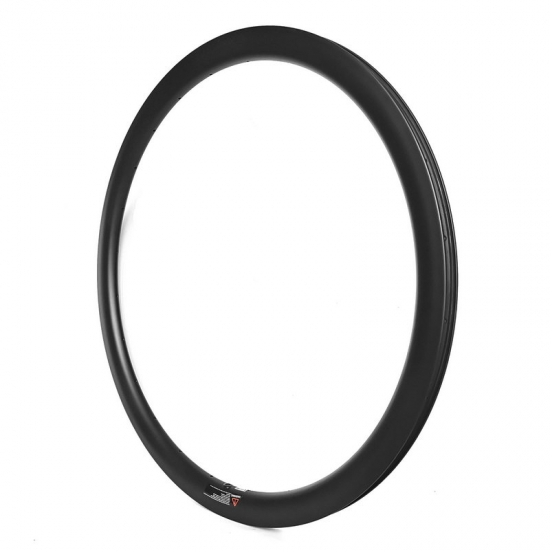

700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready

Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
  • Item No.:

    D18-38X
  • Size:

    700C
  • Material:

    full carbon Toray T700 & T800
  • Type:

    clincher (tubeless ready)
  • Brake:

    disc brake
  • Weight:

    400g±15
  • ERD:

    569mm
  • Inner width:

    18mm
  • Outer width:

    25mm
  • Depth:

    38mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    120kgs / 265lbs
  • description

Product Item: 700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready



This 38mm clincher tubeless ready disc brake carbon rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.


Rim Specs


 Rim Model
 D18-38X
 Material
 Toray T700 & T800 premium carbon fiber
 Size
 700C (ETRTO 622mm)
 Intended Use
 Road
 Bead Type
 Clincher
 Tubeless Ready
 Yes

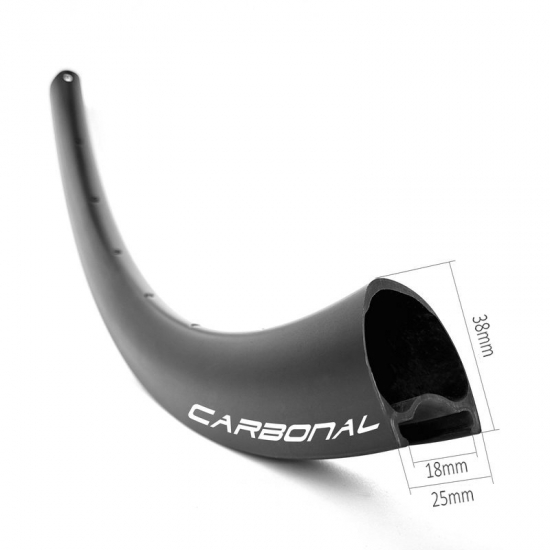

 Inner/Outer Width
 18mm/25mm
 Depth
 38mm
 ERD
 569mm (including nipple head dimension)
 Rim Weight
 400g±15
 Offset
 2.5mm (asymmetric)
 Max Cyclist Weight (on flat ground)
 120kgs / 265lbs
 Rim Weave
 UD, 3k, 3k twill, 6k, Marble
 Rim Finish
 Matte, Glossy
 Spoke Hole Angel
  ±7°
 Spoke Hole Diameter
 2.5mm, 4.5mm or customized
 Access Hole Diameter
 8.5mm
 Valve Hole Diameter
 6.5mm
 Max Spoke Tension
 140kgf (recommended 110~130kgf)
 Max Tire Pressure
 125psi / 8.62bar (recommended max)
 Recommended Tire Width
 21C-38C
 Decal / Paint
 None or Custom graphics
 Warranty
 5 years


Related Gallery & Comments


>>> disc-brake-dx38d-carbon-rims-mount-with-specialized-roubaix-sport-bike


Rim Features

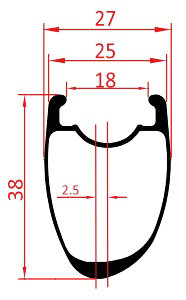

  • This 38mm deep clincher rim is asymmetrical 2.5mm shape where the spoke holes are not centered, but placed out of the middle of this carbon rim, this gives the wheel a more even spoke tension between left and right and therefore a stiffer and longer lasting wheel. Offset rims have advantages with disc wheels and cassette hubs.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

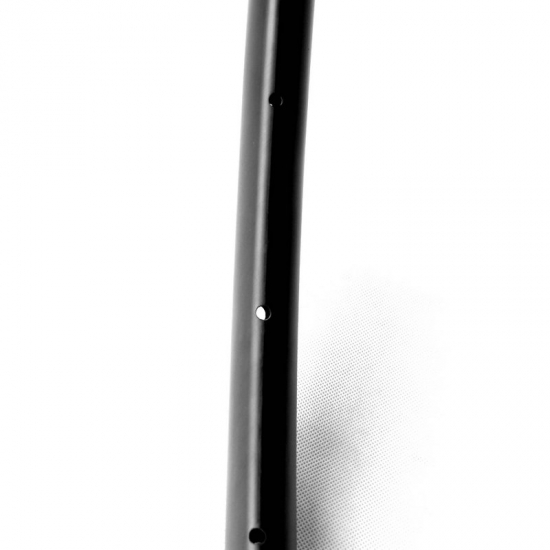

  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Warranty


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


More about Carbonal carbon rim Quality Control
