Carbon road bicycle rim brake tubular rims available in 25mm wide U shape and 23mm V shape.

The new 25mm U shape tubular carbon rim series available in five kind of depths: 30mm, 38mm, 50mm, 60mm and 88mm,and on the two most popular sizes 38mm and 50mm, we offered both symmetrical and asymmetrical versions.

Carbon bicycle rim brake tubular rims

Depth	30mm	38mm	38mm	50mm	50mm	60mm	88mm
Item	RT30S	RT38S	RT38D	RT50S	RT50D	RT60S	RT88S
Weight	310g	360g	360g	410g	410g	480g	530g
ERD	586	569	569	545	545	525	469

Wider road rim profile makes for more tire volume, lower rolling resistance, better handling and more confidence for cornering on rails.

The advantage of rim brake tubular rims:

*High TG 210°C resin system, less than 0.1% braking failure;

*Aerodynamic U shape & V shape profile design;

*Lightweight but stiff enough;

*5 years warranty.

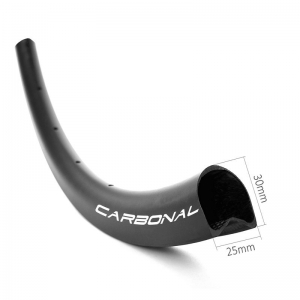

Carbon bike road 700C U shape 30mm deep 25mm wide tubular rim
Item RT30S, weight 310g, ERD 586mm. Wide and low profile makes these 30mm deep carbon bike tubular rims in super lightweight. These 25mm wide 700c tubular rims work well with road bike tubular tires size from 25mm to 35mm wide.

Tags : wide tubular rim 700c tubular rim carbon bike tubular rim

view detail

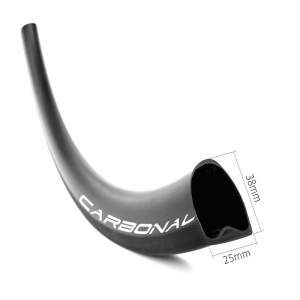

U shape 700c road wider 38mm deep bicycle wheel tubular rim
Item RT38S, weight 360g, ERD 569mm. 700c road wider 38mm bicycle wheel tubular rims are super light and with wider width, the strength is much improved. It's the best choice for light weight road bicycle wheels.

Tags : bicycle tubular rim tubular wheel rims bicycle wheel rim tubular

view detail

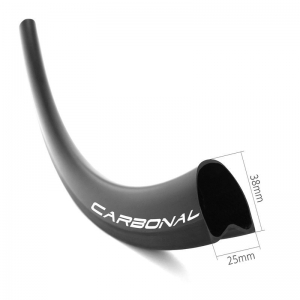

700C road bike 25mm wide 38mm deep tubular asymmetric carbon rim
Item RT38D, weight 360g, ERD 569mm. These 25mm wide tubular rim 38mm deep is asymmetric shape, aerodynamic performance and it build up into stiffer, stronger and more reliable bike wheels by equalizing the spoke tensions between the drive and non-drive side spokes.

Tags : asymmetric carbon rim bike rims asymmetric asymmetric tubular rim

view detail

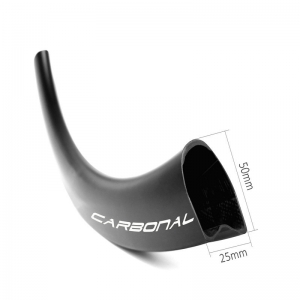

Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim
Item RT50S, weight 410g, ERD 545mm. Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim is aero, lightweight but still stiff. Aerodynamic and durable enough for flat road racing, training and also cyclocross riding.

Tags : carbon fiber rim carbon tubular rim bicycle carbon rim

view detail

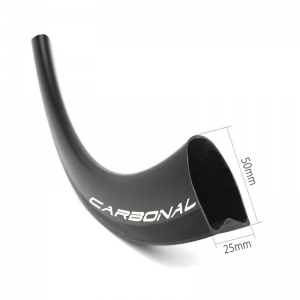

Asymmetrical 2.5mm offset 700C road 50mm depth tubular carbon rims
Item RT50D, weight 410g, ERD 545mm. 50mm depth U shape carbon rim is the most popular size, aerodynamic and asymmetric profile for more stable bicycle wheels by equalizing the spoke tensions between the drive and non-drive side.

Tags : asymmetrical carbon rims carbon rim asymmetrical 2.5mm offset tubular rims

view detail
Aero U shape 25mm wide 60mm depth rim brake tubular carbon rims
Item RT60S, weight 480g, ERD 525mm. U shape 25mm wide tubular rims perfect fit road tubular tire size from 24mm to 35mm wide. Aerodynamic, stiff and durable enough for training, road racing, and also cyclocross riding.

Tags : aero carbon rims 60mm tubular rim carbon tubular rims

view detail

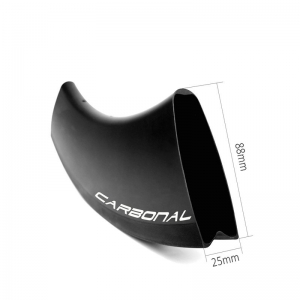

Aerodynamic 88mm deep wider 25mm U shape tubular carbon 700C road rim
Item RT88S, weight 530g, ERD 469mm. Carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.

Tags : wider tubular rim 88mm tubular rim U shape carbon rim

view detail
Gravel bike tubular 50mm depth 25mm wide carbon rim
Item RT50S-CX, weight 410g, ERD 545mm. Wider and U shape 50mm deep rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for gravel bike or cyclocross disc brake wheels.

Tags : bike gravel rim gravel tubular rim gravel carbon rim

view detail
650C road bicycle carbon rim 23mm wide 50mm deep tubular
Item RT650C, weight: 360g, ERD 493. 650C carbon road 23mm wide 50mm deep tubular rim is lightweight and aerodynamics, build into a light 650C road wheelset. Available in rim brake and disc brake for training, racing.

Tags : 650c carbon rim 650c road rims 650c bicycle rim

view detail
Lightweight 23mm wide 20mm deep carbon 700c road bicycle tubular rim
Item RT20W, weight: 250g, ERD 606mm. This V shape 23mm wide 20mm deep tubular rim 250g only, it's the lightest tubular carbon rim in our 23mm wide rim brake tubular range. Build into a lightest 700c carbon road bicycle tubular wheelset.

Tags : carbon bicycle rim tubular carbon rim 20mm carbon rim tubular

view detail

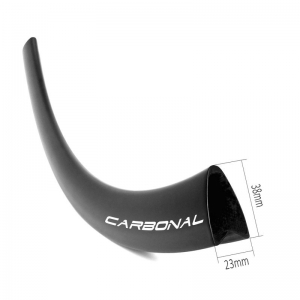

700C road bike 23mm wide V shape 38mm deep tubular carbon rim
Item RT38W, weight: 330g, ERD 570. 700C road V shape 38mm tubular carbon rim is lightweight and aerodynamics, it's the best choice for light-weight road bicycle wheels. This 38mm tubular wheels rim can be for rim brake and disc brake.

Tags : carbon road rim road tubular rim 38 carbon rims

view detail

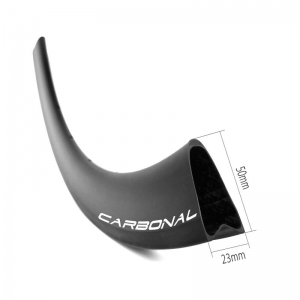

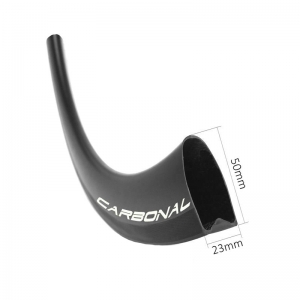

700C road bicycle 23mm wide V shape 50mm depth tubular carbon rim
Item RT50W, weight: 380g, ERD 546mm. 700C road V shape 50mm tubular carbon rim is lightweight and aerodynamics, build into a light 700C carbon road bicycle wheelset. Available in rim brake and disc brake for training, racing and cyclocross.

Tags : road bicycle rim tubular carbon rims 50 tubular carbon rim
