Item No.:
RT50SSize:
700CMaterial:
full carbon Toray T700Type:
tubularBrake:
rim brakeWeight:
350g±15 / 390g±15ERD:
545mmWidth:
25mmDepth:
50mmMax spoke tension:
140kgfMax weight limit:
125kg / 276lbs

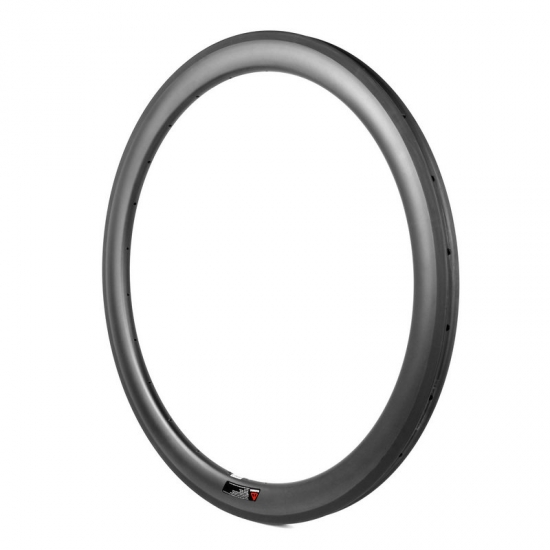

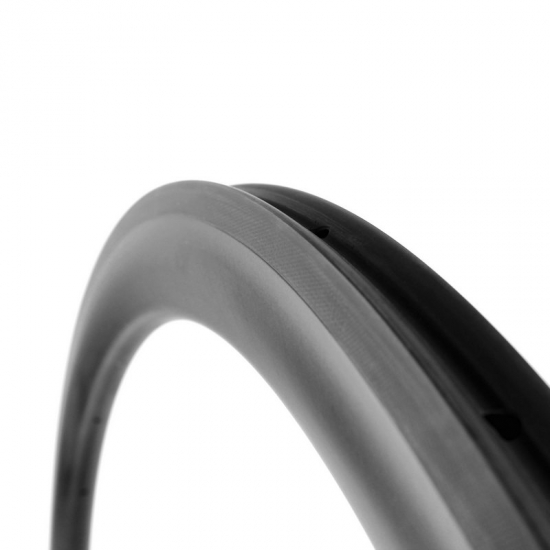

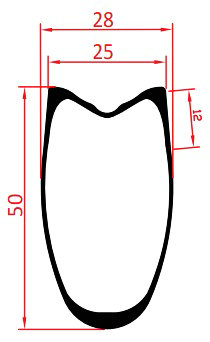

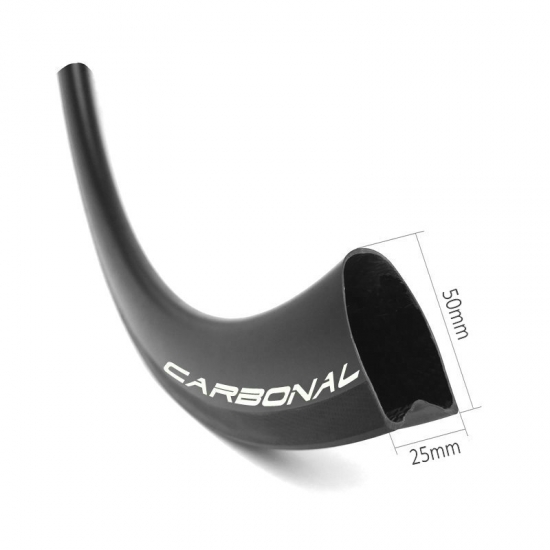

Product Item: Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim
Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim is aero, lightweight but still stiff. Aerodynamic and durable enough for flat road racing, training and also cyclocross riding.
Specification:
|
Item: |
RT50S |
Use: |
road bike, cyclocross |
|
Rim type: |
700C tubular - rim brake |
Material: |
Toray T700 carbon fiber |
|
Width: |
25mm |
Weight: |
350g±15 / 390g±15 |
|
Depth: |
50mm |
ERD: |
545mm |
|
Weave: |
UD, 3k, marble |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max / Min tire pressure: |
N/A / 80psi (5.5 bar) |
|
Decal: |
Customized |
Weight limit: |
125kgs |
|
TG resin temperature: |
210°C |
Standard: |
EN standard |
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
U shape 700c road wider 38mm deep bicycle wheel tubular rim
Item RT38S, weight 320g/360g, ERD 569mm. 700c road wider 38mm bicycle wheel tubular rims are super light and with wider width, the strength is much improved. It's the best choice for light weight road bicycle wheels.
700C road bicycle 25mm wide 45mm deep tubular carbon rim
Item RT45S, weight 330g/370g, ERD 555mm. These 25mm wide tubular rim 45mm deep is asymmetric shape, aerodynamic performance and it build up into stiffer, stronger and more reliable bike wheels by equalizing the spoke tensions between the drive and non-drive side spokes.
Aero U shape 25mm wide 60mm depth rim brake tubular carbon rims
Item RT60S, weight 430g/480g, ERD 525mm. U shape 25mm wide tubular rims perfect fit road tubular tire size from 24mm to 35mm wide. Aerodynamic, stiff and durable enough for training, road racing, and also cyclocross riding.
Aerodynamic 80mm deep wider 25mm U shape tubular carbon 700C road rim
Item RT80S, weight 480g/530g, ERD 485mm. Carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.
650C road bicycle carbon rim 23mm wide 50mm deep tubular
Item RT650C, weight: 360g, ERD 493. 650C carbon road 23mm wide 50mm deep tubular rim is lightweight and aerodynamics, build into a light 650C road wheelset. Available in rim brake and disc brake for training, racing.
700c disc bike asymmetrical 22mm internal width 45mm deep clincher rim
Item D22-45X, weight 390g, ERD 405mm. New 2.5mm offset asymmetric 29er/700C 45mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
700c disc carbon bike rim 21mm internal width 22mm deep clincher
Item D21-22,weight 350g/ 380g, ERD 601mm. Featuring a wide 21mm internal rim width,this tubeless ready 22mm deep bike clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
650B Full Carbon 28mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W28-650B, weight: 925g(±5%). Developed as the ideal rear disc wheel for road and time trail bike, most effective solutions for the aerodynamics as well as ride quality. This new 650b disc wheel has 22mm internal width and tubeless tire bed, so you can choose your fastest setup possible in terms of tire choice.
