Item No.:
RT650CSize:
650CMaterial:
full carbon Toray T700Type:
TubularBrake:
Rim brake or Disc brakeWeight:
360g±15ERD:
493mmWidth:
23mmDepth:
50mmMax spoke tension:
140kgfMax weight limit:
125kgs

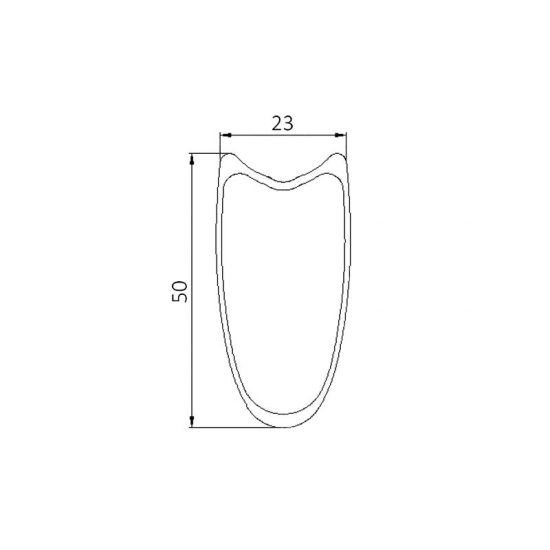

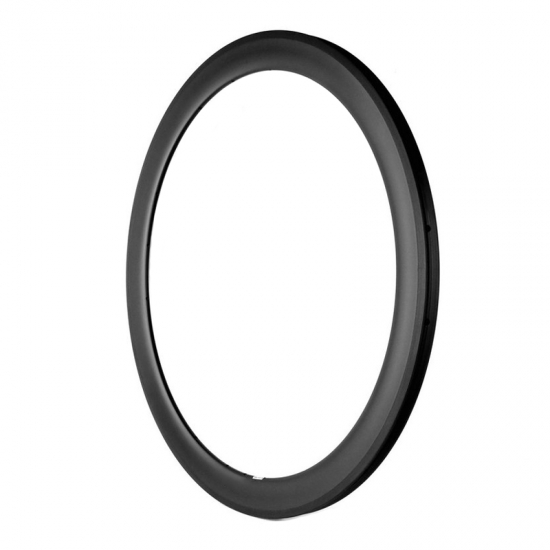

Product Item: 650C road bicycle carbon rim 23mm wide 50mm deep tubular
650C road bicycle 23mm wide 50mm deep tubular carbon rim is lightweight and aerodynamics, build into a light 650C carbon road wheelset. Available in rim brake and disc brake for training, racing.
Rim Specs:
|
Item: |
RT650C |
Use: |
road bike, cyclocross |
|
Rim type: |
650C tubular - rim brake or disc brake * |
Material: |
Toray T700 carbon fiber |
|
Width: |
23mm |
Weight: |
360g±15 |
|
Depth: |
50mm |
ERD: |
493mm (including nipple head dimension) |
|
Weave: |
UD, 3k, 6k, 3k twill, marble |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Min tire pressure: |
80psi |
|
Decal: |
Customized |
Weight limit: |
125kgs |
|
TG resin temperature: |
210°C |
Standard: |
EN standard |
* Disc brake, we will manufacture this rim without braking surface accordingly.
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
U shape 700c road wider 38mm deep bicycle wheel tubular rim
Item RT38S, weight 320g/360g, ERD 569mm. 700c road wider 38mm bicycle wheel tubular rims are super light and with wider width, the strength is much improved. It's the best choice for light weight road bicycle wheels.
700C road bicycle 25mm wide 45mm deep tubular carbon rim
Item RT45S, weight 330g/370g, ERD 555mm. These 25mm wide tubular rim 45mm deep is asymmetric shape, aerodynamic performance and it build up into stiffer, stronger and more reliable bike wheels by equalizing the spoke tensions between the drive and non-drive side spokes.
Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim
Item RT50S, weight 350g/390g, ERD 545mm. Carbon fiber 700c road bicycle 25mm wide 50mm depth tubular rim is aero, lightweight but still stiff. Aerodynamic and durable enough for flat road racing, training and also cyclocross riding.
Aero U shape 25mm wide 60mm depth rim brake tubular carbon rims
Item RT60S, weight 430g/480g, ERD 525mm. U shape 25mm wide tubular rims perfect fit road tubular tire size from 24mm to 35mm wide. Aerodynamic, stiff and durable enough for training, road racing, and also cyclocross riding.
Aerodynamic 80mm deep wider 25mm U shape tubular carbon 700C road rim
Item RT80S, weight 480g/530g, ERD 485mm. Carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.
700c gravel bike disc 24mm internal width 39mm deep clincher carbon rim
Item D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.
700C Carbon Road & TT Track Triple Spoke 23mm Wide 60mm Deep Wheels
Item DTX301-23W-60D, weight: 795g ~ 1140g. This triple spoke wheel features a 60mm deep rim with a 23mm width, aerodynamics design and outstanding stiffness provides efficient and direct power transfer, perfect for time trial testers and triathletes.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
[Disc Brake] Custom build disc brake gravel bike carbon wheel with DT Swiss 350 SP hub + Sapim CX-Ray spokes & alloy nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
