Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-39, weight 380g, ERD 567mm. Featuring an impressive 32mm inner width, the D32-39 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
A fatbike can take you to go where no mountainbike is supposed to go, to the middle of nowhere. And with Carbonal lightweight and reliable as usual Fatbike rim & wheels, there is no reason not to have a little fun on your way out to that middle of nowhere.

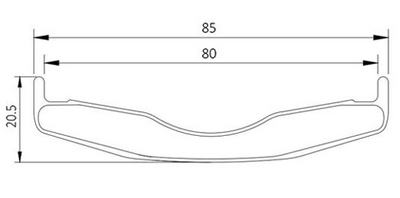

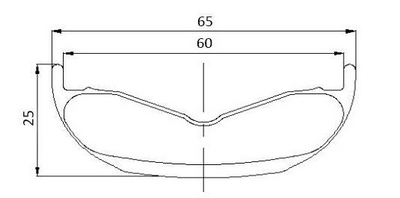

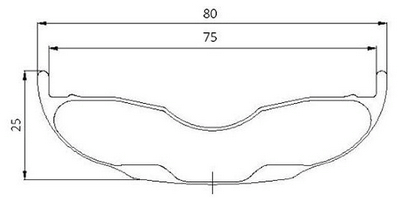

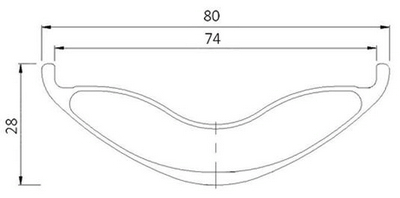

Model
MX665
MX680
MX685
MX780
Size
26"
26"
26"
27.5"
Material
Toray T700
Toray T700
Toray T700
Toray T700
Profile
Width
65mm
80mm
85mm
80mm
Depth
25mm
25mm
20.5mm
28mm
Max spoke tension
140kgf
140kgf
140kgf
140kgf
Max tire pressure
25psi / 1.7bar
25psi / 1.7bar
25psi / 1.7bar
25psi / 1.7bar
Tire size
26" * 3.0"~4.8"
26" * 3.8"~4.9"
26" * 4.0"~4.9"
27.5" (650b) * 3.8"~4.9"
