disc bike rim asymmetrical

700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready

Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.

Details
disc road bike rim

Aero disc road bike rim 28mm wide 50mm deep clincher tubeless

Item D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.

Details
hookless gravel rim

Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike

Item D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.

Details
disc bike rim

29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes

Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.

Details
rim for gravel bike

700c 29er disc 22mm wide 35mm deep clincher rim for road and gravel bike

Item D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
700c bike rim

700c disc bike asymmetrical 22mm internal width 40mm deep clincher rim

Item D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
XC bike carbon rims

29er asymmetrical rim profile 30mm internal width XC bike carbon rim

Item XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.

Details
gravel bike disc rim

700c gravel bike disc 24mm internal width 39mm deep clincher carbon rim

Item D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.

Details
Latest news
2024 Eurobike booth at Hall 9.1-A30, welcome to vist us!

2024 Eurobike booth at Hall 9.1-A30, welcome to vist us!

Dear valued customers, We are excited to invite you to the 2024 Eurobike Bicycle Show, which will take place from July 3rd to 7th, 2024, in Frankfurt, Germany. As one of the leading bicycle industry e...

Lightweight, aero, high stiffness and strong.

Our new carbon road bike disc brake clincher rims are 40~70 gram lighter than rim brake version, by using a new fiber layup that removes unnecessary excess material on the disc brake rims to save weight without compromising the rims strength, and constructed with premium Toray T700 & T800 carbon fiber.


All carbon rims are 100% customizable at Carbonal bike. Such as rim graphics, color painting, no rim-bed-hole tubeless, schrader or presta valve hole, internal nipple hole, reinforced rim, 2:1 lacing, G3 pattern, and customize rim mold (OEM).

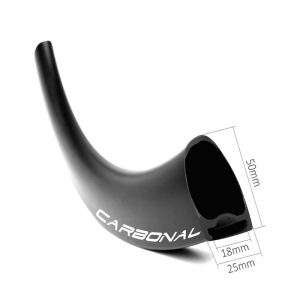

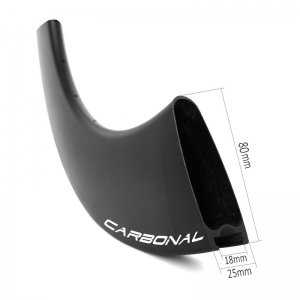

700C Road bike 18mm internal width clincher rims:

Key points: Road / 18mm internal / clincher (tubeless ready) / tire size: 21C-38C recommended.

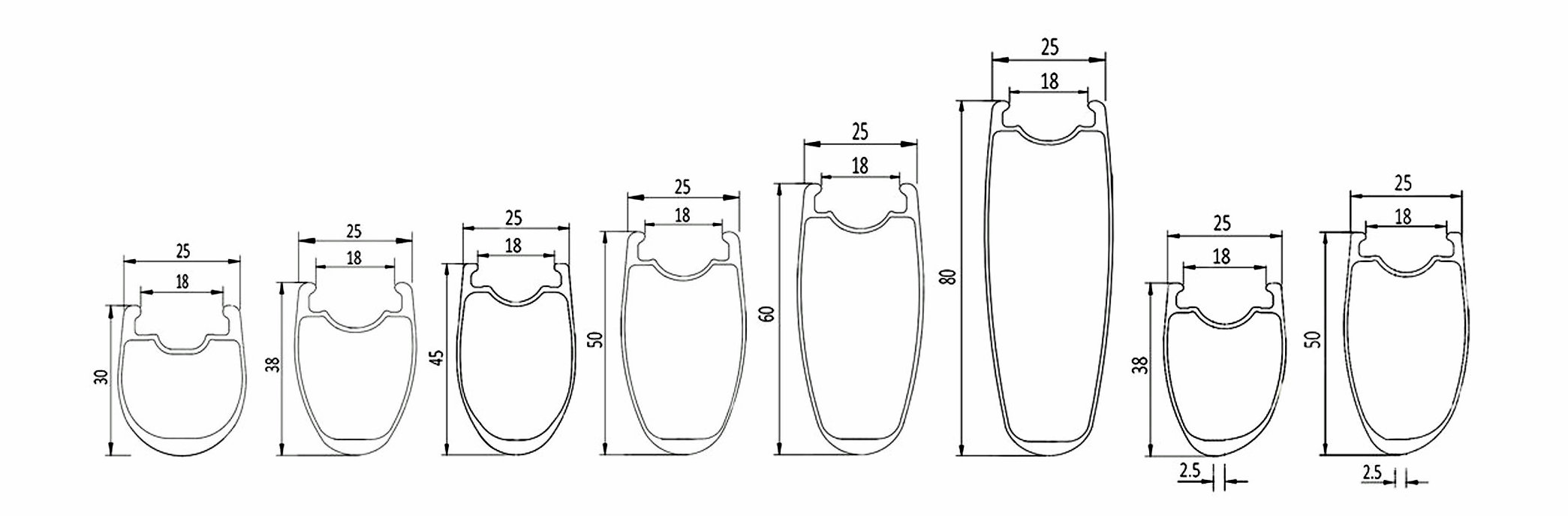

18mm internal wdith road bike clincher rims

Depth
30mm
38mm
45mm
50mm
60mm
80mm
38mm
50mm
Item
D18-30
D18-38
D18-45
D18-50
D18-60
D18-80
D18-38X
D18-50X
Weight
360g
400g
430g
450g
520g
660g
400g
450g
ERD
585mm
569mm
555mm
545mm
525mm
485mm
569mm
545mm

When a road bike racer is looking for perfect versatility. The new road disc brake carbon bicycle clincher rims range is the perfect answer with the best blend of lightweight, aerodynamic, high stiffness and great strength to deliver the highest possible efficiency.

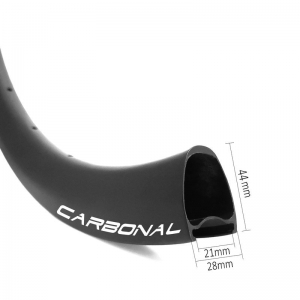

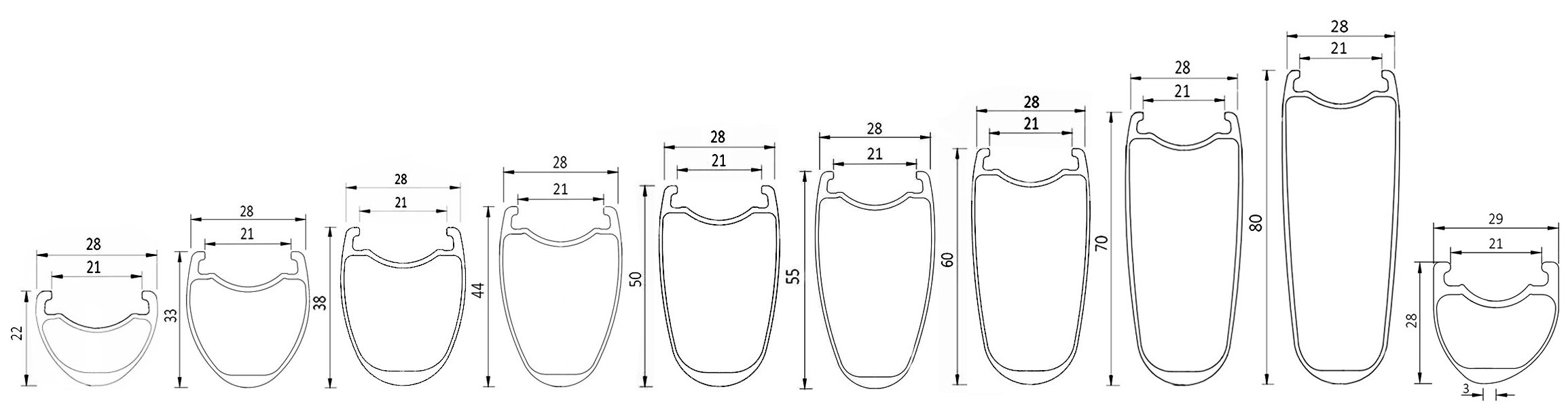

700C Road/Gravel bike 21mm internal width clincher rims:

Key points:  Road / Gravel / 21mm internal / clincher (tubeless ready) / tire size: 23C-43C recommended.


Depth
22mm
33mm
38mm
44mm
50mm
55mm
60mm
70mm
80mm
28mm
Item
D21-22
D21-33
D21-38
D21-44
D21-50
D21-55
*D21-60
D21-70
*D21-80
D21-28X
Weight (Standard)
380g
400g
410g
430g
460g
480g
530g
560g
650g
380g
Weight (SL version)
350g
370g
380g
400g
425g
450g
500g
530g
-
-
ERD
601mm
579mm
569mm
557mm
545mm
535mm
525mm
505mm
485mm
589mm

New 21mm internal width and available 38mm / 50mm / 60mm depth rims offer a wide and stable platform for everything from road bike to gravel bike tires. Now we have added 22mm / 33mm / 44mm / 55mm / 70mm / 80mm / 28mm (asymmetrical) depths, to provide you with more options.


***Rims D21-60 / D21-80 are sold exclusively by a customer in the UK. If you are from the UK, we are temporarily unable to provide this model for you, please understand!

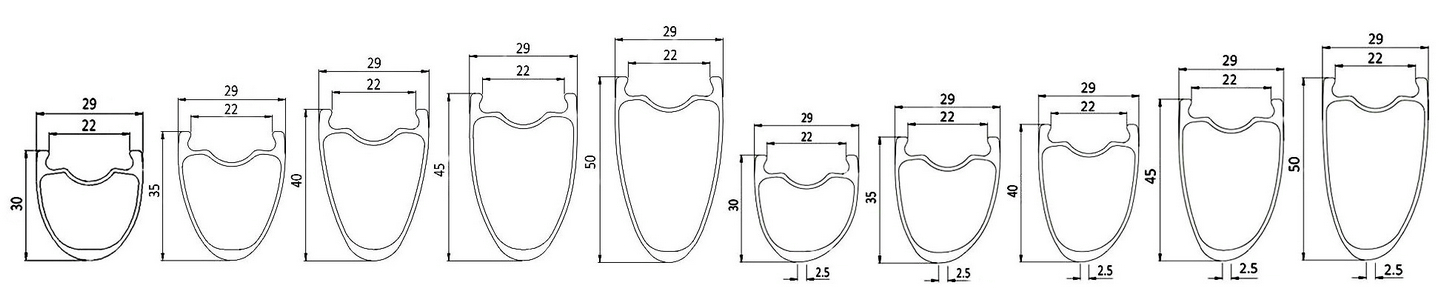

700C Road/CX/Gravel bike 22mm internal width clincher rims:

Key points:  Road / CX / Gravel / 22mm internal / clincher (tubeless ready) / asymmetrical / tire size: 23C-50C recommended.

22mm internal width, clincher, 700c rims

Depth
30mm
35mm
40mm
45mm
50mm
30mm
35mm
40mm
45mm
50mm
Item
D22-30
D22-35
D22-40
D22-45
D22-50
D22-30X
D22-35X
D22-40X
D22-45X
D22-50X
Weight
360g
375g
390g
405g
425g
360g
375g
390g
405g
425g
ERD
585mm
575mm
565mm
555mm
545mm
585mm
575mm
565mm
555mm
545mm


With a hooked bead and an internal width of 22mm, these rims can run anything from the super low presures for gravel, right up to high pressure when the ride turns to pavement. Available both symmetric and asymmetric rim profiles, and keeping the internal rim width at 22mm, means that you don't lose compatibility with thinner 25mm tyres, or even 23mm. It delivers on performance, handling, durable...pretty much everything really.


700C CX/Gravel bike 24mm internal width clincher rims:

Key points:  Cyclocross / Gravel / 24mm internal / clincher (tubeless ready) / tire size: 27C-50C recommended.

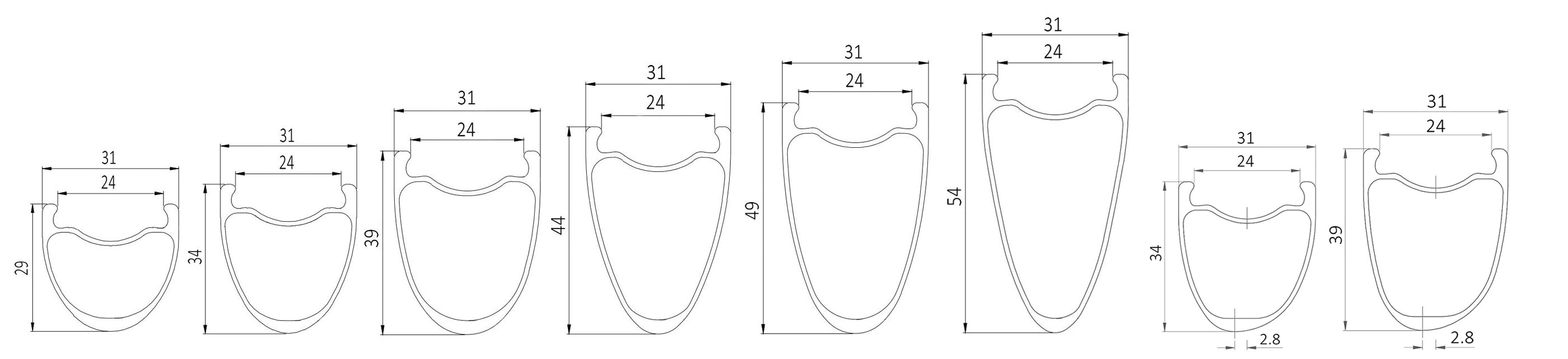

700c gravel cyclocross bike carbon rims profile

Depth
29mm
34mm
39mm
44mm
49mm
54mm
34mm
39mm
Item
D24-29
D24-34
D24-39
D24-44
D24-49
D24-54
D24-34X
D24-39X
Weight
370g
390g
410g
420g
440g
460g
390g
410g
ERD
587mm
577mm
567mm
557mm
547mm
537mm
577mm
567mm

700C Road/CX/Gravel bike 22mm/24mm / 25mm internal width HOOKLESS rims:

Key points:  Road / CX / Gravel / Hookless (tubeless ready) / tire size: 23C-50C recommended.

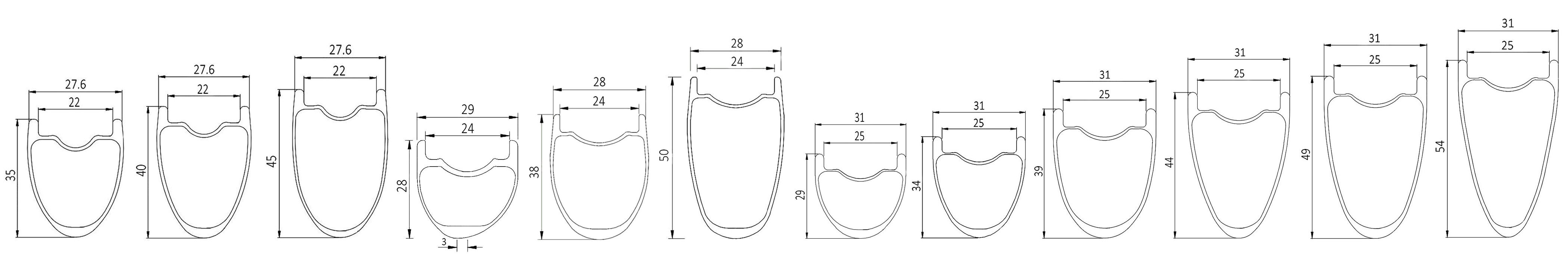

Carbonal 700c hookless carbon rim for road gravel bike

Inner width
22mm
22mm
22mm
24mm
24mm
24mm
25mm
25mm
25mm
25mm
25mm
25mm
Depth
35mm
40mm
45mm
28mm
38mm
50mm
29mm
34mm
39mm
44mm
49mm
54mm
Item
D22-35H
D22-40H
D22-45H
D24-28HX
D24-38H
D24-50H
D25-29H
D25-34H
D25-39H
D25-44H
D25-49H
D25-54H
Weight
395g
410g
430g
350g
380g
440g
370g
390g
410g
420g
440g
460g
ERD
575mm
565mm
555mm
589mm
569mm
545mm
587mm
577mm
567mm
557mm
547mm
537mm

700C CX/Gravel bike 29mm internal width clincher rims:

Key points: 700c (29") / Gravel / CX / 29mm internal / Clincher (tubeless ready) / tire size: 35C-55C recommended.

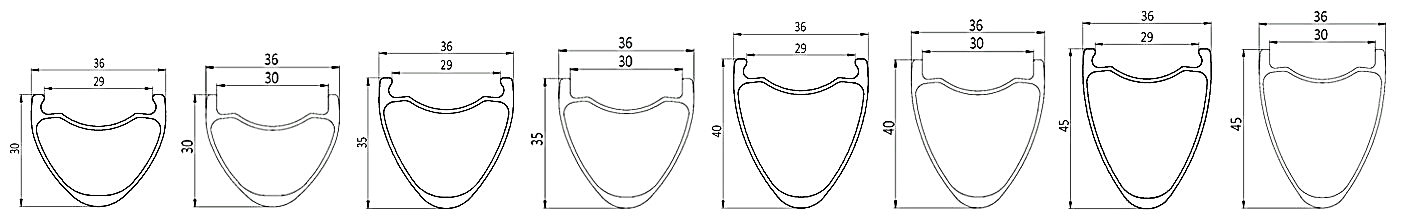

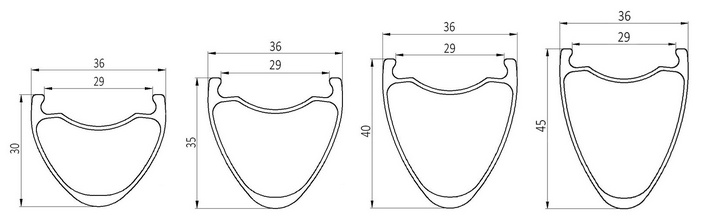

700c gravel bike 29mm internal width wheel rims profile

Depth
30mm
35mm
40mm
45mm
Item
D29-30
D29-35
D29-40
D29-45
Weight
420g
435g
450g
465g
ERD
585mm
575mm
565mm
555mm


650b Road/CX/Gravel bike 22mm/ 24mm / 25mm internal width Clincher & HOOKLESS rims:

Key points:  650b (27.5") / Road / CX / Gravel / Hookless (tubeless ready) / tire size: 23C-50C recommended.

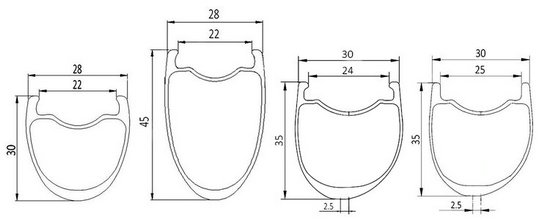

650b gravel bike carbon rim profiles

Inner width
22mm
22mm
24mm
25mm
Depth
30mm
45mm
35mm
35mm
Item
D22-30b
D22-45b
D24-35X
D25-35HX
Weight
360g
390g
360g
350g
ERD
547mm
517mm
537mm
537mm

The advantage of disc brake clincher rims:

*Constructed with premium Toray T700 & T800 carbon fiber, super lightweight;

*Aerodynamic profile design;

*Easy tire mount and tubeless ready;

*5 years warranty.
