Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-39, weight 380g, ERD 567mm. Featuring an impressive 32mm inner width, the D32-39 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
D21-70Size:
700CMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
530g±20ERD:
505mmInner width:
21mmOuter width:
28mmDepth:
70mmMax spoke tension:
140kgfMax weight limit:
135kgs

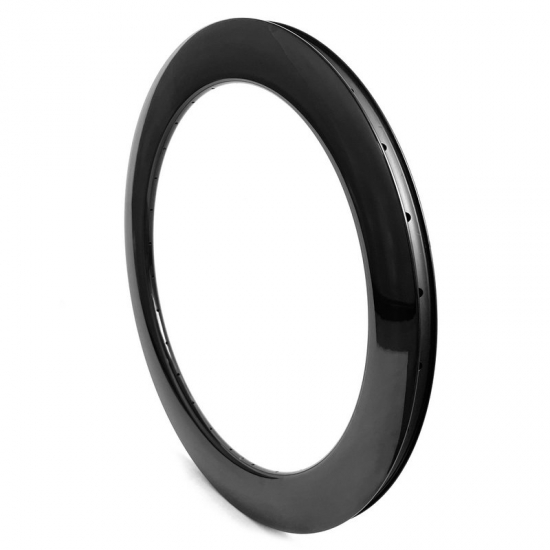

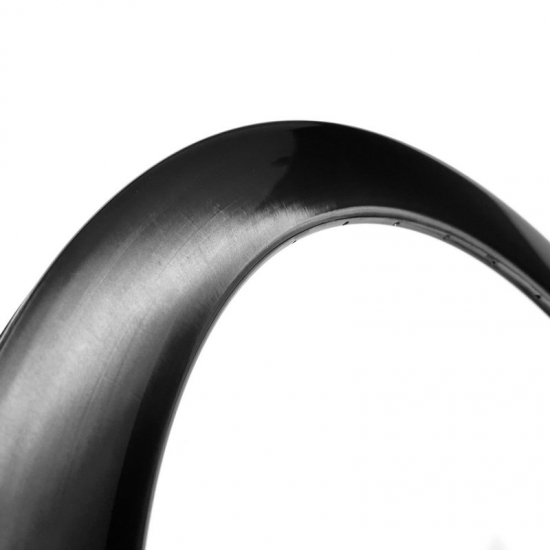

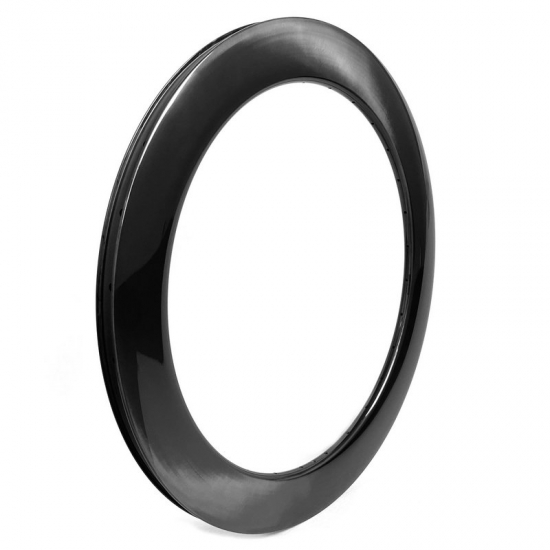

Product Item: 700C disc carbon bike rim 21mm internal width 70mm deep clincher
Featuring a wide 21mm internal rim width and an incredibly aerodynamic 70mm depth, this disc rim is perfect partner for your time-trial, triathlon, or crit racing bike.
Specification:
|
Item: |
D21-70 |
Use: |
road |
|
Rim type: |
700C clincher - disc brake |
Material: |
Toray T700 & T800 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
530g±20 |
|

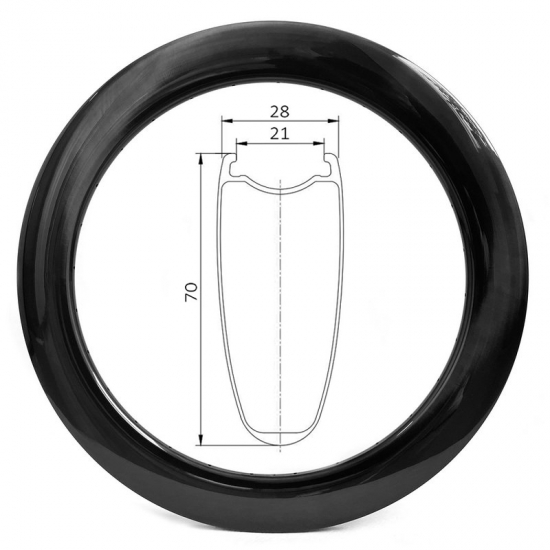

External/Internal width: |
28mm / 21mm |
ERD: |
505mm |
|
Depth: |
70mm |
Max weight limit: |
135kgs |
|
Weave: |
UD, 3k twill |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max tire pressure: |
125psi (recommended max) |
|
Decal: |
Customized |
Standard: |
EN standard |
|
TG resin temperature: |
130°C |
Warranty: |
5 years |
Features
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
Aerodynamic 38mm deep bicycle disc brake wheel rim tubeless compatible
Item D18-38, weight 390g, ERD 569mm. This road 38mm deep bicycle disc brake wheel rim is 25mm width, wide u shape rim profile offered improved aerodynamics, and toray T800 carbon be used to make this rim stronger, lighter and stiffer for road disc brake wheels.
Carbon rim 700c clincher 45mm deep U shape for disc brake wheel
Item D18-45, weight 430g, ERD 555mm. U aerodynamic shape profile and 25mm track width makes this 700c road clincher rim better handling on corners and descents, durable for a variety of terrain. It is your best choice for a light road disc brake wheel.
Light 700c road bike 30mm deep 18mm wide tubeless disc wheel rim
Item D18-30, weight 360g, ERD 586. Wider but lower profile, constructed with premium toray T700 and T800 carbon fiber, these 700c road disc wheel rims are super lightweight and stiffness, perfect versatility.
700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready
Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
700c disc carbon bike rim 21mm internal width 22mm deep clincher
Item D21-22,weight 350g/ 380g, ERD 601mm. Featuring a wide 21mm internal rim width,this tubeless ready 22mm deep bike clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
700c road disc brake 50mm deep clincher tubeless carbon rim
Item D18-50, weight 450g, ERD 545mm. 700c road disc brake 50mm deep U shape profile makes this rim pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, and also cyclocross riding.
D30-30H gravel bike disc 30mm wide 30mm deep hookless carbon rim
Item D30-30H, weight 420g, ERD 585mm. The D30 series represents our broadest gravel-oriented hookless carbon rim to date. The hookless rim boasts an even straighter bead and conspicuously smoother side walls, facilitating the tire's complete contact with the rim walls.
U shape 60mm deep 18mm wide clincher tubeless carbon disc rim
Item D18-60, weight 500g, ERD 525mm. U aerodynamic shape makes this carbon 60mm deep high profile and 18mm internal width disc brake clincher tubeless rim lightweight but still stiff. Made for winning in sprint finishes, time trials, triathlons and circuit races.
