Quality control

2018-06-05

Need complete QC system to make sure quality of every hand made product. Bar code on every rim to work with our own ERP can do the job.


  • Check on in-coming materials. Need great carbon fiber prepreg with correct weight, fiber grade, resin, thickness and even packing.


  • Check the cut prepreg sizing. Every worker will get exactly the amount they are assigned every day.


  • Check weight, sizing, hole count and code after lamination.


  • Check mold tools before getting molded.


  • Check rim quality, sizing and appearance after molding.

carbon rim quality check reference


carbon rim quality control label



  • Check to make sure no residue inside the rim, correct hole drilling, roundness and flatness after machining.

carbon rim flatness check


  • Check flatness, smoothness and sizing after sanding.

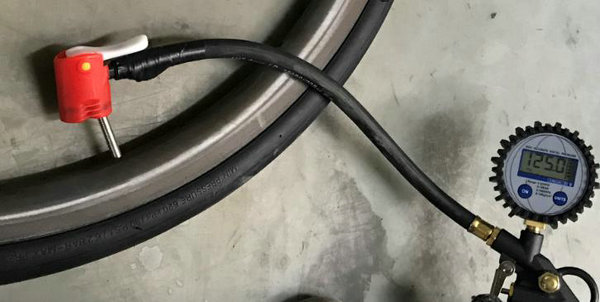

carbon rim tire pressure test

carbon rims sanding check records


  • Check rim apprearance after painting.

bike carbon rim painting check records


  • Check decals since it demonstrates your brand.

carbon rims decal checking


  • All 30 QC items for one rim get recorded.


  • QC data not only tells a rim is OK or NG, but also let you know what is going on in our production line. The data is our great treasure.
