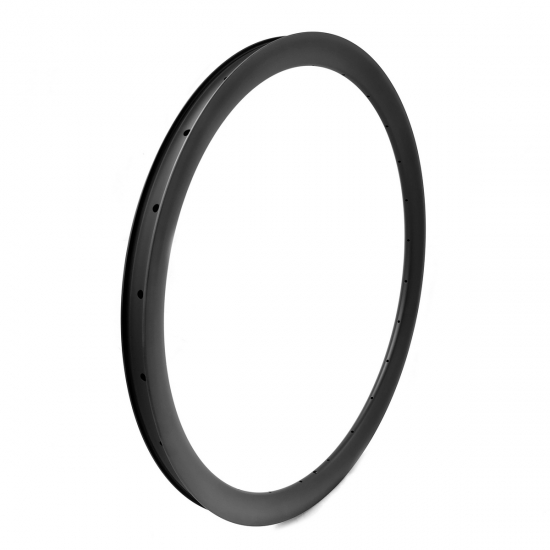

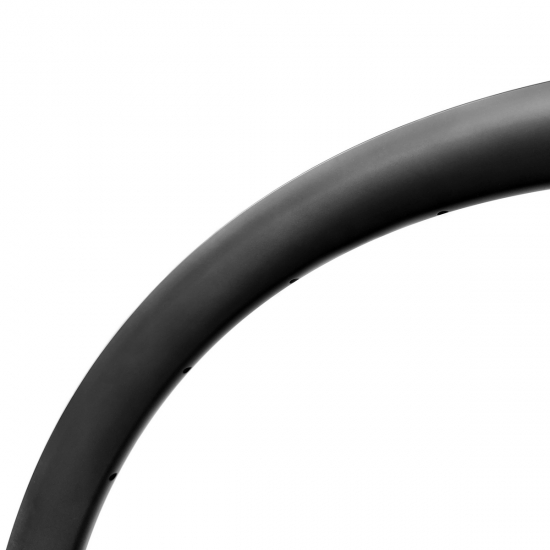

D30-35H gravel bike disc 30mm wide 35mm deep hookless carbon rim

Item D30-35H, weight 435g, ERD 575mm. The D30 series represents our broadest gravel-oriented hookless carbon rim to date. The hookless rim boasts an even straighter bead and conspicuously smoother side walls, facilitating the tire's complete contact with the rim walls.
  • Item No.:

    D30-35H
  • Size:

    700C/29er
  • Material:

    Toray T700 & T800 premium carbon fiber
  • Type:

    Hookless (tubeless ready)
  • Brake:

    disc brake
  • Weight:

    435g±15
  • ERD:

    575mm
  • Inner width:

    30mm
  • Outer width:

    36mm
  • Depth:

    35mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    120kgs / 265lbs
  • description

Product Item: D30-30H gravel bike disc 30mm wide 30mm deep hookless carbon rim



The D30 series represents our broadest gravel-oriented hookless carbon rim to date. The hookless rim boasts an even straighter bead and conspicuously smoother side walls, facilitating the tire's complete contact with the rim walls. This renders it more durable and endows it with enhanced impact resistance. The D30-35H rim, featuring a tubeless ready platform, has an internal width of 30mm, suitable for wider gravel tires ranging from 35 to 50c and beyond, thereby fulfilling the requirements of elite gravel riders, racers, and enthusiasts seeking marginal gains.


Rim Specs


 Rim Model  D30-35H
 Material  Toray T700 & T800 premium carbon fiber
 Size  29"/700C (ETRTO 622mm)
 Intended Use  Gravel/CX
 Bead Type  Hookless
 Tubeless Ready  Yes
 Inner/Outer Width  30mm/36mm
 Depth  35mm
 ERD  575mm (including nipple head dimension)
 Rim Weight  435g±15
 Offset  0mm (symmetric)
 Max Cyclist Weight (on flat ground)  120kgs 265lbs
 Rim Weave  UD, 3k, 3k twill, 6k, Marble
 Rim Finish  Matte, Glossy, Paintless
 Spoke Hole Angel  ±7°
 Spoke Hole Diameter
 2.5mm, 4.5mm or customized
 Access Hole Diameter  8.5mm
 Valve Hole Diameter  6.5mm
 Spoke Tension 110~130kgf (recommended)
 Max Tire Pressure  55psi /3.79bar (recommended max)
 Recommended Tire Width  35C-65C
 Decal / Paint  None or Custom graphics
 Warranty  5 years


All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.


Rim Features


  • Born for gravel riders . It's tubeless ready, compatible very wide tire for comfortable ride.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  •  Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.

Warranty


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


More about Carbonal carbon rim Quality Control.
