Item No.:
MX780Size:
27.5 inchMaterial:
full carbon Toray T700Type:
Beadless (tubeless ready)Weight:
615g±20ERD:
545mmInner width:
74mmOuter width:
80mmDepth:
28mmMax spoke tension:
140kgfMax weight limit:
120kgsProduct Item: Beadless carbon fiber 80mm wide 27.5 inch fatbike rim tubeless ready

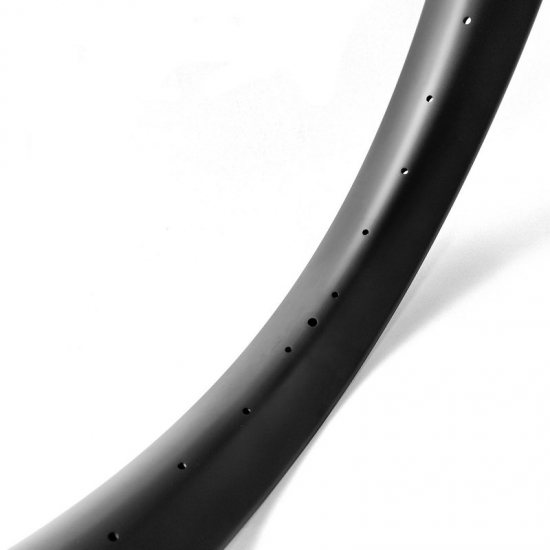

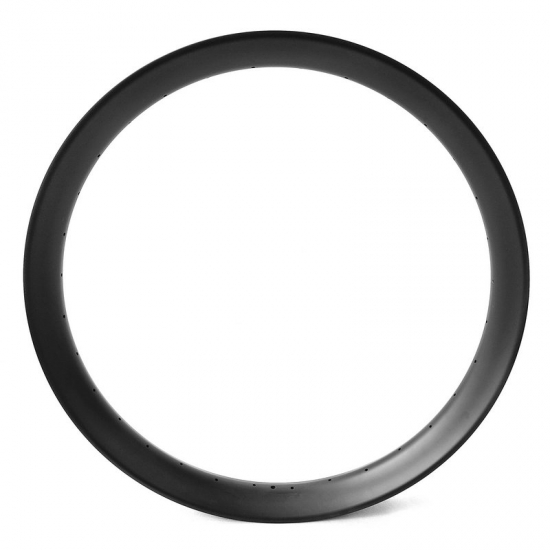

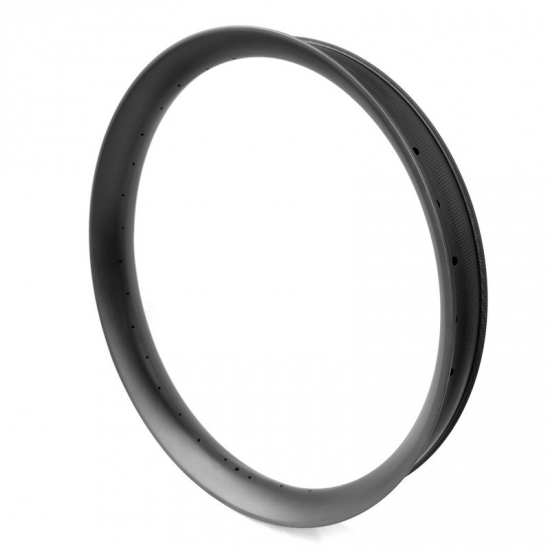

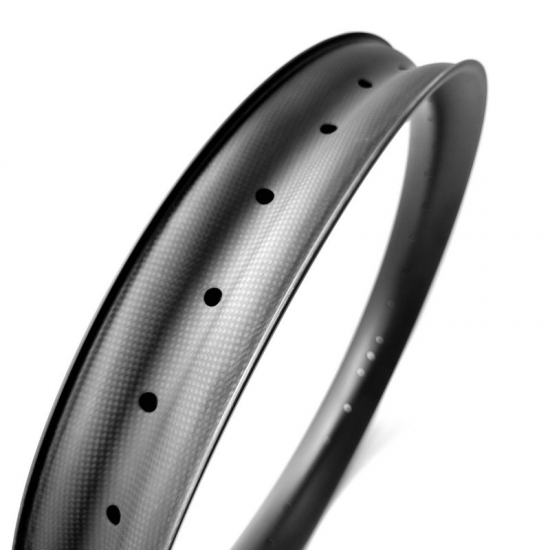

This 27.5 inch carbon fat bike rim 80mm external wide is durable with double wall design for snow, sand or single track riding. The 28mm deep section provides extra rigidity for more aggressive riders.
Specification:
|
Item: |
MX780 |
Use: |
snow, sand or single track |
|
Rim type: |
27.5" hookless (tubeless ready) |
Material: |
Toray T700 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
615g±20 |
|

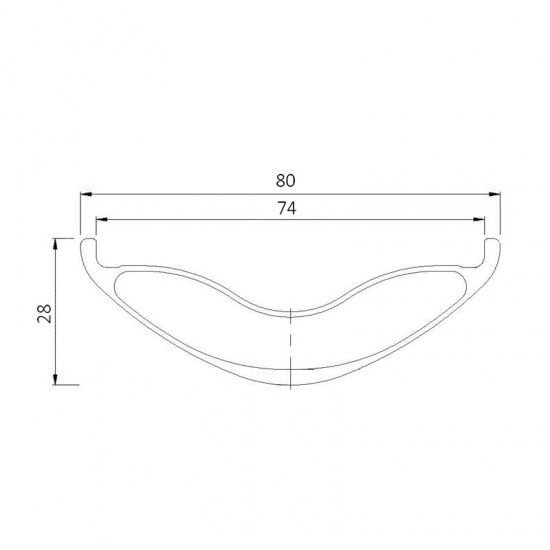

External/Internal width: |
80mm / 74mm |
ERD: |
545mm |
|
Depth: |
28mm |
Weave: |
UD / 3K / 12K |
|
Weight limit: |
120kgs |
Finish: |
Matte / Gloss |
|
Spoke hole count: |
32 holes, (±3mm offset drill) |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm or customized |
Valve hole diameter: |
6.5mm (presta) or 8.5mm (schrader) |
|
Spoke hole angle: |
±6° |
Max spoke tension: |
140kgf (recommended 110~130kgf） |
|
Tire size: |
3.8"~ 5.5" |
Max tire pressure: |
25psi / 1.75bar |
|
Decal: |
Customized |
Standard: |
EN standard |
