Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
ChrisKing-R45D-DBHub:
Chris King R45D stainless steel or ceramic hubSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal disc brake carbon rimsLacing:
F - 2 cross, R - 2 crossHole:
24 / 24Brake:
Disc brake center lockLevel:
Pro RacingStandard:

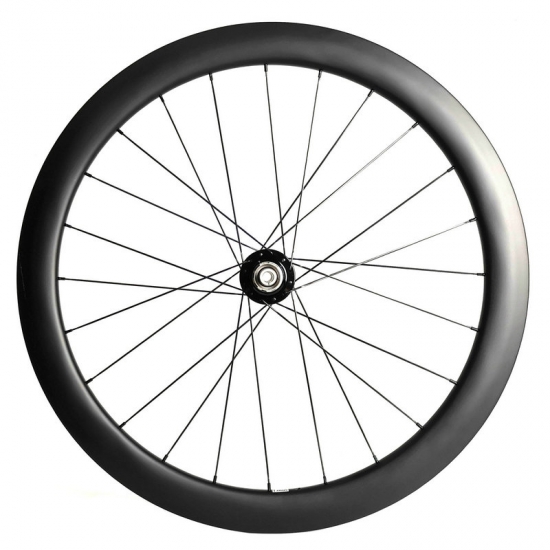

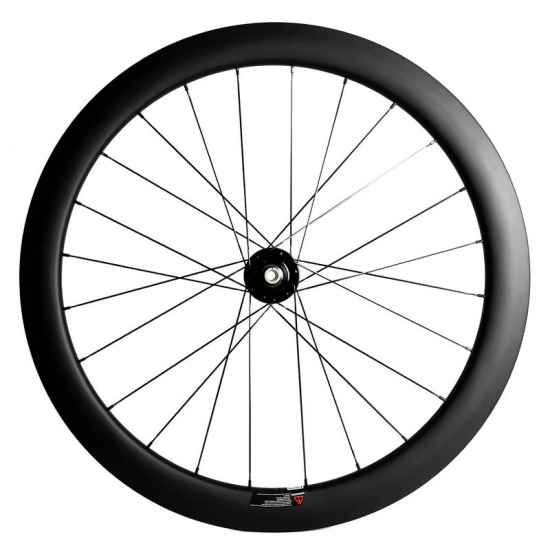

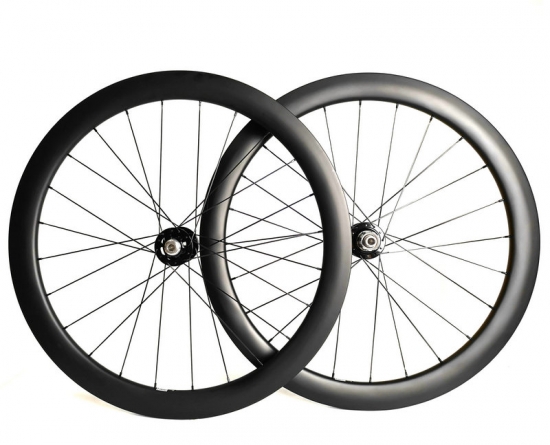

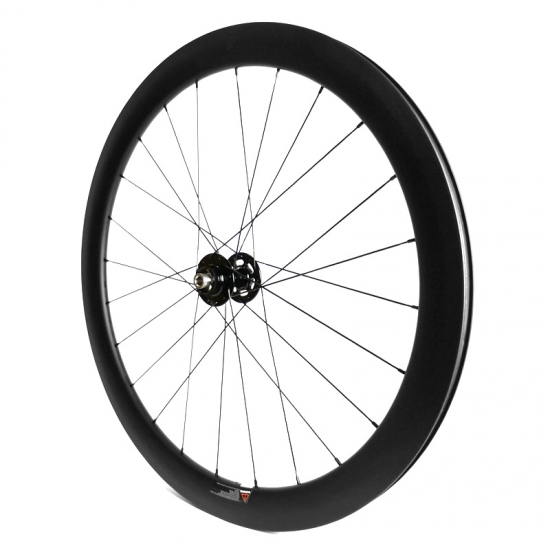

EN standardProduct Item: Chris King R45D hub + Sapim CX-Ray spoke custom disc road carbon wheels

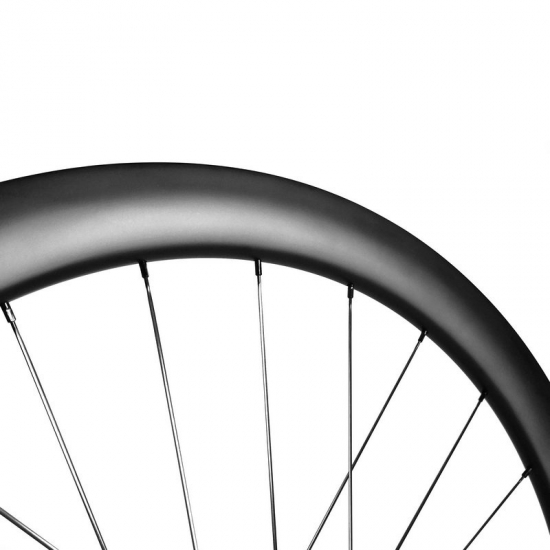

Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.
5 years warranty.

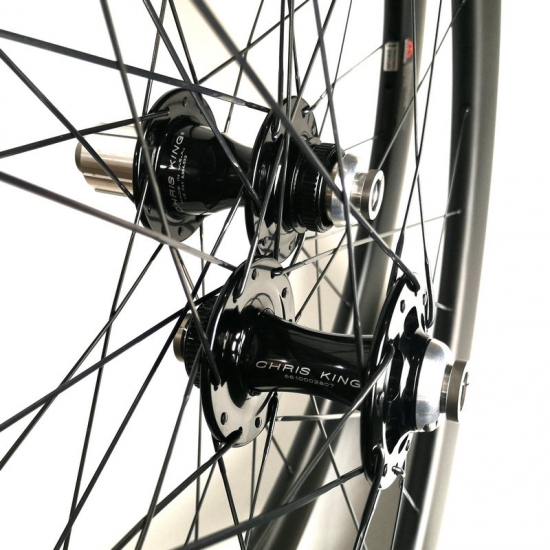

Chris King R45D stainless steel or ceramic hub;
Size-axle: Front - 100x12mm, Rear - 142x12mm;
Driveshell: Shimano Road 11S / Sram XDR;
Brake system: Disc center lock;
Hole: Front 24, Rear 24;
Color: black.
Spoke:
Sapim CX-Ray spoke, J bend;
Nipple:
Sapim alloy, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 408g/set;
Spokes + nipples: 218g;
Weight without rims: 626g.
Rim model vs Complete wheel weight:
|
Model |
Rim type - depth x width |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max rider weight |
|
DT30S |
700c tubular - 30 x 25mm |
290g |
1206g |
120kgs |
|
DT38S |
700c tubular - 38 x 25mm |
330g |
1286g |
120kgs |
|
DT38D |
700c tubular - 38 x 25mm- asymmetric |
330g |
1286g |
120kgs |
|
DT50S |
700c tubular - 50 x 25mm |
360g |
1346g |
125kgs |
|
DT50D |
700c tubular - 50 x 25mm - asymmetric |
360g |
1346g |
125kgs |
|
DT60S |
700c tubular - 60 x 25mm |
430g |
1486g |
130kgs |
|
DT88S |
700c tubular - 88 x 25mm |
530g |
1686g |
135kgs |
|
DX30S |
700c clincher - 30 x 25/18mm |
370g |
1366g |
120kgs |
|
DX38S |
700c clincher - 38 x 25/18mm |
400g |
1426g |
120kgs |
|
DX38D |
700c clincher - 38 x 25/18mm - asymmetric |
400g |
1426g |
120kgs |
|
DX45S |
700c clincher - 45 x 25/18mm |
430g |
1486g |
125kgs |
|
DX50S |
700c clincher - 50 x 25/18mm |
450g |
1526g |
125kgs |
|
DX50D |
700c clincher - 50 x 25/18mm- asymmetric |
450g |
1526g |
125kgs |
|
DX60S |
700c clincher - 60 x 25/18mm |
500g |
1626g |
130kgs |
|
DX88S |
700c clincher - 88 x 25/18mm |
720g |
2066g |
135kgs |
|
DX38L |
700c clincher - 38 x 28/21mm |
410g |
1446g |
120kgs |
|
DX42L |
700c clincher - 42 x 28/21mm |
430g |
1486g |
125kgs |
|
DX50L |
700c clincher - 50 x 28/21mm |
460g |
1546g |
125kgs |
|
DX60L |
700c clincher - 60 x 28/21mm |
530g |
1686g |
130kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road disc wheelset!
Novatec D411 & D412 hub + Pillar 1420 spoke custom road disc carbon wheels
[Disc Brake] Custom build road disc carbon wheel with Novatec D411 front and D412 rear hub + Pillar Aero X-TRA 1420 spokes & Pillar nipples. Eco Racing level, lightweight, stiff and durable, perfect for your every single ride.
Chris King R45 hub + Sapim CX-Ray spoke custom road carbon wheels
[Rim Brake] Custom build road bicycle carbon wheel with Chris King R45 hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, lightweight, performance, will get your power to the ground fast, provide unmatched engagement.
Novatec 291/482SL hub + Pillar 1420 spoke custom road bike carbon wheels
[Rim Brake] Custom hand built road carbon wheel with Novatec A291SB-SL front and F482SB-SL rear hub + Pillar aero 1420 spokes & Pillar nipples. Eco Racing level, the most affordable performance carbon road bicycle wheelset.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
[Disc Brake] Custom build disc road bike carbon wheel with new DT Swiss 350 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road bike carbon wheels
[Rim Brake] Custom hand built road bicycle carbon wheels with DT Swiss 240s straight pull hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, extremely lightweight and extremely durable carbon wheel for your road bike.
DT Swiss 240s Classic hub + Sapim CX-Ray spoke custom road carbon wheels
[Rim Brake] Custom hand built road bicycle carbon wheels with DT Swiss 240s classic hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, perfect transmission of your power and the reliability allowing you to focus on the ride.
DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
[Disc Brake] Custom build disc bike carbon wheel with DT Swiss 240s straight pull hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, perfect transmission of your power and the reliability allowing you to focus on the ride.
DT Swiss 180 hub + Sapim CX-Ray spoke custom road bike carbon wheels
[Rim Brake] Custom build road bike carbon wheel with DT Swiss 180 EXP hub + Aero CX-Ray Sapim spokes & nipples. Top Racing level, super-lightweight and super smooth, ready for the demands of the world's fastest racers.
