Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
DetailsItem D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
DetailsItem D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.
DetailsItem D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.
Details
Dear valued customers, We sincerely invite you and your team to attend the 2024 Taipei Cycle and visit our booth to enjoy our latest carbon fiber bicycle rims / carbon wheels and discuss new technolog...
Item No.:
DT240S-CL-RBHub:
DT Swiss 240s hub, ClassicSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal rim brake carbon rimsLacing:
F - radial, R - drive side 2 cross, non-drive side radial.Hole:
Front 20, Rear 24Brake:
Rim brakeLevel:
Pro RacingStandard:

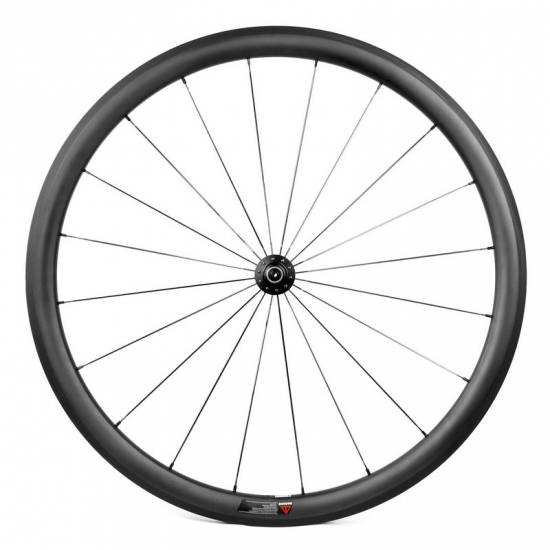

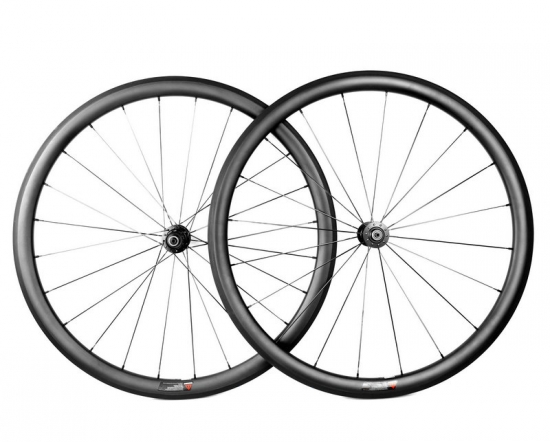

EN standardProduct Item: DT Swiss 240s Classic hub + Sapim CX-Ray spoke custom road carbon wheels
Rim:
Carbonal rim brake carbon road bike rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 year warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

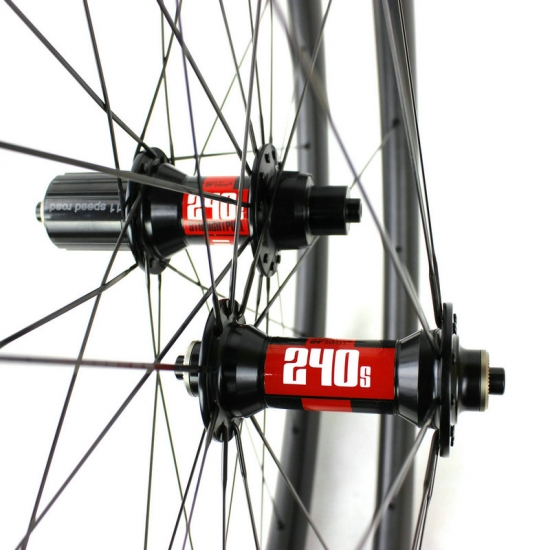

Hub:
DT Swiss 240s hub, classic (J bend);
Size - Axle: Front - 100x9mm, Rear - 130x10mm;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Cassette body: Shimano Road 11S / Sram XDR;
Brake System: non disc, rim brake;
Hole: Front - 20, Rear - 24;
Color: black.
Spoke:
Sapim CX-Ray spokes, black.
Nipple:
Sapim alloy nipples, black or red.
Lacing:
Front wheel - radial;
Rear wheel - drive side 2 cross, non-drive side radial.
Extra: Spare spokes and nipples, skewers and brake pads included.
Weight:
Hub: 320g/set;
Spokes + nipples: 200g;
Weight without rims: 520g.
Rim model vs Complete wheel weight:
Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
RX30SH
700c clincher 30x25mm
430g
1380g
115kgs
RX38SH
700c clincher 38x25mm
470g
1460g
120kgs
RX38DH
700c clincher 38x25mm- asymmetric
470g
1460g
120kgs
RX45SH
700c clincher 45x25mm
480g
1480g
125kgs
RX50SH
700c clincher 50x25mm
500g
1520g
125kgs
RX50DH
700c clincher 50x25mm - asymmetric
500g
1520g
125kgs
RX60SH
700c clincher 60x25mm
560g
1640g
130kgs
RX88SH
700c clincher 88x25mm
720g
1960g
135kgs
RX38L
700c clincher 38x28mm
480g
1480g
120kgs
RX50L
700c clincher 50x28mm
510g
1540g
125kgs
RT30S
700c tubular 30x25mm
310g
1140g
115kgs
RT38S
700c tubular 38x25mm
360g
1240g
120kgs
RT38D
700c tubular 38x25mm- asymmetric
360g
1240g
120kgs
RT50S
700c tubular 50x25mm
410g
1340g
125kgs
RT50D
700c tubular 50x25mm- asymmetric
410g
1340g
125kgs
RT60S
700c tubular 60x25mm
470g
1460g
130kgs
RT88S
700c tubular 88x25mm
530g
1580g
135kgs
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples, carbon-specific brake pads;
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite carbon rim model, leave a message below to get a best quote for your next carbon road wheelset!
Novatec D411 & D412 hub + Pillar 1420 spoke custom road disc carbon wheels
[Disc Brake] Custom build road disc carbon wheel with Novatec D411 front and D412 rear hub + Pillar Aero X-TRA 1420 spokes & Pillar nipples. Eco Racing level, lightweight, stiff and durable, perfect for your every single ride.
Chris King R45 hub + Sapim CX-Ray spoke custom road carbon wheels
[Rim Brake] Custom build road bicycle carbon wheel with Chris King R45 hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, lightweight, performance, will get your power to the ground fast, provide unmatched engagement.
Novatec 291/482SL hub + Pillar 1420 spoke custom road bike carbon wheels
[Rim Brake] Custom hand built road carbon wheel with Novatec A291SB-SL front and F482SB-SL rear hub + Pillar aero 1420 spokes & Pillar nipples. Eco Racing level, the most affordable performance carbon road bicycle wheelset.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
[Disc Brake] Custom build disc road bike carbon wheel with new DT Swiss 350 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road bike carbon wheels
[Rim Brake] Custom hand built road bicycle carbon wheels with DT Swiss 240s straight pull hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, extremely lightweight and extremely durable carbon wheel for your road bike.
DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
[Disc Brake] Custom build disc bike carbon wheel with DT Swiss 240s straight pull hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, perfect transmission of your power and the reliability allowing you to focus on the ride.
DT Swiss 180 hub + Sapim CX-Ray spoke custom road bike carbon wheels
[Rim Brake] Custom build road bike carbon wheel with DT Swiss 180 EXP hub + Aero CX-Ray Sapim spokes & nipples. Top Racing level, super-lightweight and super smooth, ready for the demands of the world's fastest racers.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road bicycle wheelset
[Rim Brake] Custom hand built road bicycle carbon wheels with DT Swiss 350 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
