700C road bike 25mm wide U shape 30mm deep clincher tubeless ready rim

Item R18-30 (RX30SH), weight 430g, ERD 585mm. This 30mm deep clincher rim is the lightest rim in 25mm wide rim brake clincher range. Wider but lower profile makes this rim unmatched aerodynamic, it has the lowest possible cross wind sensitivity.
  • Item No.:

    R18-30 (RX30SH)
  • Size:

    700C
  • Material:

    full carbon Toray T700
  • Type:

    clincher (tubeless ready)
  • Brake:

    rim brake
  • Weight:

    430g±20
  • ERD:

    585mm
  • Inner width:

    18mm
  • Outer width:

    25mm
  • Depth:

    30mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    115kgs / 254lbs
  • description

Product Item: 700C road bike 25mm wide  U shape 30mm deep clincher tubeless ready rim

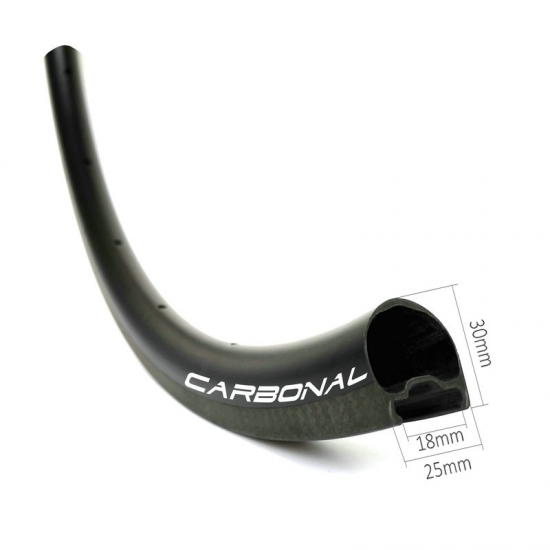

carbon 30mm clincher tubeless rim profile

This 30mm deep clincher rim is the lightest rim in our 25mm wide rim brake clincher range. U shaped and wider but lower profile makes this rim unmatched aerodynamic, it has the lowest possible cross wind sensitivity.


Rim Specifications:

 Rim Model
 R18-30 (RX30SH)
 Material
 Toray T700 premium carbon fiber
 Size
 700C (ETRTO 622mm)
 Intended Use
 Road (rim brake*)
 High TG resin temperature
 255°C
 Bead Type
 Clincher
 Tubeless Ready
 Yes
 Inner/Outer Width
 18mm/25mm
 Depth
 30mm
 ERD
 585mm (including nipple head dimension)
 Rim Weight
 430g±20
 Offset
 0mm (symmetric)
 Max Cyclist Weight (on flat ground)
 115kgs / 254lbs
 Rim Weave
 UD, 3k twill
 Rim Finish
 Matte, Glossy
 Spoke Hole Angel
  ±7°
 Spoke Hole Diameter
 2.5mm, 4.5mm or customized
 Access Hole Diameter
 8.5mm
 Valve Hole Diameter
 6.5mm
 Max Spoke Tension
 140kgf (recommended 110~130kgf)
 Max Tire Pressure
 125psi / 8.62bar (recommended max)
 Recommended Tire Width
 21C-38C
 Decal / Paint
 None or Custom graphics
 Warranty
 5 years


All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, please feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.

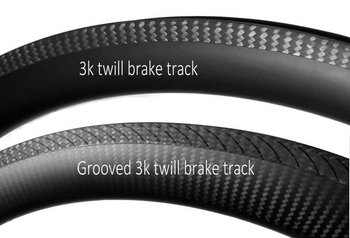

*Rim brake track available in 3k twill or grooved 3k twill surface.

carbon rims with grooved 3k twill brake track


Features:

  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing, also to ensure an easy mounting and a safe tire seat on the rim.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
  • The grooved track helps to evacuate trapped moisture between the brake pad and carbon rim under wet conditions and brings more resistance under dry conditions, so a smaller force needs to be applied to the lever.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
