Carbonal bike product gallery and comments from customers worldwide
Hot Products
disc brake wheel rim

Aerodynamic 38mm deep bicycle disc brake wheel rim tubeless compatible

Item DX38S, weight 400g, ERD 569mm. This road 38mm deep bicycle disc brake wheel rim is 25mm width, wide u shape rim profile offered improved aerodynamics, and toray T800 carbon be used to make this rim stronger, lighter and stiffer for road disc brake wheels.

Details
650b bike rim

Asymmetric rim profile 29 inch mtb rims carbon hookless tubeless ready

Item MX932XC, weight 330g, ERD 595mm. This asymmetric 3mm offset 29er mtb rim balances drive and non-drive side spoke tension to create a more durable and well-balanced light mtb wheel, it's perfect upgrade for your xc mountain bike.

Details
disc brake tubular rim

Disc brake 38mm deep lightweight carbon road bicycle tubular rim

Item DT38S, weight 330g, ERD 569mm. Wider and U shape 38mm deep aero designed rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim super light, a good choice for lightweight road wheels.

Details
road disc rim

Aero road bike carbon rim 28mm wide 38mm deep clincher tubeless

Item DX38L, weight 410g, ERD 569mm. Featuring a wide 28mm external rim width, this tubeless ready 38mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.

Details
carbon rim for ebike

29 inch E-bike rim carbon 38mm wide 23.5mm depth hookless tubeless ready

Item MX938EB, weight 500g, ERD 598mm. This E-bike carbon rim with its 31mm internal width is an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes, it's the ideal choice for all eMTB.

Details
hookless gravel rim

Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike

Item GZX28, weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.

Details
disc bike rim

29er disc bike rims 27.5mm wide 38mm depth hookless for cyclocross and gravel bikes

Item GZX38, weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.

Details
gravel bike rim

29er disc bike rims 27.5mm wide 50mm depth hookless for cyclocross and gravel bikes

Item GZX50, weight 420g, ERD 545mm. The 27.5mm external and 24mm internal width 50mm road disc rim provides the perfect platform for anything from a 30C to 50C gravel, cyclocross tire and makes tubeless set up a breeze.

Details
Latest news
Carbonal produce carbon rim with different carbon fiber weaves

Carbonal produce carbon rim with different carbon fiber weaves

Update (2021-04-02): We produce carbon rim with the most popular carbon fiber weaves: UD, 3k, 3k twill, 6k and marble, and they can be in matte plain weave and glossy plain weave. So there are total 1...

DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

[Disc Brake] Custom build disc road bike carbon wheel with DT Swiss 350 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
  • Item No.:

    DT350-SP-DB
  • Hub:

    DT Swiss 350 hub, Straight pull
  • Spoke:

    Sapim CX-Ray, black
  • Nipple:

    Sapim alloy, black or red
  • Rim:

    Carbonal disc brake carbon rims
  • Lacing:

    F - 2 cross, R - 2 cross
  • Hole:

    24 / 24
  • Brake:

    Disc brake
  • Level:

    Mid Racing
  • Standard:

    EN standard
  • description

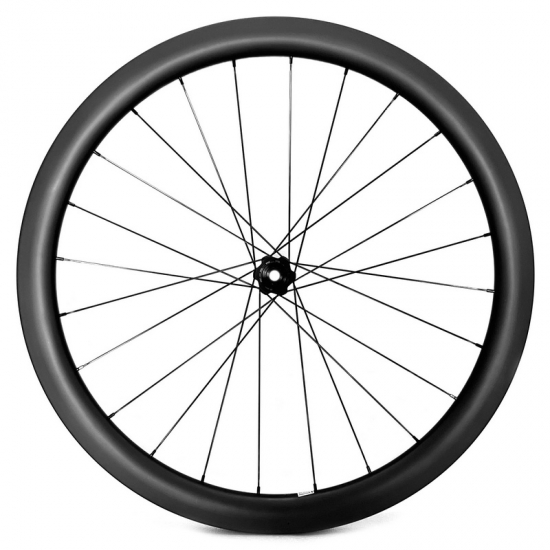

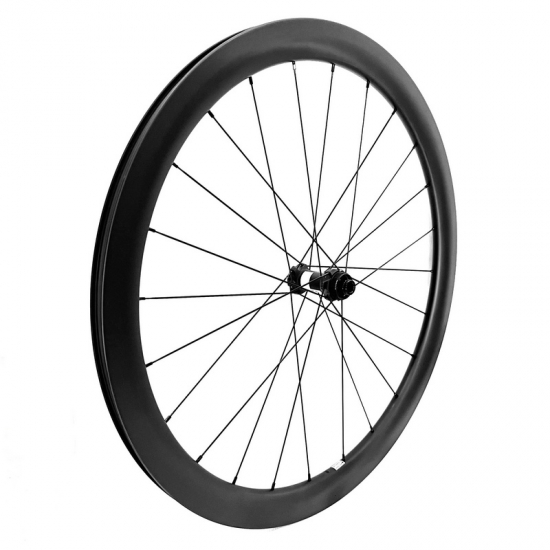

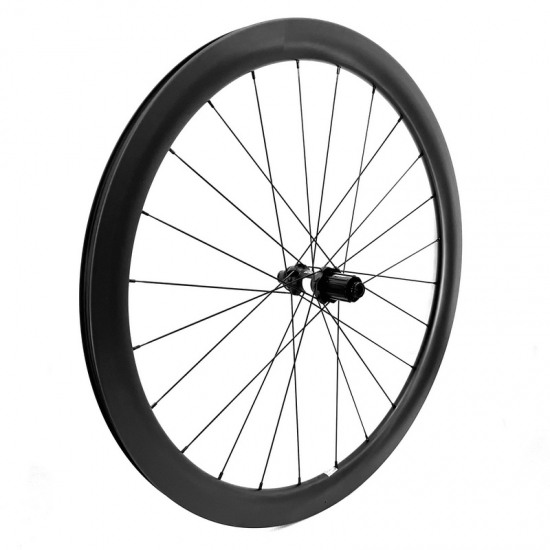

Product Item: DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

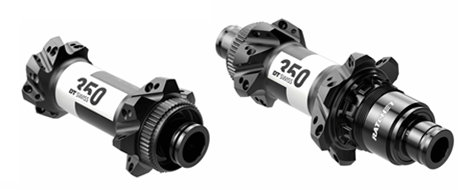

DT swiss 350 straightpull hub

DT Swiss 350 is the most affordable high performance hub available. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost. Being available in all standards and for any application, the 350 hub is for those who maybe like to ride the trails a little more than drooling over catalogs and specs.

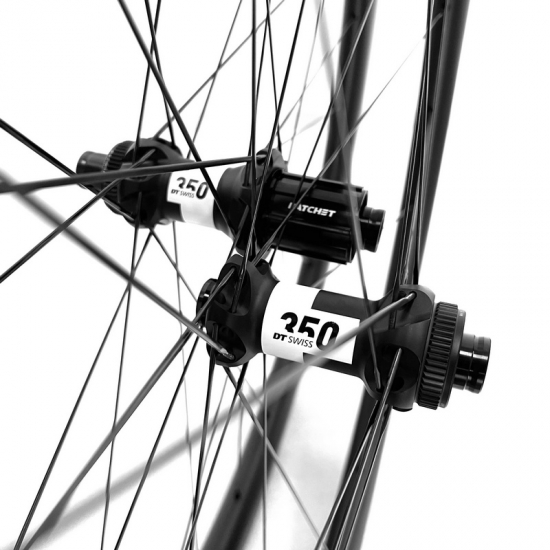

Hub:

DT Swiss 350 hub, straight pull;

Axle system: F - 12x100mm, R - 12x142mm;

Free hub system: Ratchet System 18T (optional 36T / 54T);

Cassette body: Shimano Road 11S / Sram XDR;

Brake system: Disc center lock / Disc 6 bolts;

Hole: Front 24, Rear 24;

Color: black.


Spoke:

Sapim CX-Ray Aero spokes, blade, black;


Nipple:

Sapim alloy nipples, black or red.

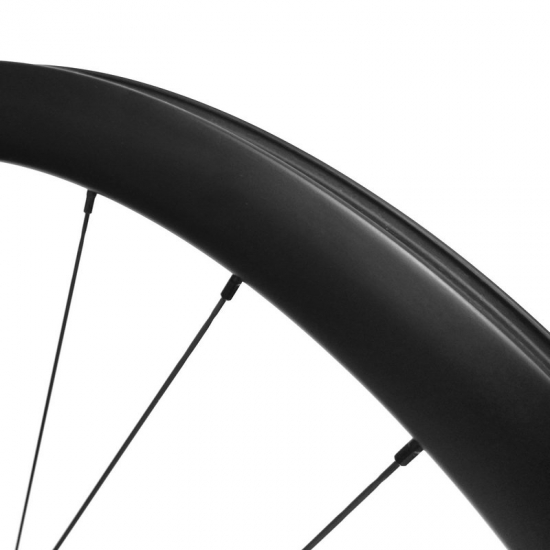

Rim:

Carbonal disc brake carbon rims tubular & clincher tubeless. With the best blend of lightweight, aerodynamic, high stiffness and great strength to deliver the highest possible efficiency.

Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.

5 years warranty.


Lacing:

Front wheel - 2 cross;

Rear wheel - 2 cross.


Weight:

Hub: 410g/set;

Spokes + nipples: 218g;

Weight without rims: 628g.


Rim model vs Complete wheel weight:

Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max rider weight
DX30S
700c clincher 30x25mm
370g
1368g
115kgs
DX38S
700c clincher 38x25mm
400g
1428g
120kgs
DX38D
700c clincher 38x25mm- asymmetric
400g
1428g
120kgs
DX45S
700c clincher 45x25mm
430g
1488g
125kgs
DX50S
700c clincher 50x25mm
450g
1528g
125kgs
DX50D
700c clincher 50x25mm - asymmetric
450g
1528g
125kgs
DX60S
700c clincher 60x25mm
500g
1628g
130kgs
DX88S
700c clincher 88x25mm
680g
1988g
135kgs
DX38L
700c clincher 38x28mm
410g
1448g
120kgs
DX42L
700c clincher 42x28mm
430g
1488g
125kgs
DX50L
700c clincher 50x28mm
460g
1548g
125kgs
DX60L
700c clincher 60x28mm
530g
1688g
130kgs
DT30S
700c tubular 30x25mm
290g
1208g
115kgs
DT38S
700c tubular 38x25mm
330g
1288g
120kgs
DT38D
700c tubular 38x25mm- asymmetric
330g
1288g
120kgs
DT50S
700c tubular 50x25mm
360g
1348g
125kgs
DT50D
700c tubular 50x25mm- asymmetric
360g
1348g
125kgs
DT60S
700c tubular 60x25mm
430g
1488g
130kgs
DT88S
700c tubular 88x25mm
530g
1688g
135kgs


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Choose your favorite rim model, leave a message below with the rim model number (such as DX30S) to get a best quote for your next carbon road wheels!
