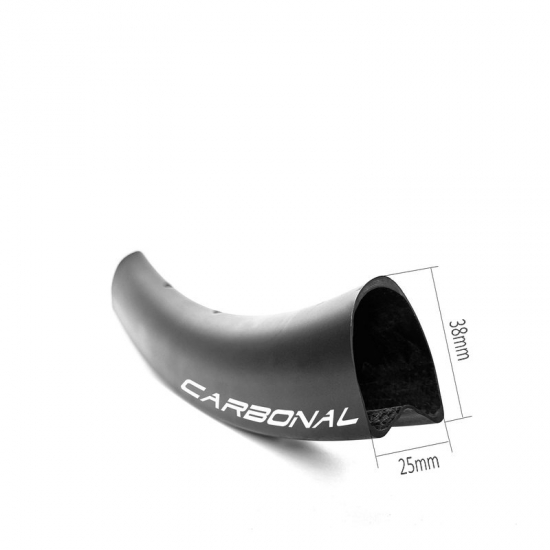

Asymmetric 2.5mm offset disc road carbon 38mm deep tubular rim

Item DT38D, weight 330g / 370g, ERD 569mm. Constructed with premium Toray T700 & T800 carbon fiber, makes this asymmetric 38mm deep disc road tubular rim light but stiff, build into a lightweight road bicycle disc carbon wheelset.
  • Item No.:

    DT38D
  • Size:

    700C
  • Material:

    full carbon Toray T700 & T800
  • Type:

    tubular
  • Brake:

    disc brake
  • Weight:

    330g±15 / 370g±15 (CX version)
  • ERD:

    569mm
  • Width:

    25mm
  • Depth:

    38mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    120kg / 265lbs
  • description

Product Item: Asymmetric 2.5mm offset disc road carbon 38mm deep tubular rim

road dsic carbon rim asymmetric

Constructed with premium Toray T700 & T800 carbon fiber, makes this asymmetric 38mm deep disc road tubular rim light but stiff, build into a lightweight road bicycle disc carbon wheelset.


Specification:

 Item:
 DT38D
 Use:
 road bike
 Rim type:
 700C tubular - disc brake
 Material:
 Toray T700 & T800 carbon fiber
 Width:
 25mm
 Weight:
 330g±15 / 370g±15 (CX version)
 Depth:
 38mm
 ERD*:
 569mm
 Weave:
 UD, 3k, 3k twill, 6k, marble  see different carbon weaves
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36 or customized
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 160psi - read more
 Decal:
 None or Customized
 Max cyclist weight:
 120kgs / 265lbs
 Warranty:
 5 years
 Standard:
 EN standard


* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.


Features:

  • Super lightweight, this asymmetric 2.5mm offset 38mm deep tubular road disc rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Asymmetric 2.5mm offset rim profile, balance the spoke tension between the drive and non-drive side.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about carbon rim quality control here.
