Item No.:
DT350-MTB-BOOSTHub:
DT Swiss 350 boost hubSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal mtb carbon rimsLacing:
F - 3 cross, R - 3 crossHole:
28/28 or 32/32Brake:
Disc brakeLevel:
Mid RacingStandard:

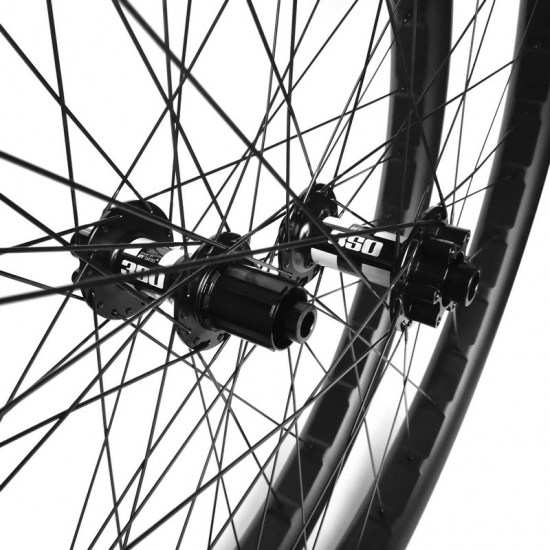

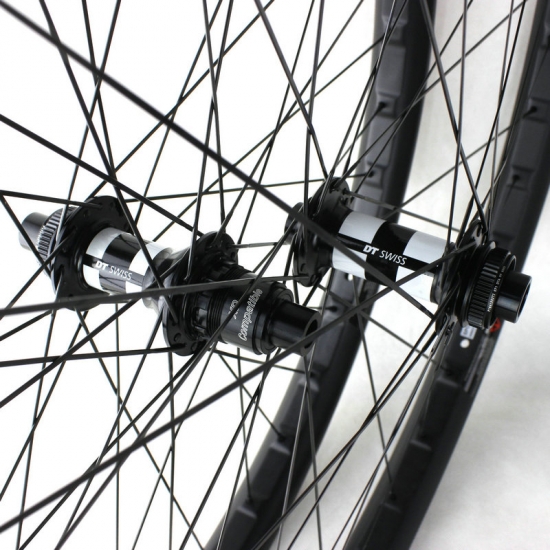

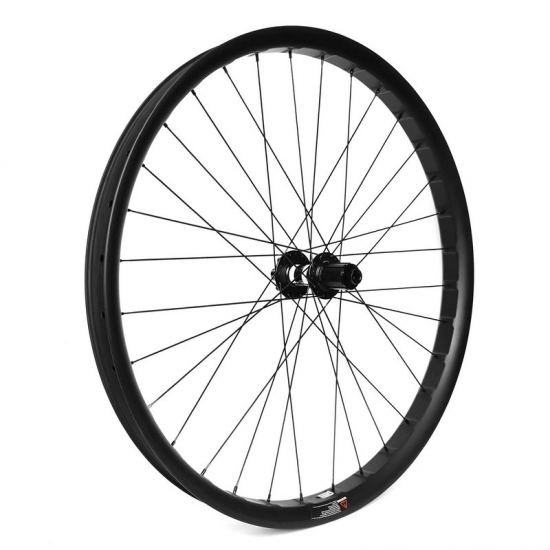

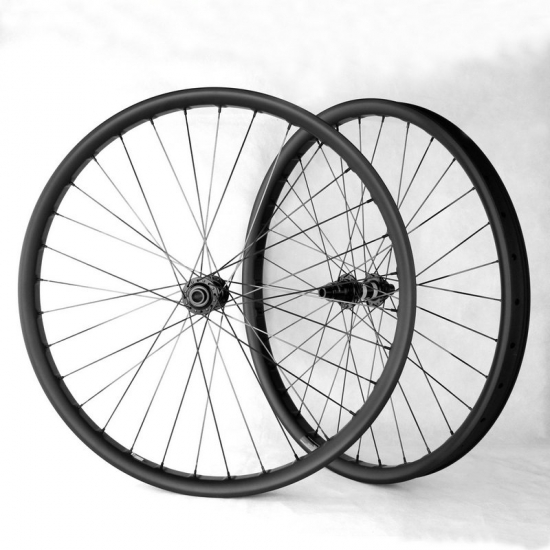

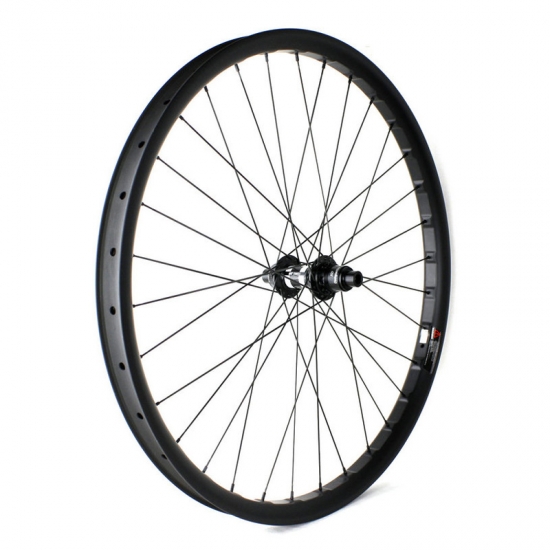

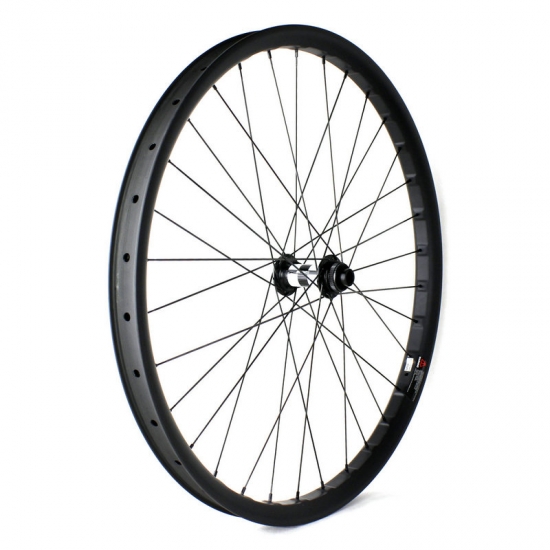

EN standardProduct Item: DT swiss 350 boost hub + Sapim CX-Ray spoke custom carbon mtb wheels.
DT Swiss 350 hub is the most affordable high performance hub available. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost.

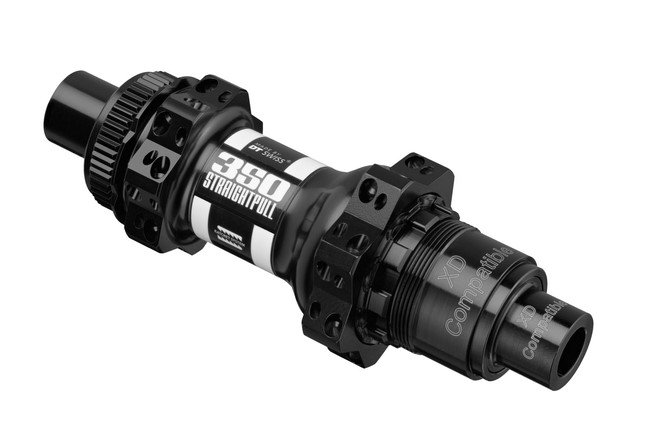

DT swiss 350 boost hub, straight pull or classic (J bend);
Axle system: front 15*110mm, rear 12*148mm;
Material: Aluminum;
Brake interface: Disc 6 bolts or Disc center lock;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Freehub body: Shimano 11SP (optional 12SP) or Sram XD MTB;
Hole: 28/28 or 32/32;
Color: black.
Spoke:
Sapim CX-Ray spokes, black;
Nipple:
Sapim alloy nipples, black or red.
Rim:
Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.
Lacing:
Front wheel - 3 cross;
Rear wheel - 3 cross.
Weight:
|
Freehub body |
Hole |
Axle system |
Hub weight / set |
Spokes + nipples weight |
Weight without rims / set |
|
Shimano 11SP |
28/28 |
F-15*110mm / R-12*148mm |
406g |
255g |
661g |
|
Sram XD |
28/28 |
F-15*110mm / R-12*148mm |
382g |
255g |
637g |
|
Shimano 11SP |
32/32 |
F-15*110mm / R-12*148mm |
484g |
291g |
775g |
|
Sram XD |
32/32 |
F-15*110mm / R-12*148mm |
461g |
291g |
752g |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All our mtb rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Please choose your favorite carbon mountain bike rim model, leave a message below with the rim "item number" (such as item MX942EN) to get a best quote of your custom mtb carbon wheel.
