Item No.:
DT240-MTB-STDHub:
DT swiss 240 disc hub, straight pull or classicSpoke:
Sapim CX-Ray spoke, blackNipple:
Sapim SILS nipples, black or red.Rim:
Carbonal mtb carbon rimsLacing:
F - 3 cross, R - 3 crossHole:
28/28 or 32/32Brake:
Disc brakeLevel:
Pro RacingStandard:

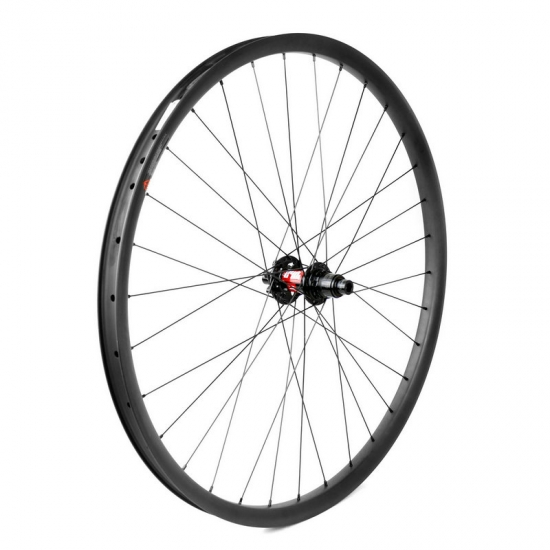

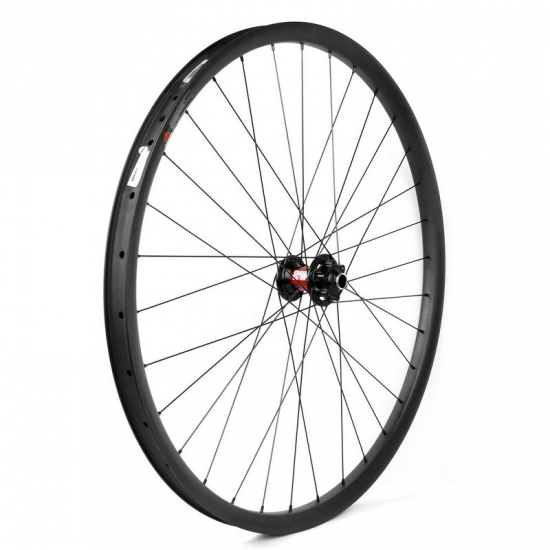

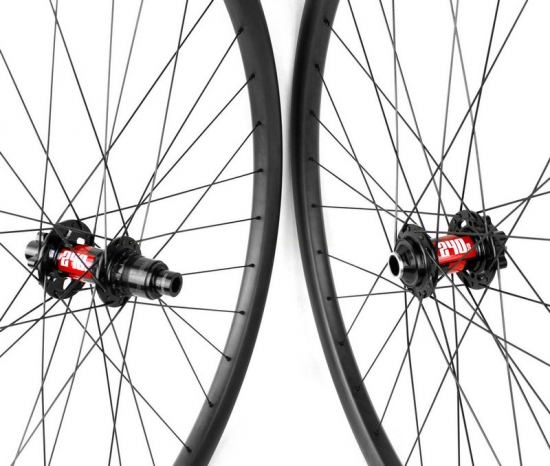

EN standardProduct Item: Hand built DT Swiss 240 hub + Sapim CX-Ray spoke mtb carbon wheels.
Featuring the latest refinements the DT Swiss 240 hubs are extremely lightweight and extremely durable. The Ratchet System is the best solution for a freewheel system, since it can transfer high loads while being super light. Just what athletes want: Perfect transmission of their power and the reliability allowing them to focus on the ride.

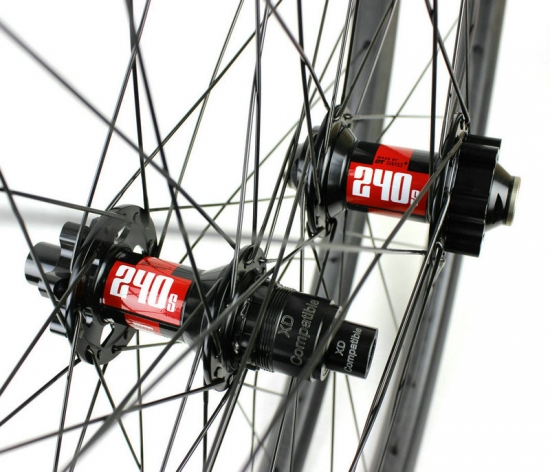

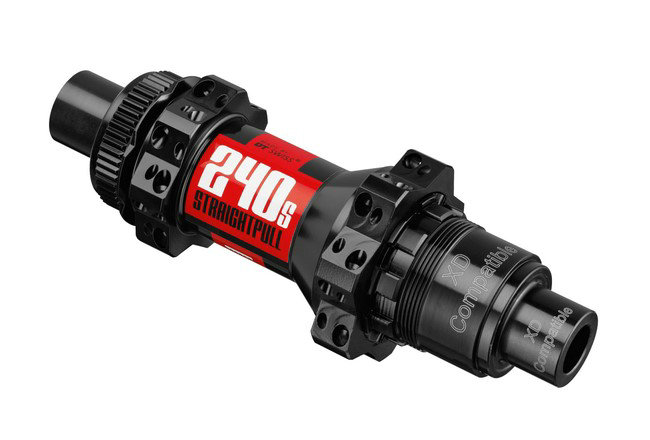

Hub:
DT swiss 240 disc hub, straight pull or classic (J bend);
Axle system: front 15*100mm , rear 12*142mm;
Brake interface: Disc 6 bolts or Disc center lock;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Freehub body: Shimano 11SP (optional 12SP) or Sram XD MTB;
Hole: 28/28 or 32/32;
Color: black.

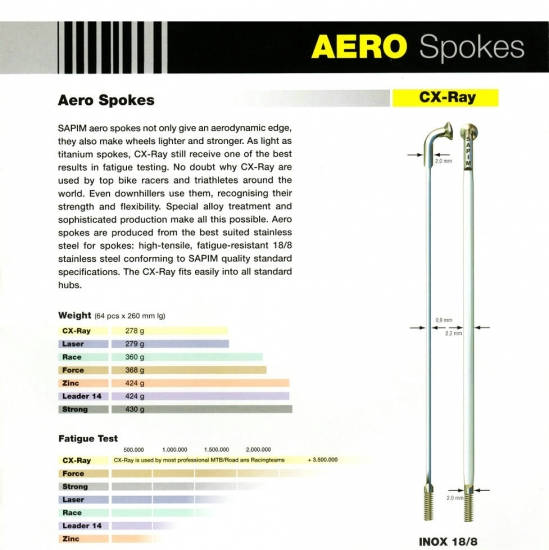

Spoke:
Sapim CX-Ray spoke, black;
*Website: Sapim spoke.
Nipple:
Sapim SILS nipples, black or red.
Rim:
Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.
Weight:
|
Freehub body |
Hole |
Axle system |
Hub weight / set |
Spokes + nipples weight |
Weight without rims * |
|
Shimano 11SP |
28/28 |
F-15*100mm / R-12*142mm |
375g |
255g |
630g |
|
Sram XD |
28/28 |
F-15*100mm / R-12*142mm |
375g |
255g |
630g |
|
Shimano 11SP |
32/32 |
F-15*100mm / R-12*142mm |
375g |
291g |
666g |
|
Sram XD |
32/32 |
F-15*100mm / R-12*142mm |
375g |
291g |
666g |
* Complete wheel weights are subject to a ±5% variance..
Please choose your favorite mountain bicycle carbon rim, leave a message below with the rim "item number" (such as item MX730XC) to get a best quote of your custom wheelset.
