Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
DT240-MTB-BOOSTHub:
DT swiss 240 boost hub, straight pull or classicSpoke:
Sapim CX-Ray spoke, blackNipple:
Sapim alloy nipples, black or red.Rim:
Carbonal mtb carbon rimsLacing:
F - 3 cross, R - 3 crossHole:
28/28 or 32/32Brake:
Disc brakeLevel:
Pro RacingStandard:

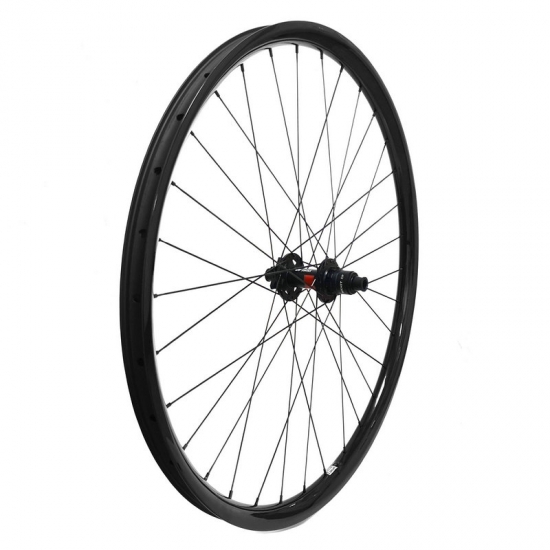

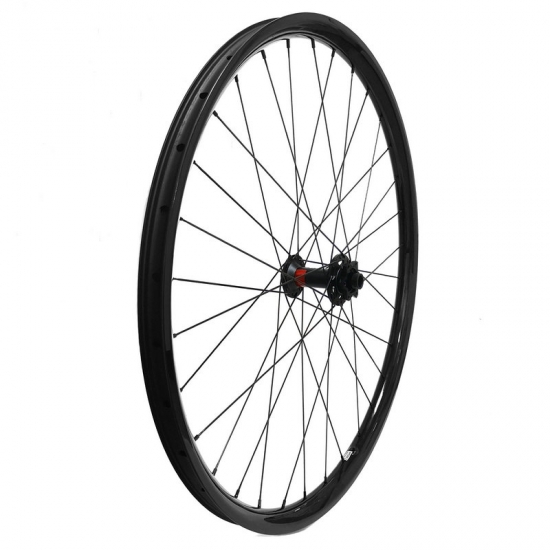

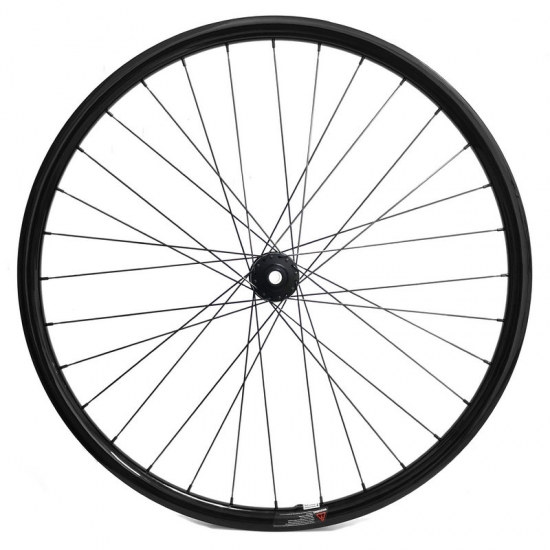

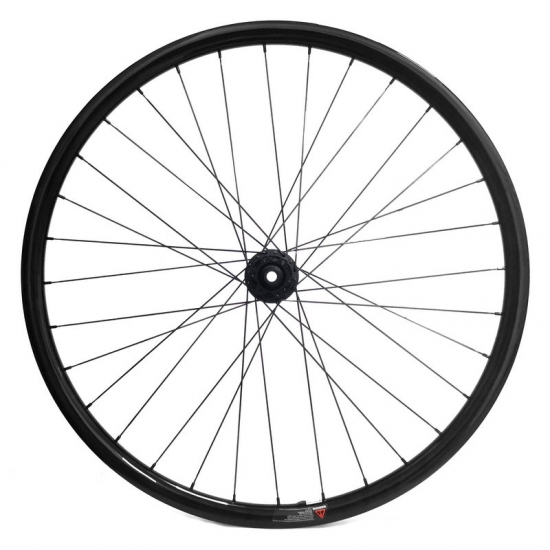

EN standardProduct Item: Hand built DT Swiss 240 Boost hub + Sapim CX-Ray spoke mtb wheels.

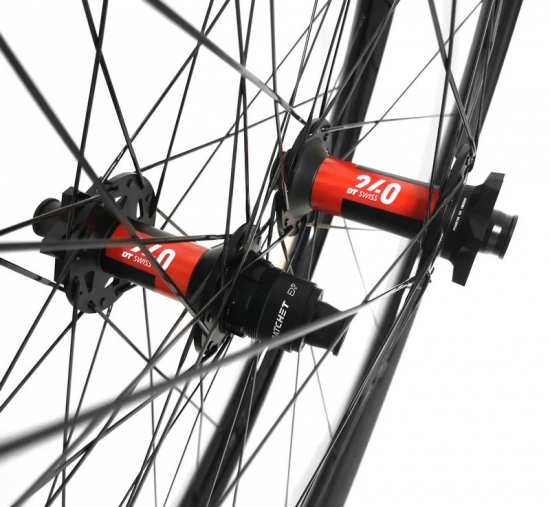

Featuring the latest refinements the DT Swiss 240 hubs are extremely lightweight and extremely durable. The Ratchet System is the best solution for a freewheel system, since it can transfer high loads while being super light. Just what athletes want: Perfect transmission of their power and the reliability allowing them to focus on the ride.
Hub:
DT swiss 240 boost hub, straight pull (28/28*) or classic (J bend, 32/32*);
Axle system: front 15*110mm , rear 12*148mm;
Brake interface: Disc center lock / Disc 6 bolts;
Free hub system: Ratchet EXP 36;
Freehub body: Shimano 11SP MTB / Sram XD MTB / Shimano Mirco Spline;
Hole: 28/28 or 32/32;
Color: black.
*Straight pull hub, 28/28 holes, disc center lock;
*J bend hub, 32/32 holes, disc 6 bolts.
Spoke:
Sapim CX-Ray spoke, black;
*Website: Sapim spoke.
Nipple:
Sapim alloy nipples, black or red.
Rim:
Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.
5 years warranty.
Weight:
|
Freehub body |
Hole |
Axle system |
Disc type |
Hub weight / set |
Spokes + nipples weight |
Weight without rims * |
|
Shimano MTB 11S |
28/28 |
F-15*110mm / R-12*148mm |
6 bolts |
335g |
255g |
590g |
|
Shimano MTB 11S |
28/28 |
F-15*110mm / R-12*148mm |
Center lock |
319g |
255g |
574g |
|
Sram XD MTB |
28/28 |
F-15*110mm / R-12*148mm |
6 bolts |
325g |
255g |
580g |
|
Sram XD MTB |
28/28 |
F-15*110mm / R-12*148mm |
Center lock |
305g |
255g |
560g |
|
Shimano Mirco Spline |
28/28 |
F-15*110mm / R-12*148mm |
6 bolts |
333g |
255g |
588g |
|
Shimano Mirco Spline |
28/28 |
F-15*110mm / R-12*148mm |
Center lock |
317g |
255g |
572g |
|
Shimano MTB 11S |
32/32 |
F-15*110mm / R-12*148mm |
6 bolts |
375g |
291g |
666g |
|
Shimano MTB 11S |
32/32 |
F-15*110mm / R-12*148mm |
Center lock |
341g |
291g |
632g |
|
Sram XD MTB |
32/32 |
F-15*110mm / R-12*148mm |
6 bolts |
364g |
291g |
655g |
|
Sram XD MTB |
32/32 |
F-15*110mm / R-12*148mm |
Center lock |
330g |
291g |
621g |
|
Shimano Mirco Spline |
32/32 |
F-15*110mm / R-12*148mm |
6 bolts |
372g |
291g |
663g |
|
Shimano Mirco Spline |
32/32 |
F-15*110mm / R-12*148mm |
Center lock |
338g |
291g |
629g |
* Complete wheel weights are subject to a ±5% variance.
Choose your favorite mountain bike carbon rim, leave a message below with the rim "item number" (such as MX742EN) to get a best quote of your custom wheelset.
Custom DT Swiss 350 hub + Sapim CX-Ray spoke mountain bike carbon wheels
Custom hand built mountain bike carbon wheels with DT swiss 350 hub + Sapim CX-Ray spokes, Sapim SILS nipples. Choose your favorite carbon mtb rim model. Each wheelset is painstakingly hand built by experienced wheel builder.
Extralite BOOST hub + Sapim CX-Ray spoke custom mtb carbon wheels
Custom build mountain bike carbon wheels with Extralite boost hub + Sapim CX-Ray spokes. Choose your favorite carbon mountain bicycle rim model. Each wheelset is painstakingly hand built by experienced wheel builder.
DT Swiss 350 BOOST hub + Sapim CX-Ray spoke custom carbon mtb wheels
Custom hand built mountain bike carbon wheels with DT swiss 350 boost hub + Sapim CX-Ray spokes, Sapim SILS nipples. Choose your favorite carbon mtb rim model. Each wheelset is painstakingly hand built by experienced wheel builder.
Hand built DT Swiss 240 hub + Sapim CX-Ray spoke mtb carbon wheels
Custom hand built mtb carbon wheels with DT swiss 240 hub and Sapim CX-Ray spoke, Sapim secure lock nipples. Choose your favorite mtb carbon rim model. Each wheelset is painstakingly hand built by experienced wheel builder.
Extralite mtb hub + Sapim CX-Ray spoke custom mountain carbon wheels
Custom build mountain bike carbon wheels with Extralite mtb hub + Sapim CX-Ray spokes. Choose your favorite carbon mountain bicycle rim model. Each mtb wheel is painstakingly hand built by experienced wheel builder.
Light mountain bike cross country 29er hookless rim tubeless compatible
Item XC925, weight 315g, ERD 595mm. This 29-inch rim is lightweight yet stiff for cross country, serving as the optimal selection for lightweight 29-inch carbon wheels. It is hookless and tubeless-ready, perfectly fitting for your 29er XC mountain bike.
Downhill 27.5 inch mtb carbon rim 35mm inner wide hookless tubeless ready
Item DH735, weight 580g, ERD 557mm. Downhill 27.5er mtb carbon rim, 35mm inner width can fit wider mountain bike tyres. These downhill carbon rims feature strong, stiff, durable and compliant carbon rims designed for punishment.
700C road and gravel bike U shape 28mm wide 33mm deep clincher rim
Item R21-33, weight 400g/460g, ERD 579mm. Featuring a wide 21mm internal rim width, this tubeless ready 33mm clincher rim set suitable for a variety of cycling applications, including road bikes and gravel bikes. Experience enhanced performance and reliability with our premium rim set.
