Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
MX6100Size:
26 inchMaterial:
full carbon Toray T700Type:
Beadless (tubeless ready)Weight:
745g±20ERD:
540mmInner width:
95mmOuter width:
100mmDepth:
25mmMax spoke tension:
140kgfMax weight limit:

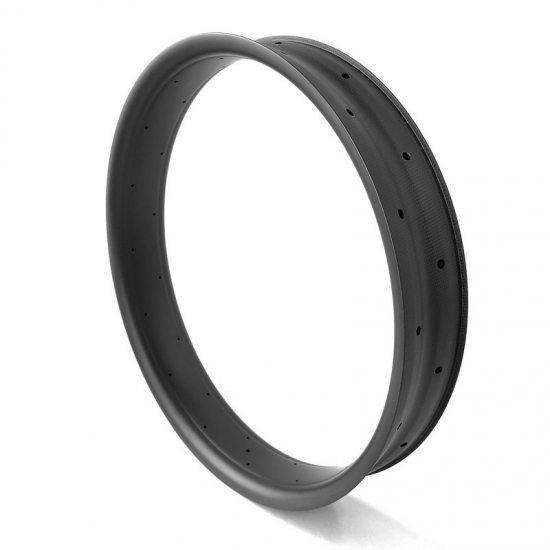

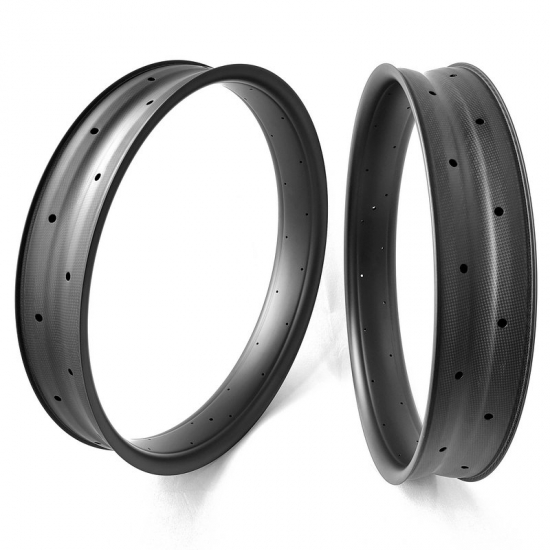

120kgProduct Item: 26er fatbike carbon rim 100mm wide 25mm depth beadless tubeless ready
This 26" carbon fiber bike rim 100mm wide is durable with double wall design for snow, sand or single track riding.
Specification:
|
Item: |
MX6100 |
Use: |
snow, sand or single track |
|
Rim type: |
26" hookless |
Material: |
Toray T700 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
745g±20 |
|

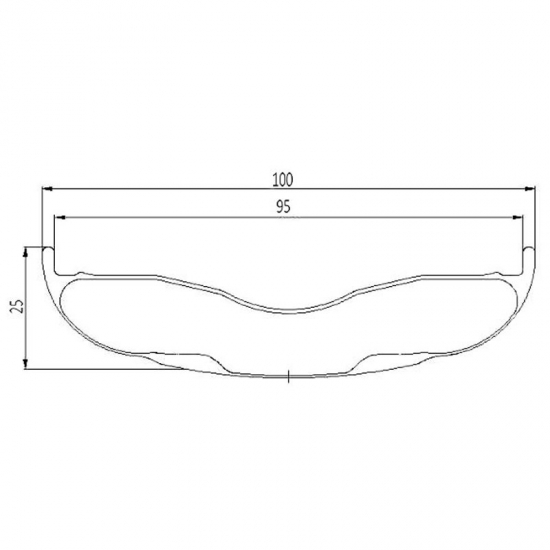

External/Internal width: |
100mm / 95mm |
ERD: |
540mm |
|
Depth: |
25mm |
Weave: |
UD |
|
Weight limit: |
120kgs |
Finish: |
Matte / Gloss |
|
Spoke hole count: |
32 holes |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm or customized |
Valve hole diameter: |
6.5mm (presta) or 8.5mm (schrader) |
|
Max spoke tension: |
140kgf (recommended 110~130kgf） |
Max tire pressure: |
25psi / 1.75bar |
|
Decal: |
Customized |
Standard: |
EN standard |
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
MX6100 Fatbike Carbon Rim Overview
Beadless carbon fiber 85mm wide 26er fatbike rim tubeless ready
Item MX685, weight 620g, ERD 542mm. This 26 inch carbon fat bike rim 85mm external wide is durable with double wall design for snow, sand or single track riding. 85mm wide fatbike wheel is an ideal size for all widths of fat bike tires.
26 inch carbon fatbike rim 65mm wide 25mm depth carbon rim
Item MX665, weight 595g, ERD 539mm. This 26 inch carbon fat bike rim 65mm wide is durable with double wall design for snow, sand or single track riding. 60mm internal width is an ideal size for 3.8" - 4.2" fat bike tires, it can still handles up to 4.8" tires.
Beadless carbon fiber 80mm wide 27.5 inch fatbike rim tubeless ready
Item MX780, weight 615g, ERD 545mm. This 27.5 inch carbon fat bike rim 80mm external wide is durable with double wall design for snow, sand or single track riding. The 28mm deep section provides extra rigidity for more aggressive riders.
Asymmetrical 50mm carbon fiber rims clincher with high temperature resin
Item R18-50X (RX50D), weight 500g, ERD 545mm. This U shape 25mm wide 50mm deep clincher carbon fiber rims are asymmetrical 2.5mm offset profile, using an offset rim allows for a wheel build that has its better balanced.
700c 29er disc 22mm wide 30mm deep clincher rim for road and gravel bike
Item D22-30, weight 360g, ERD 585mm. New 22mm internal width 29er/700C 30mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
Downhill 29 inch mtb carbon rim 35mm inner wide hookless tubeless ready
Item DH935, weight 600g, ERD 595mm. Downhill 29er mtb carbon rim, 35mm inner width can fit wider mountain bike tyres. These downhill carbon rims feature strong, stiff, durable and compliant carbon rims designed for punishment.
Asymmetric 50mm deep super light disc road bike tubular carbon rim
Item DT50D, weight 360g, ERD 545mm. Constructed with premium Toray T700 & T800 carbon fiber, makes this asymmetric 50mm deep disc road tubular rim lightweight but stiff, build into a lightweight road bicycle disc carbon wheelset.
27.5er asymmetric 32mm internal width 26mm deep mtb trail carbon rim
Item TR732X, weight 440g, ERD 555mm. This 650b trail bike rim tubeless compatible with 32mm internal width & 26mm deep asymmetric 3mm offset rim profile, it will give you a more reliable tubeless fit, increased stiffness and significantly lower weight.
