Item No.:
CS20-D23-MGHub:
CS20 hub, Straight pullSpoke:
Carbon spokeNipple:
Alloy, blackRim:
Carbonal D23-MG series rimsLacing:
F - 2 cross, R - 2 crossHole:
20 / 20Brake:
Disc brakeLevel:
Top RacingStandard:

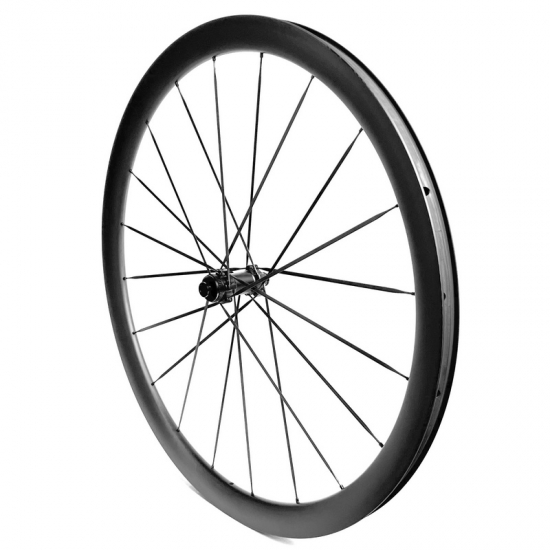

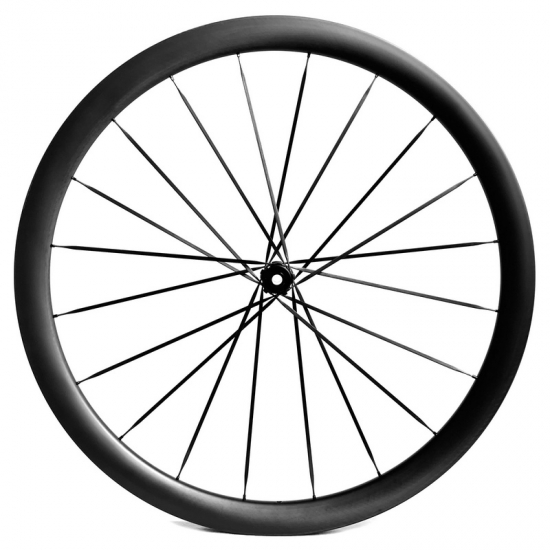

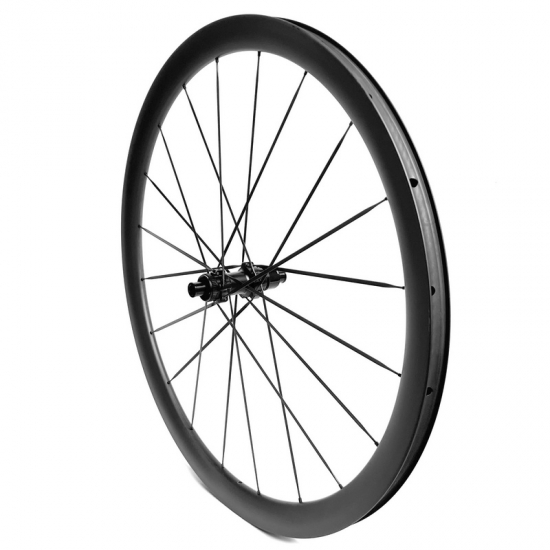

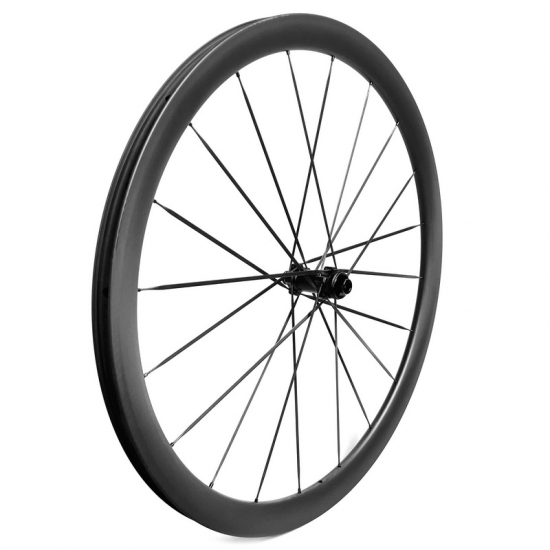

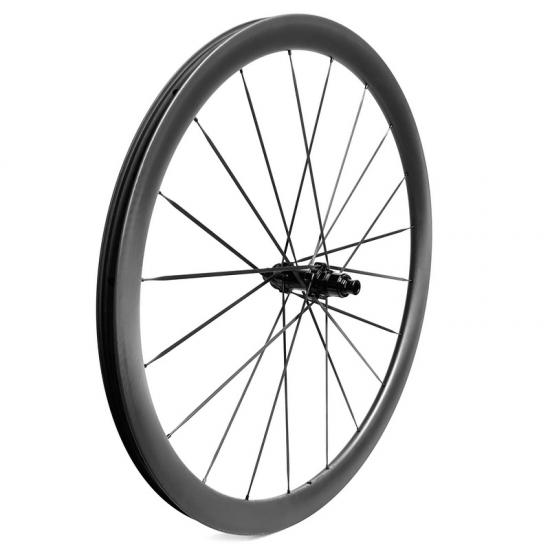

EN standardProduct Item: 700C Road Bike Carbon Spoke Wheel 23mm Internal Width CLINCHER Wheels
Unleash speed and confidence with our carbon spoke wheels—built from ultra-lightweight T1000 and T800 carbon fiber. With a 23mm inner width, 28.5mm outer width rims, they offer the perfect blend of aerodynamics, stiffness, and comfort.
Our advanced carbon spoke design boosts lateral stiffness over traditional aero steel spokes, enhancing power transfer and control—while still delivering a smooth, compliant ride. And with a tensile strength over 400kgf, these wheels meet and exceed the highest safety standards.

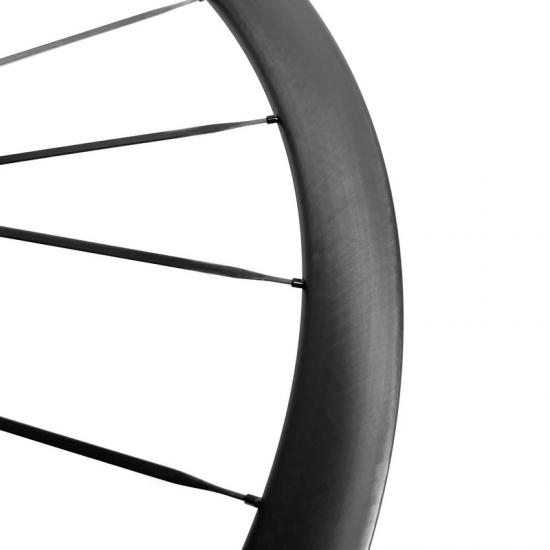

Rim:
Crafted from ultra-light carbon fiber, the MG series rims are the result of continuous optimization in carbon fiber stacking technology. The use of high-quality T1000 and T800 carbon fiber materials ensures exceptional strength-to-weight ratio, making it an ideal choice for professional cyclists seeking maximum performance and durability.
The innovative special wave-shaped rim is crafted for peak performance. Boasting an inner width of 23mm and rim heights ranging from low-profile 32~35mm to high-profile 75~80mm, these wave-shaped rims enhance lightness, responsiveness, fast acceleration on climbs, aerodynamics, and reliable, responsive handling on descents.

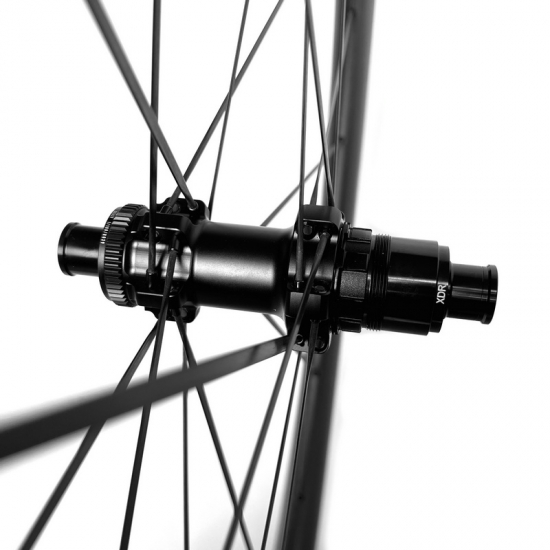

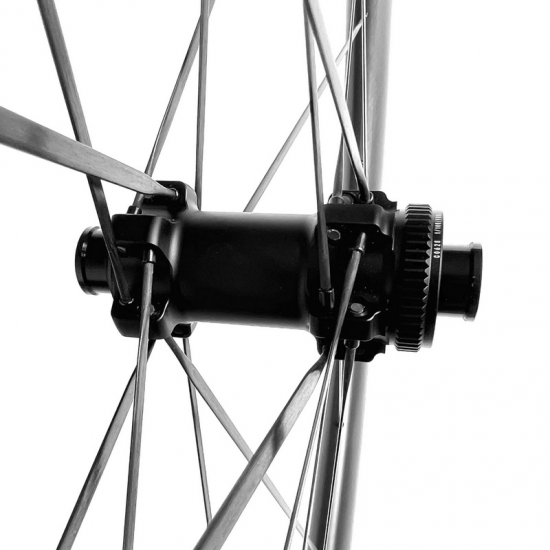

Hub:

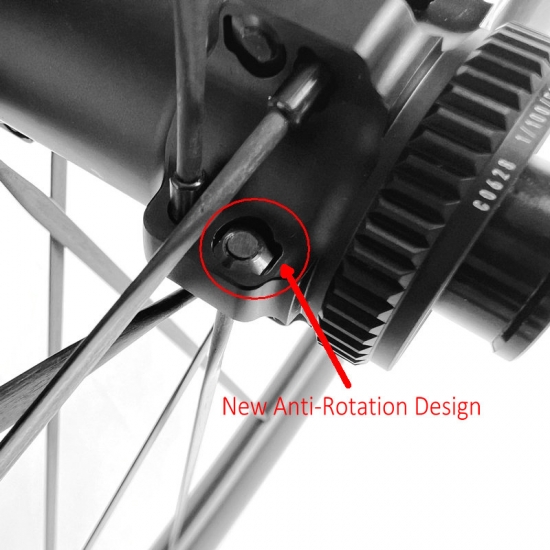

CS20 hub for carbon spoke, straight pull;
Axle system: F - 12x100mm, R - 12x142mm;
Free hub system: 36T ratchet;
Cassette body: Shimano HG / Sram XDR;
Bearing: TPI/CEMA ceramic bearings, front 6802*2, rear 6802*3+15267*1;
Brake system: Disc center lock;
Hole: Front 204, Rear 20;
Color: black.
Spoke:
Carbon spoke 3.5mm or 5.0mm, available titanium head 2.3g/pc, steel head 3.0g/pc;
Same spoke length for front DS/NDS & rear DS/NDS.
Nipple:
Alloy nipples, black;
Same nipple for above spokes, 0.4g/pc.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 280g/set;
Spokes + nipples: 108g (titanium head), 136g (steel head);
Weight without rims: 388g (titanium head), 416g (steel head).
Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight / set |
Max cyclist weight |
| D23-32 (MG32B) | 700c clincher, 23mm internal, 32mm deep |
315g |
1,018g ~ 1,046g |
90kgs |
| D23-38 (MG38B) |
700c clincher, 23mm internal, 38mm deep |
330g |
1,048g ~ 1,076g |
90kgs |
| D23-42 (MG42B) |
700c clincher, 23mm internal, 42mm deep |
350g |
1,088g ~ 1,116g |
90kgs |
|
D23-50 (MG50B) |
700c clincher, 23mm internal, 50mm deep |
380g |
1,148g ~ 1,176g |
100kgs |
|
D23-60 (MG60B) |
700c clincher, 23mm internal, 60mm deep |
415g |
1,218g ~ 1,246g |
110kgs |
|
D23-70 (MG70B) |
700c clincher, 23mm internal, 70mm deep |
480g |
1,348g ~ 1,376g |
120kgs |
|
D23-80 (MG80B) |
700c clincher, 23mm internal, 80mm deep |
560g |
1,508g ~ 1,536g |
130kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite carbon rim model, leave a message below with the rim item number (such as D23-32) to get a best quote for your next carbon spoke wheelset!
