Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
D411412SB-Gravel-DBHub:
Novatec D411SB & D412SB, Straight pullSpoke:
Sapim CX-Ray spokeNipple:
Sapim alloyRim:
Carbonal Gravel rimsLacing:
F - 2 cross, R - 2 crossHole:
Front 28, Rear 28Brake:
Disc brakeLevel:
Eco RacingStandard:
EN standard

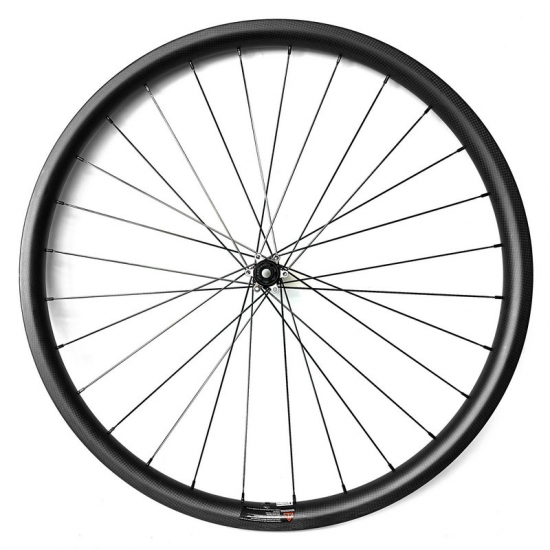

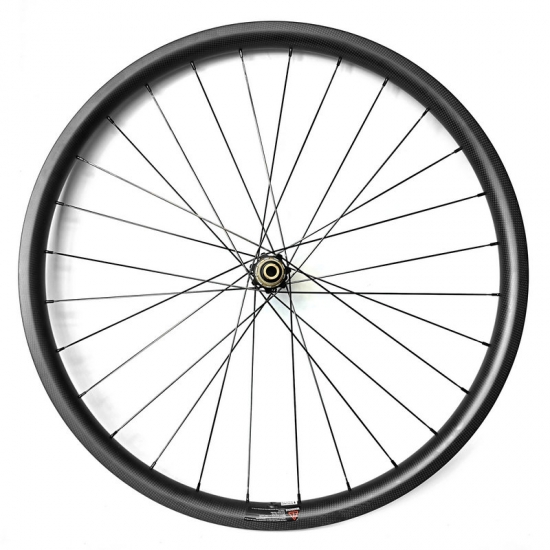

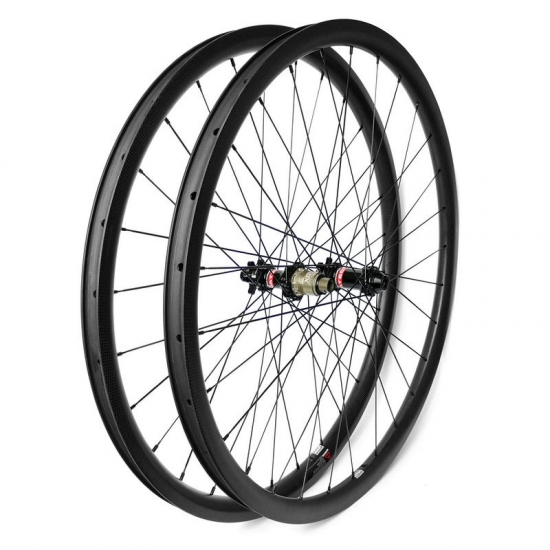

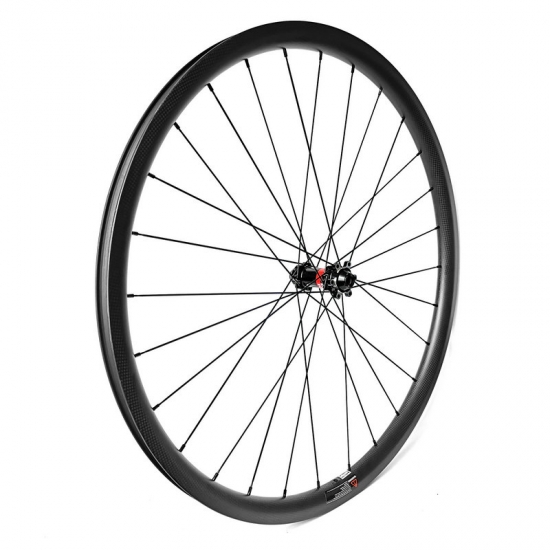

Product Item: Novatec D411 & D412 hub + Sapim CX-Ray spoke custom gravel bike wheelset
Rim:
High performance Carbonal CX & Gravel bike carbon rims, which can be ridden almost everywhere, on the road and off it.
Hub:

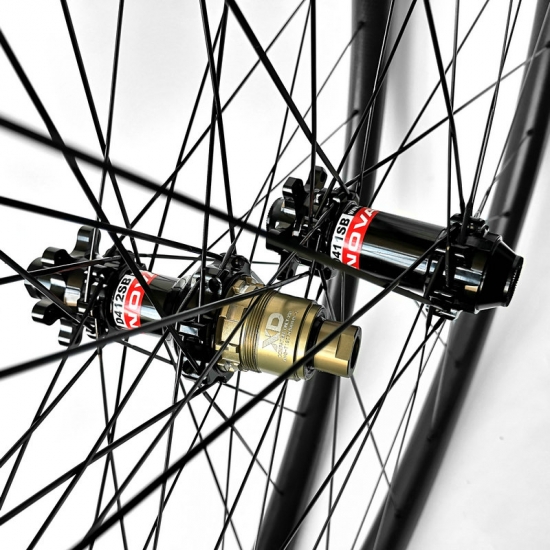

Novatec D411SB or D411SBCL front, D412SB or D412SBCL rear hub, straight pull;
Axle system: Front - 12*100mm or QR*100mm, Rear - 12*142mm or QR*135mm;
Cassette body: Shimano Road 11S / Sram 11s (XD);
Brake system: Disc 6 bolts / Disc center lock;
Hole: 24/24, 28/28;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy nipple, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Gravel Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
GZX28 |
29" / 700c clincher 28x29mm |
350g |
1,290g |
120kgs |
|
GZX35 |
27.5" / 650b clincher 35x32mm |
350g |
1,280g |
120kgs |
|
GZX38 |
29" / 700c clincher 28x38mm |
380g |
1,350g |
130kgs |
|
GZX50 |
29" / 700c clincher 28x50mm |
420g |
1,430g |
125kgs |
*Complete wheel weights are subject to a ±5% variance.
Gravel bike tubular 50mm depth 25mm wide carbon rim
Item RT50S-CX, weight 410g, ERD 545mm. Wider and U shape 50mm deep rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for gravel bike or cyclocross disc brake wheels.
Gravel bike tubular 30mm deep 25mm wide carbon rim
Item RT30S-CX, weight 350g, ERD 586mm. Wide and low U shape profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for road, gravel or cyclocross disc brake wheels.
Gravel bike tubular 38mm depth 25mm wide carbon rim
Item RT38S-CX, weight 370g, ERD 569mm. Wider and U shape 38mm deep aero designed rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for gravel or cyclocross disc brake wheels.
DT Swiss 240 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
[Disc Brake] Custom build disc brake gravel bike carbon wheel with DT Swiss 240 SP hub + Sapim CX-Ray spokes & alloy nipples. Pro Racing level, lightweight, stiff and durable, perfect for your gravel & cyclocross bike.
29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes
Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.
Asymmetric 27.5er hookless 30mm wide 35mm depth gravel carbon rim
Item D25-35HX (GZX35), weight 350g, ERD 537mm. Asymmetric 2.5mm offset carbon rim for lightweight 27.5 inch & 650b gravel bike, hookless and tubeless ready, more stiff, strong and durable, perfect for building gravel bike disc brake wheels.
29er disc bike rims 24mm inner width 50mm depth hookless for cyclocross and gravel bikes
Item D24-50H (GZX50), weight 420g, ERD 545mm. This 28mm external and 24mm internal width 50mm road disc rim provides the perfect platform for anything from a 30C to 50C gravel, cyclocross tire and makes tubeless set up a breeze.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
[Disc Brake] Custom build disc brake gravel bike carbon wheel with DT Swiss 350 SP hub + Sapim CX-Ray spokes & alloy nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
