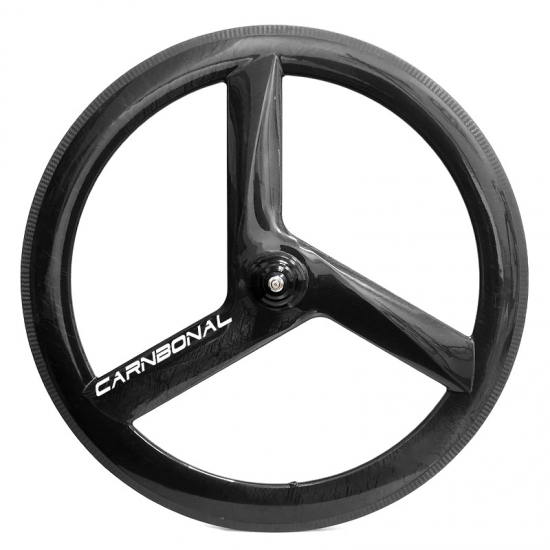

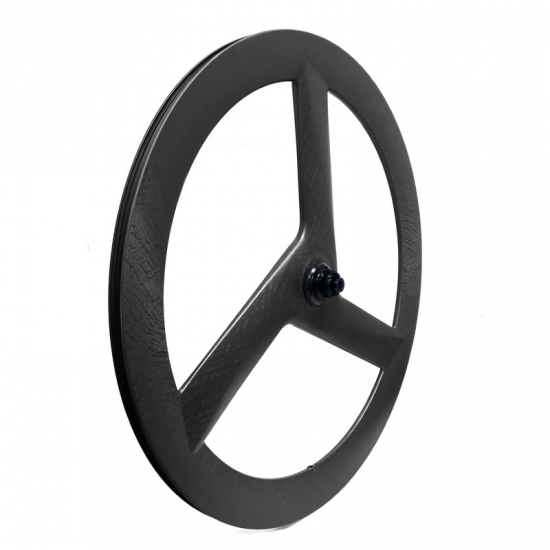

700C Carbon Road & TT Track Triple Spoke 23mm Wide 60mm Deep Wheels

Item DTX301-23W-60D, weight: 795g ~ 1140g. This triple spoke wheel features a 60mm deep rim with a 23mm width, aerodynamics design and outstanding stiffness provides efficient and direct power transfer, perfect for time trial testers and triathletes.

  • Item No.:

    DTX301-23W-60D

  • Size:

    700C

  • Material:

    full carbon Toray T700 & T800

  • Type:

    Tubular / Clincher (tubeless ready)

  • Weight:

    795g ~1140g

  • Inner width:

    15mm

  • Outer width:

    23mm

  • Depth:

    60mm

  • Max weight limit:

    130kg / 287lbs
Contact now
  • description

Product Item: 700C Carbon Road & TT Track Triple Spoke 23mm Wide 60mm Deep Wheels


This triple spoke wheel features a 60mm deep rim with a 23mm width, aerodynamics design and outstanding stiffness provides efficient and direct power transfer, perfect for time trial testers and triathletes.


700C Road & Triathlon Triple Spoke Wheel Specs


 Model  DTX301-23W-60D
 Material  Toray T700 premium carbon fiber
 Size  700C (ETRTO 622mm)
 Intended Use  Road / Triathlon / Time Trial / Track
 Bead Type  Tubular / Clincher (Tubeless ready)
 Tubeless Ready  Yes

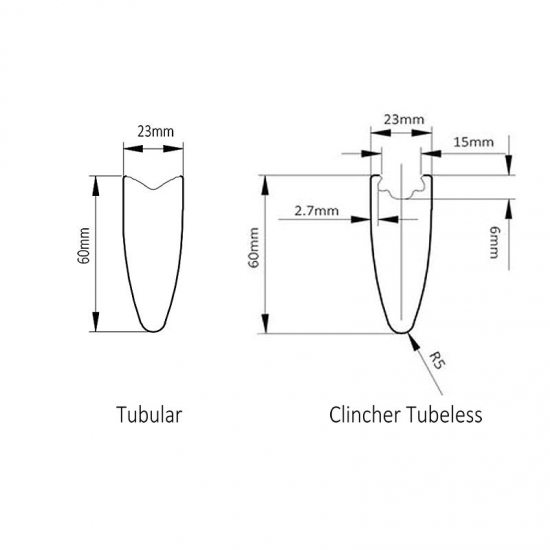

 Width  Tubular 23mm / Clincher 15mm inner & 23mm outer
 Depth  60mm
 Weight

Tubular / rim brake / front - 795g

Tubular / rim brake / rear - 910g

Tubular / disc brake / front - 795g

Tubular / disc brake / rear - 910g

Tubular / track / front - 880g

Tubular / track / rear - 1,020g

Clincher / rim brake / front - 915g

Clincher / rim brake / rear - 1,030g

Clincher / disc brake / front - 915g

Clincher / disc brake / rear - 1,030g

Clincher / track / front - 1,000g

Clincher / track / rear - 1,140g

*Weights are subject to a ±5% variance.


 Max Cyclist Weight (on flat ground)  130kgs / 287lbs
 Weave  UD, Marble
 Finish  Matte, Glossy
 Valve Hole Diameter  6.5mm

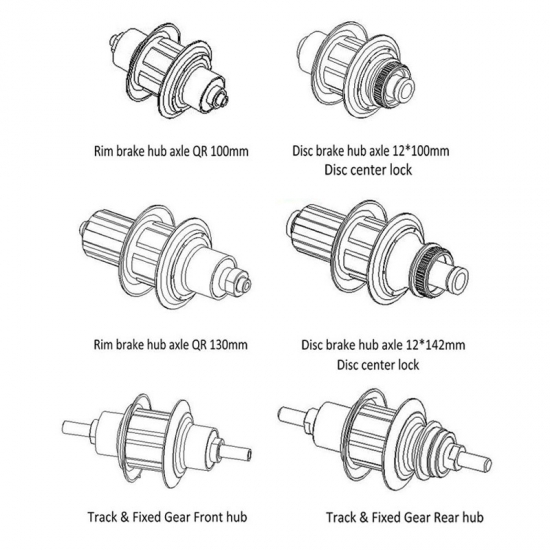

 Axle Size



 Rim brake: Front QR 100mm / QR 130mm

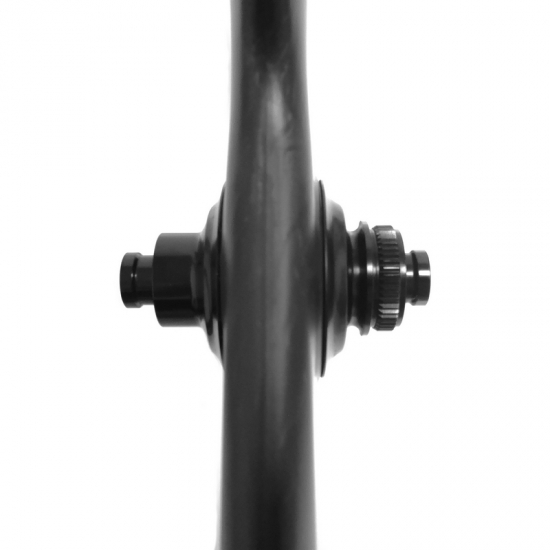

 Disc brake: Front 12x100mm / Rear 12x142mm

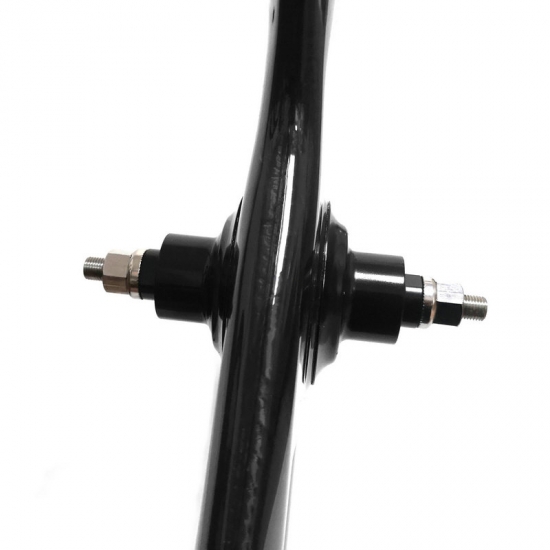

 Track: Front fixed 100mm / Rear fixed 120mm


 Cassette Body (rear wheel)  Shimano Road 11S / Sram XDR
 Tire Pressure  125psi / 8.62bar (recommended max)
 Decal / Paint  None or Custom graphics
 Warranty  5 years


All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.



100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon tri spoke wheel is given a unique ID number, which allow us to deliver the highest quality product possible and track every wheel to ensure the best after-sale service.


Read more about Carbonal Quality Control.


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.
