Item No.:
DTX301-27W-69DSize:
700CMaterial:
full carbon Toray T700 & T800Type:
Tubular / Clincher (tubeless ready)Weight:
780~1010gInner width:
20mmOuter width:
27mmDepth:
69mmMax weight limit:
150kg / 331lbs

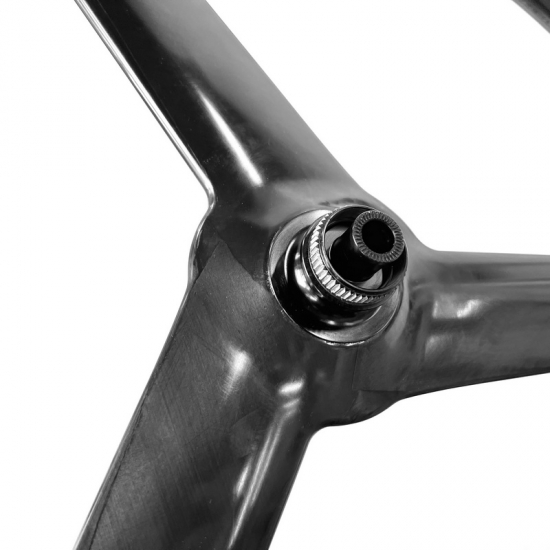

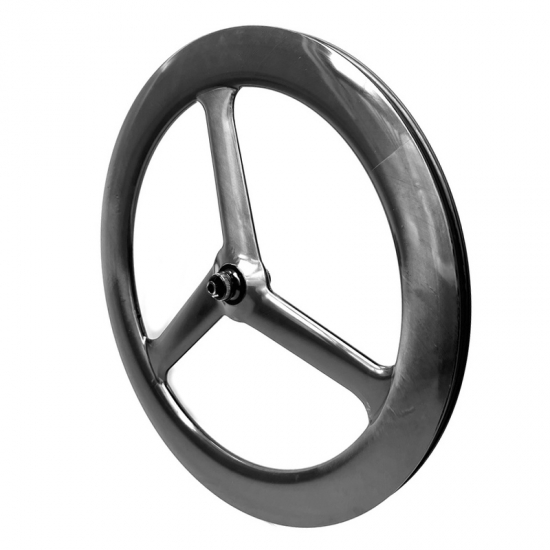

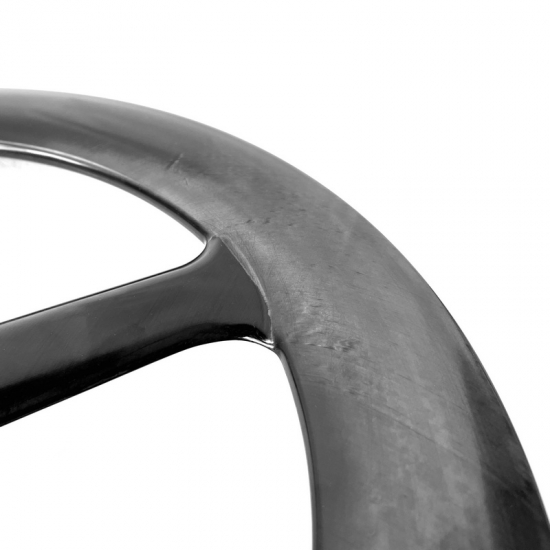

Product Item: 700C Carbon Triathlon Track Triple Spoke 27mm Wide 69mm Deep Wheels
New 700c triple spoke wheel of 20mm Int 27mm Ext and 69mm deep, available in tubular and clincher tubeless, aerodynamic design and excellent stiffness for optimal power transfer, ideal for triathlon testers and triathlons athlete. Extremely high modulus carbon fiber construction, race-proven by the pros.

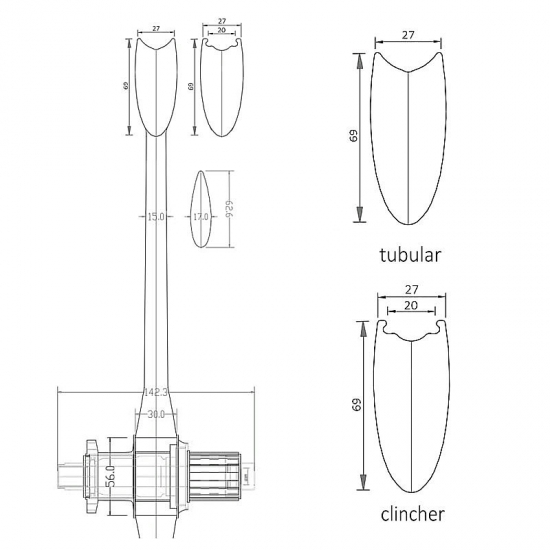

700C Triathlon Track Triple Spoke Wheels Specs
| Model |
DTX301-27W-69D |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 700C (ETRTO 622mm) |
| Intended Use | Triathlon, Time Trial, Track |
| Bead Type | Tubular / Clincher (Tubeless ready) |
| Tubeless Ready | Yes |
| Width | Tubular 27mm / Clincher 20mm inner & 27mm outer |
| Depth | 69mm |
| Weight |
Tubular / rim brake / front - 780g Tubular / rim brake / rear - 890g Tubular / disc brake / front - 780g Tubular / disc brake / rear - 920g Tubular / track / front - 850g Tubular / track / rear - 900g Clincher / rim brake / front - 890g Clincher / rim brake / rear - 1,000g Clincher / disc brake / front - 890g Clincher / disc brake / rear - 1,030g Clincher / track / front - 960g Clincher / track / rear - 1,010g *Weights are subject to a ±5% variance.
|
| Max Cyclist Weight (on flat ground) | 150kgs / 331lbs |
| Weave | UD, 3k twill, 6k |
| Finish | Matte, Glossy |
| Valve Hole Diameter |
6.5mm |
| Axle Size |
Rim brake: Front QR 100mm / QR 130mm Disc brake: Front 12x100mm / Rear 12x142mm Track: Front fixed 100mm / Rear fixed 120mm |
| Cassette Body (rear wheel) |
Shimano Road 11S / Sram XDR |
| Tire Pressure |
130psi / 8.96bar (recommended max) |
| Decal / Paint |
None or Custom graphics |
| Warranty |
5 years |
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon tri spoke wheel is given a unique ID number, which allow us to deliver the highest quality product possible and track every wheel to ensure the best after-sale service.
Read more about Carbonal Quality Control.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
