Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
DISCT-DR-W24Size:
700CMaterial:
full carbon Toray T700 & T800Type:
TubularWeight:
990g(±5%)Width:
24mmMax weight limit:

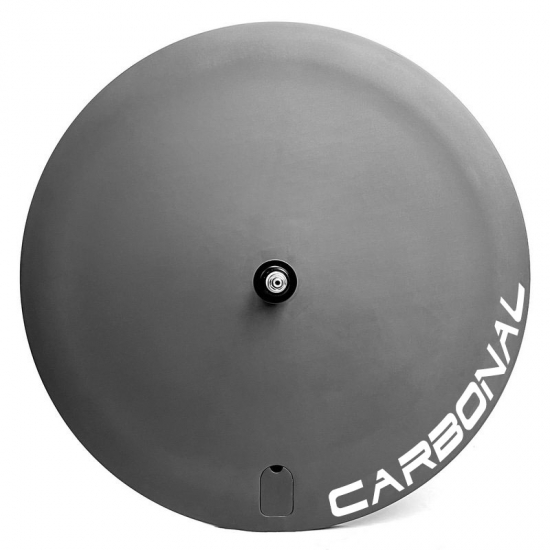

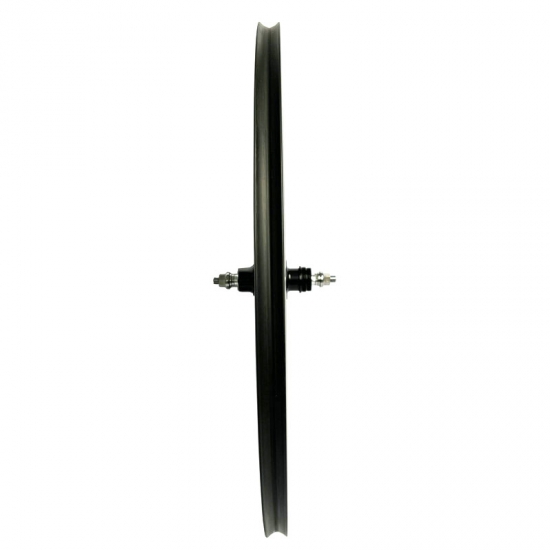

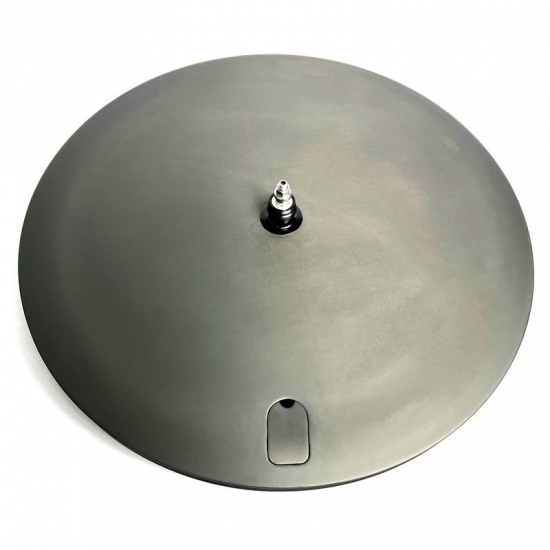

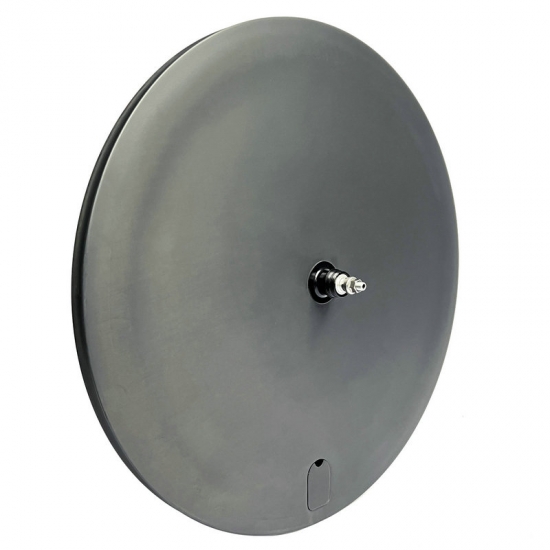

130kgs/287lbsProduct Item: 700c Full Carbon 24mm Wide Tubular Triathlon & Track Disc Wheels - REAR Wheel
Crafted for TT experts and top triathletes, this 24mm tubular aero disc stands out in every facet: aerodynamics, rolling resistance, braking, and acceleration. This aero disc tubular wheel is speedy enough to conquer the flat course and lightweight enough for the most demanding triathlons or time trials.
700C Disc Wheel Rear Wheel Specs
| Model | DISCT-DR-W24 |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 700C (ETRTO 622mm) |
| Intended Use | Triathlon / Time Trial / Track |
| Bead Type | Tubular |

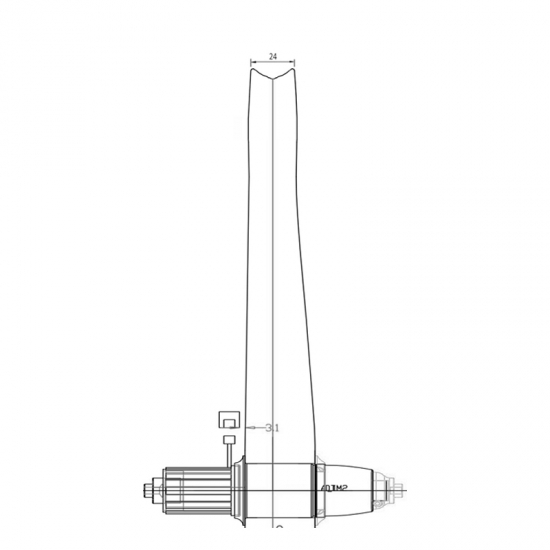

| Width | 24mm |
| Weight |
990g (±5%)*
|
| Max Cyclist Weight (on flat ground) | 130kgs / 287lbs |
| Weave | 8 UD (8 Segment Radial) / Full UD / Marble |
| Finish | Matte, Glossy |
| Valve Hole Diameter |
6.5mm |
|
Hub |
Carbonal OE hub* / DT Swiss 350 / DT Swiss 240 |
| Bearing | CEMA ceramic bearings |
| Axle Size |
QR130mm / 12x142mm / fixed 120mm |
| Cassette Body | Shimano Road 11S / Sram XDR / Track fixed gear |
| Max Tire Pressure | N/A |
| Decal / Paint |
None or Custom graphics |
| Warranty |
5 years |
*This
weight is for disc wheel with UD weave and free coating finish. Disc
wheels with other carbon weaves and finishes are slightly heavier.

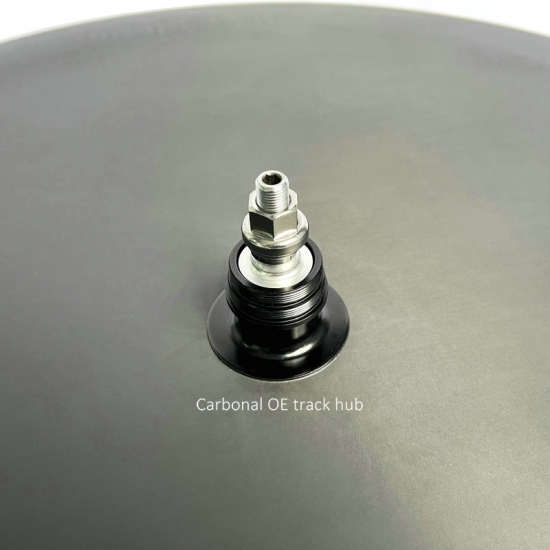

*Carbonal OE hub is ratchet system, can be upgraded to DT Swiss ratchet body.
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
700c Full Carbon 28mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W28, weight: 995g(±5%). Developed as the ideal rear disc wheel for road and time trail bike, most effective solutions for the aerodynamics as well as ride quality.
700c Full Carbon 25mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W25, weight: 930g(±5%). Engineered design for maximum aerodynamic efficiency,This 25mm wide disc wheel has 18mm internal width and tubeless tire bed is the perfect marriage of advanced aero design and lightweight carbon fiber construction.
650B Full Carbon 28mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W28-650B, weight: 925g(±5%). Developed as the ideal rear disc wheel for road and time trail bike, most effective solutions for the aerodynamics as well as ride quality. This new 650b disc wheel has 22mm internal width and tubeless tire bed, so you can choose your fastest setup possible in terms of tire choice.
700c Full Carbon 30.5mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W30.5, weight: 930g(±5%). Developed as the ideal rear disc wheel for road and time trail bike, most effective solutions for the aerodynamics as well as ride quality. Engineered for speed, efficiency, and superior ride quality, this 700c full carbon rear disc wheel is the ultimate upgrade for road cyclists and time trial enthusiasts seeking high performance.
Beadless carbon fiber 85mm wide 26er fatbike rim tubeless ready
Item MX685, weight 620g, ERD 542mm. This 26 inch carbon fat bike rim 85mm external wide is durable with double wall design for snow, sand or single track riding. 85mm wide fatbike wheel is an ideal size for all widths of fat bike tires.
Full carbon 650b bike XC rim 30mm wide hookless tubeless ready
Item XC725, weight 300g, ERD 557mm. This new carbon 650b bike rim is light and stiff, it's a supler lightweigt 27.5 rim for XC, the best choice for super light 650b carbon wheel. It's hookless and tubeless ready, perfect for your 650b cross country bike.
Asymmetric 32mm wide carbon fiber 29er mtb trail rim tubeless ready
Item TR926X (MX932TR), weight 390g, ERD 595mm. 29 inch carbon rim 26mm internal width and asymmetric 3mm offset profile, the unique asymmetric profile balance drive and non-drive side spoke tension to create a more durable mountain bike wheel.
Road carbon wheel rim 700c 60mm deep clincher tubeless compatible
Item R18-60, weight 560g, ERD 525mm. This 18mm internal width 60mm deep high profile aerodynamic rim is designed for cyclists with a love for speed. Made for winning in road racing, circuit races, time trials and triathlons.
