Item No.:
DISCX-DR-W30.5Size:
700CMaterial:
full carbon Toray T700 & T800Type:
Clincher (tubeless ready)Weight:
930g(±5%)Inner width:
23mmOuter width:
30.5mmMax weight limit:

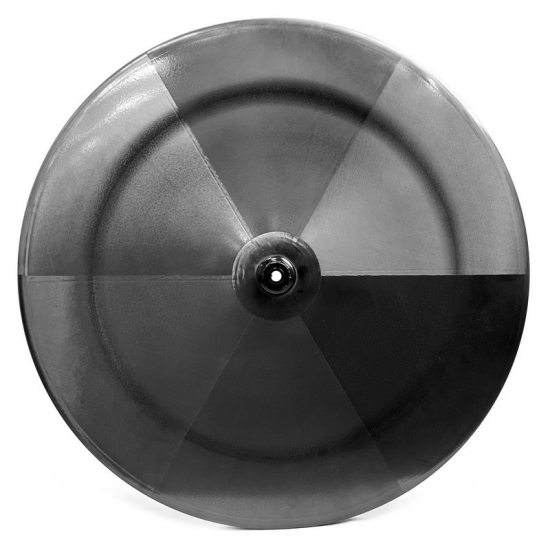

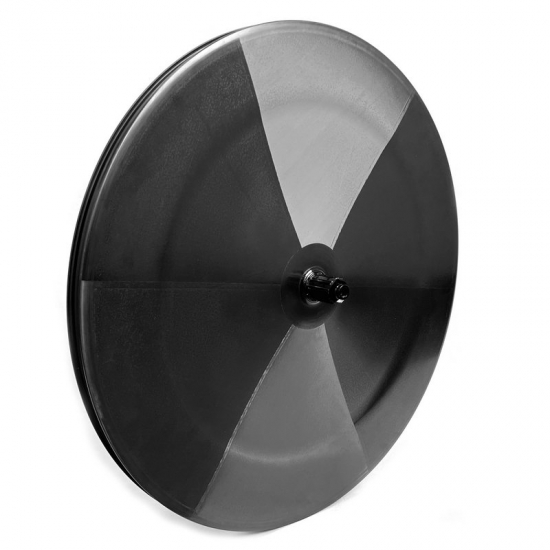

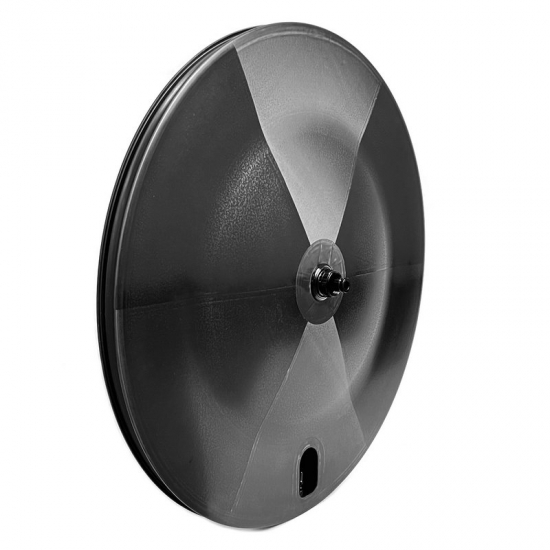

130kgs/287lbsProduct Item: 700c Full Carbon 30.5mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Engineered for speed, efficiency, and superior ride quality, this 700c full carbon rear disc wheel is the ultimate upgrade for road cyclists and time trial enthusiasts seeking high performance. With an aerodynamically optimized 30.5mm outer width and a 23mm inner rim width, this wheel is designed to pair perfectly with modern tubeless tires, offering enhanced grip, lower rolling resistance, and improved cornering stability.
700C Disc Wheel Rear Wheel Specs
| Model | DISCX-DR-W30.5 |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 700C (ETRTO 622mm) |
| Intended Use | Triathlon / Time Trial / Track |
| Bead Type | Clincher (Tubeless ready) |
| Tubeless Ready | Yes |

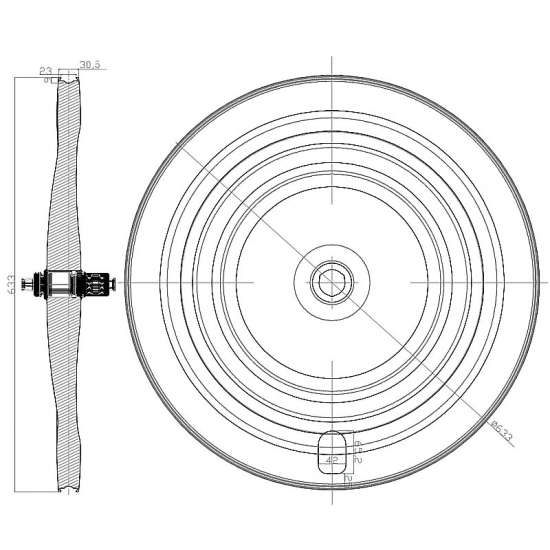

| Width | 23mm inner & 30.5mm outer |
| Weight |
930g (±5%)
|
| Max Cyclist Weight (on flat ground) | 130kgs / 287lbs |
| Weave | 6 UD (6 Segment Radial) |
| Finish | Matte, Glossy |

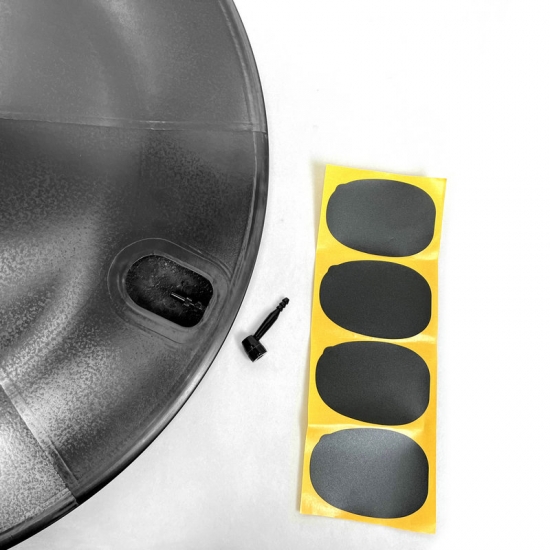

| Valve Hole Diameter | 6.5mm (presta) |
|
Hub |
Carbonal OE hub* / DT Swiss 350 / DT Swiss 240 |
| Bearing | CEMA ceramic bearings |
| Axle Size |
12x142mm / fixed 120mm |
| Cassette Body | Shimano Road 11S / Sram XDR / Track fixed gear |
|
Tire size |
25C ~ 38C |
| Tire Pressure |
110 psi / 7.58 bar (recommended max) |
| Decal / Paint |
None or Custom graphics |
| Warranty |
5 years |
*Carbonal OE hub is ratchet system, can be upgraded to DT Swiss ratchet body.
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.5 million liability insurance worldwide, included commercial general liability and occurrence basis.
