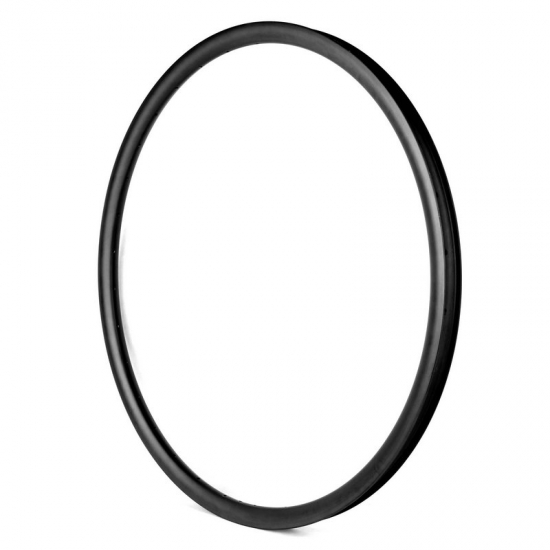

Asymmetric 32mm wide carbon fiber 29er mtb trail rim tubeless ready

Item MX932TR, weight 390g, ERD 595mm. 29 inch carbon rim 26mm internal width and asymmetric 3mm offset profile, the unique asymmetric profile balance drive and non-drive side spoke tension to create a more durable mountain bike wheel.
  • Item No.:

    MX932TR
  • Size:

    29 inch
  • Material:

    full carbon Toray T700 & T800
  • Type:

    hookless (tubeless ready)
  • Weight:

    390g±15
  • ERD:

    595mm
  • Inner width:

    26mm
  • Outer width:

    32mm
  • Depth:

    25mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    115kg
  • description

Product Item: Asymmetric 32mm wide carbon fiber 29er mtb trail rim tubeless ready

asymmetric 29er mtb rim

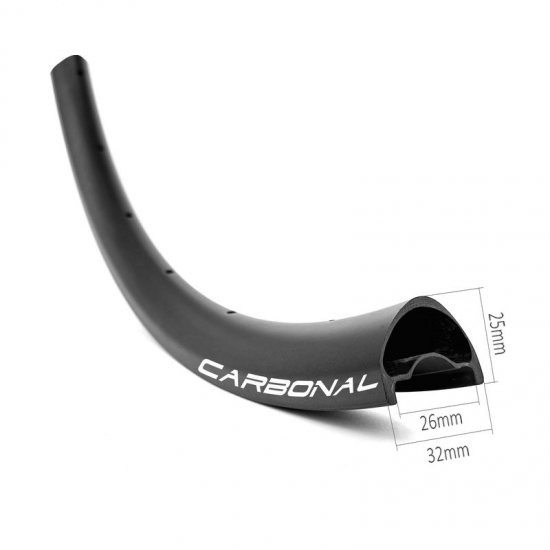

This 29er carbon rim 32mm/26mm wide & 25mm deep is asymmetric 3mm offset profile, the unique asymmetric profile balance drive and non-drive side spoke tension to create a more durable mountain bike wheels.


Specification:

 Item:
 MX932TR
 Use:
 Trail, XC
 Rim type:
 29" hookless
 Material:
 Toray T700 & T800 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 390g±15
 External/Internal width:
 32mm / 26mm
 ERD:
 595mm
 Depth:
 25mm
 Finish:
 Matte, glossy
 Weight limit:
 115kgs
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Offset:
 3mm (asymmetrical)
 Brake type:
 Disc brake
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 60psi / 4.1bar
 Tire size:
 2.0" ~ 2.4" (recommended)
 Min tire pressure:
 25psi / 1.75bar - read more
 Decal:
 Customized
 Standard:
 EN standard


Features:

  • The unique asymmetric 3mm offset rim profile balances drive and non-drive side spoke tension to create a more durable and long lasting mtb wheelset.
  • Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

  • Hookless Construction. The hookless construction not only makes the tires easier to mount, it also guarantees a more stable rim flange, as the carbon fibers can be placed throughout.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control
