Item No.:
PB12-W26Size:
12 inchMaterial:
Toray T700 carbon fiberType:
clincherWeight:
205g±10Inner width:
22mmOuter width:
26mmDepth:
21mmMax weight limit:

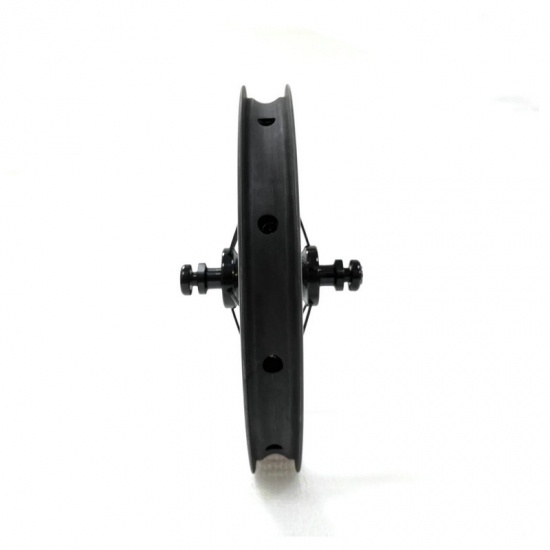

75kgProduct Item: 12 inch balance bike wheel kids push bike carbon wheels
This 12" balance bike wheel with 26mm width and 21mm deep rim profile, strong and stiff, excellent performance for kids balance bike, push bike.
Specification:
|
Item: |
PB12-W26 |
Use: |
Balance bike, push bike |
|
Rim type: |
12" clincher |
Material: |
Toray T700 + T800 carbon fiber |
|
Tubeless ready: |
No |
Weight: |
185g±10 (without end cap and bolts) |
|
External/Internal width: |
26mm / 22mm |
ETRTO: |
202mm |
|
Depth: |
21mm |
Max weight limit: |
75kgs |
|
Weave: |
UD / Marble |
Finish: |
Matte, glossy |
|
Decal: |
None or Customized |
Max tire pressure: |
65psi (4.5bar) |
|
Hub: |
Carbon hub, 3k gloss |
Bearing: |
TPI 699LLB |
| O.L.D: | 84 / 95mm | Spoke: | Sapim leader |
| Warranty: | 5 years |
|
|

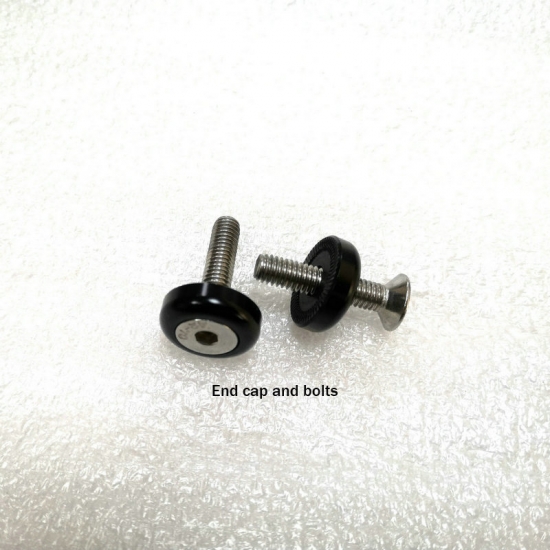

*Weight: 205g±10 when included end cap and bolts.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
Warranty policy:
5 years warranty and 2 years crash replacement.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
12 inch carbon fiber balance bike rim 30mm wide push bike carbon rim
Item CB12-W30, weight: 95g±5, ERD 192mm. Wider 30mm width but lower 17mm deep rim profile makes this rim unmatched aerodynamic, light and stiff, excellent performance for kid balance bike, push bike.
12 inch trispoke carbon balance bike wheel kids push bike wheel
Item CB12-301, weight: 175g±10. Wider 30mm width but lower 17mm deep rim profile makes this trispoke carbon balance bike wheel unmatched aerodynamic, light and stiff, excellent performance for kids balance bike, push bike.
27.5er carbon 38mm wide 23.5mm depth hookless enudro mtb rim
Item EN731, weight 480g, ERD 560mm. This enduro carbon rim with its 31mm internal width is an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes.
Extralite BOOST hub + Sapim CX-Ray spoke custom mtb carbon wheels
Custom build mountain bike carbon wheels with Extralite boost hub + Sapim CX-Ray spokes. Choose your favorite carbon mountain bicycle rim model. Each wheelset is painstakingly hand built by experienced wheel builder.
700c 29er disc 22mm wide 30mm deep clincher rim for road and gravel bike
Item D22-30, weight 360g, ERD 585mm. New 22mm internal width 29er/700C 30mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike
Item D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.
Asymmetrical 38mm high temperature resin carbon rim for road bike wheels
Item R18-38X (RX38D), weight 470g, ERD 469mm. Asymmetric rim profile with offset spoke holes for better triangulation of spoke angles and balance of tensions in a wheel build, resulting a stronger, stiffer, more compliant and reliable road wheels.
700C disc carbon bike rim 21mm internal width 70mm deep clincher
Item D21-70, weight 530g, ERD 505mm. Featuring a wide 21mm internal rim width and an incredibly aerodynamic 70mm depth, this disc rim is perfect partner for your time-trial, triathlon, or crit racing bike.
