Item No.:
DISCX-DR-W25Size:
700CMaterial:
full carbon Toray T700 & T800Type:
Clincher (tubeless ready)Weight:
930g(±5%)Inner width:
18mmOuter width:
25mmMax weight limit:

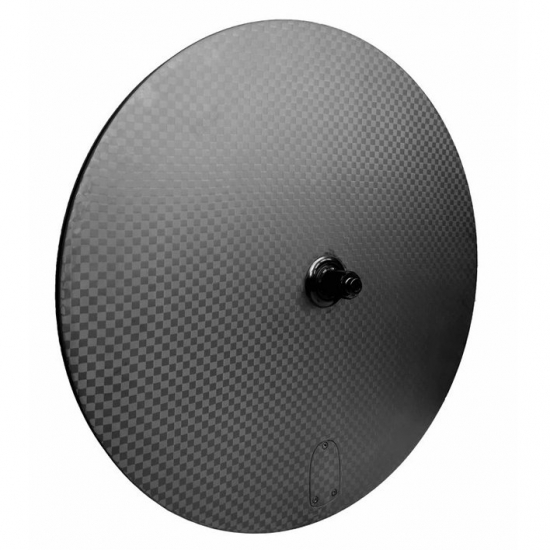

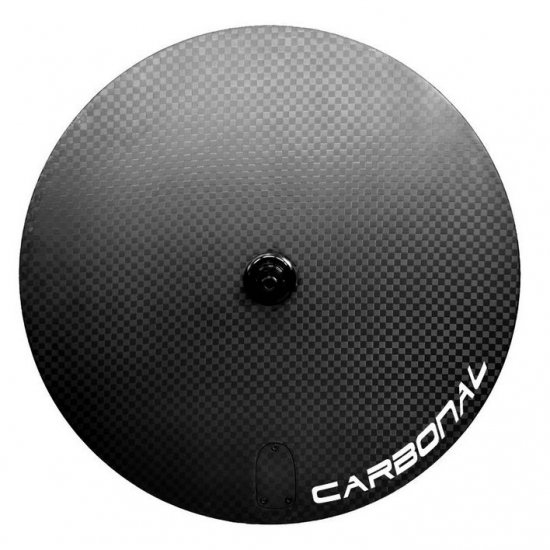

130kgs/287lbsProduct Item: 700c Full Carbon 25mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Engineered design for maximum aerodynamic efficiency,This 25mm wide disc wheel has 18mm internal width and tubeless tire bed is the perfect marriage of advanced aero design and lightweight carbon fiber construction.
700C Disc Wheel Rear Wheel Specs
| Model | DISCX-DR-W25 |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 700C (ETRTO 622mm) |
| Intended Use | Triathlon / Time Trial / Track |
| Bead Type | Clincher (Tubeless ready) |
| Tubeless Ready | Yes |
| Width | 18mm inner & 25mm outer |
| Weight |
930g (±5%)*
|
| Max Cyclist Weight (on flat ground) | 130kgs / 287lbs |
| Weave | 8 UD (8 Segment Radial) / Full UD / Marble |
| Finish | Matte, Glossy |

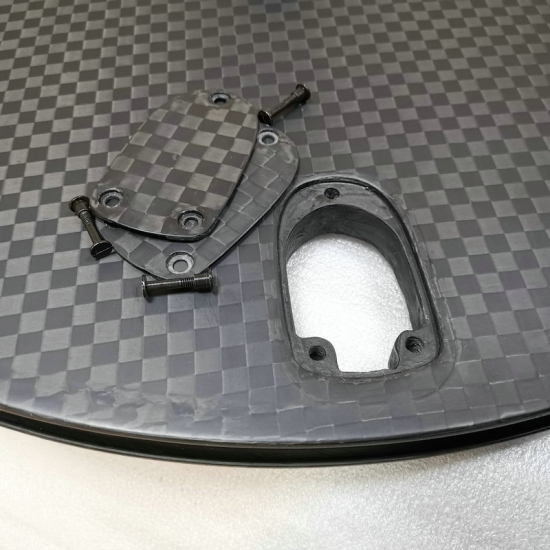

| Valve Hole Diameter |
6.5mm |
|

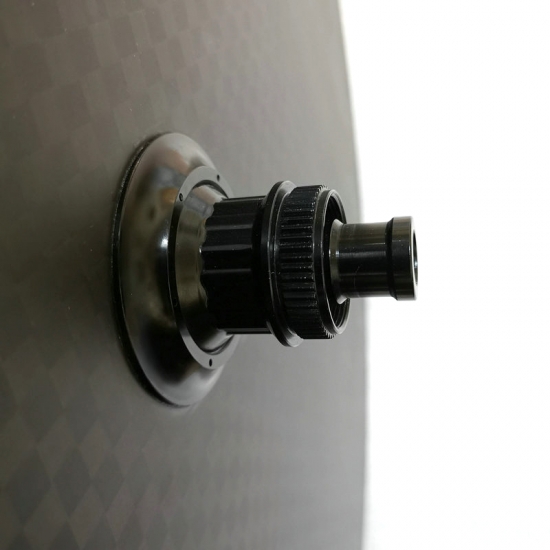

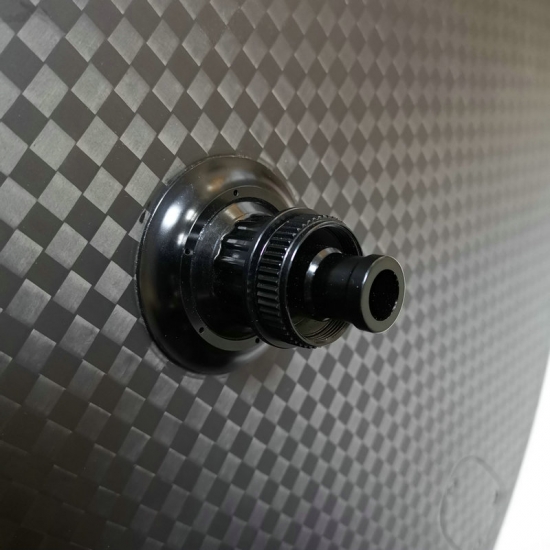

Hub |
Carbonal OE hub* / DT Swiss 350 / DT Swiss 240 |
| Bearing | CEMA ceramic bearings |
| Axle Size |
QR130mm / 12x142mm / fixed 120mm |
| Cassette Body | Shimano Road 11S / Sram XDR / Track fixed gear |
|
Tire size |
21C ~ 38C |
| Tire Pressure |
110 psi / 7.58 bar (recommended max) |
| Decal / Paint |
None or Custom graphics |
| Warranty |
5 years |
*This
weight is for disc wheel with UD weave and free coating finish. Disc
wheels with other carbon weaves and finishes are slightly heavier.
*Carbonal OE hub is ratchet system, can be upgraded to DT Swiss ratchet body.
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
