Item D23-40, weight 395g, ERD 565mm. New 30mm external and 23mm internal width 40mm deep road disc clincher rim provides the perfect platform for anything from a 25C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-44, weight 420g, ERD 557mm. Design with racing in mind, with a 24mm internal width and 44mm deep and stiff rim profile, the D24-44 is designed for experienced bike handlers looking for an aerodynamic edge or larger riders.
DetailsItem D24-39X, weight 410g, ERD 567mm. New 2.8mm offset asymmetric 700C Gravel/CX bike 24mm internal width 39mm deep clincher carbon rim, tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclo-cross bike tire choices. Ride comfort and have fun!
DetailsItem D29-40, weight 450g, ERD 565mm. 700C gravel bike 29mm internal width 40mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
DetailsItem XC928X, weight 335g/365, ERD 601mm. Light enough for racing, the XC928X rim with 28mm inner width and lower 22mm deep 3mm offset asymmetrical rim profile, targeted towards cross country racers who seek every possible edge on the course.
DetailsItem D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
Details
Following the resounding success of our groundbreaking D32 series, we are proud to unveil the next evolution in our gravel-specific carbon rim lineup: the D35/36H series. While the D32 redefined aerod...
Item No.:
BMX45101Size:
20 inchMaterial:
Toray T700 + T800 carbon fiberType:
clincherWeight:
310g±10ERD:
426mmInner width:
15.5mmOuter width:
22.5mmDepth:
24mmMax weight limit:

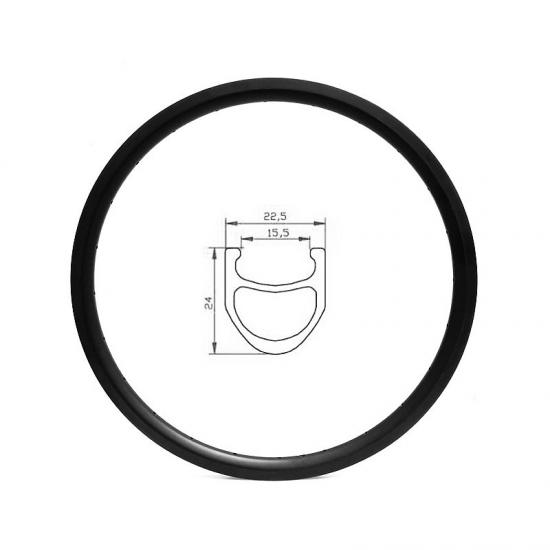

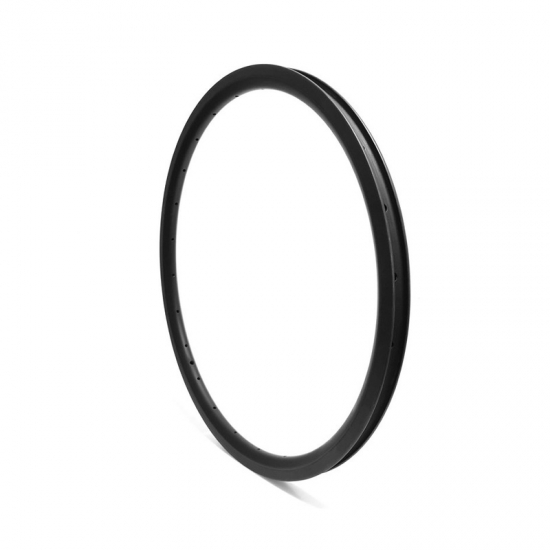

100kgProduct Item: Pro 20 inch 451 22.5mm wide 24mm depth carbon fiber clincher rim
This 20" 451 carbon clincher rim with 15.5mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing.
Specification:
|
Item: |
BMX45101 |
Use: |
BMX, Folding bike, Birdy, recumbent |
|
Rim type: |
20" clincher |
Material: |
Toray T700 + T800 carbon fiber |
|
Tubeless ready: |
No |
Weight: |
310g±10 |
|
External/Internal width: |
22.5mm / 15.5mm |
ETRTO: |
451mm |
|
Depth: |
24mm |
ERD: |
426mm (including nipple head dimension) |
|
Weave: |
UD / Marble |
Finish: |
Matte, gloss |
|
Spoke hole count: |
28, 32, 36 or customized |
Max weight limit: |
120kgs / 265lbs |
|
Spoke hole diameter: |
4.5mm or customized |
Assemble hole diameter: |
8.5mm |
|
Max spoke tension: |
>300kgf |
Valve hole diameter: |
6.5mm (Presta) or 8.5mm (Schrader) |
|
Decal: |
Customized |
Tyre fit: |
23C - 37C recommended |
|
Warranty: |
5 years |
Standard: |
EN standard |
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
Pro 20 inch 451 23mm wide 50mm depth carbon fiber clincher rim
Item BMX451-50, weight: 410g±15, ERD 374mm. This rim can be used for Folding bike, Recumbent bike, Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, BMX, BMX Racing etc.
Pro 20 inch 406 23mm wide 45mm depth carbon fiber clincher rim
Item BMX406-45, weight: 310g±15, ERD 340mm. This rim can be used for Folding bike, Recumbent bike, Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, BMX, BMX Racing etc.
700c Full Carbon 30.5mm Wide Clincher Tubeless Road & Triathlon Disc Wheels - REAR Wheel
Item DISCX-DR-W30.5, weight: 930g(±5%). Developed as the ideal rear disc wheel for road and time trail bike, most effective solutions for the aerodynamics as well as ride quality. Engineered for speed, efficiency, and superior ride quality, this 700c full carbon rear disc wheel is the ultimate upgrade for road cyclists and time trial enthusiasts seeking high performance.
29er asymmetric mtb XC rim convex spoke hole hookless tubeless ready
Item XC927A, weight 310g, ERD 595mm. This asymmetric 3mm offset 29er mtb rim with 1.5mm convex spoke hole brings stronger spoke holes, better rigidity and faster power transfer.
650C road bicycle carbon rim 23mm wide 50mm deep tubular
Item RT650C, weight: 360g, ERD 493. 650C carbon road 23mm wide 50mm deep tubular rim is lightweight and aerodynamics, build into a light 650C road wheelset. Available in rim brake and disc brake for training, racing.
D30-30H gravel bike disc 30mm wide 30mm deep hookless carbon rim
Item D30-30H, weight 420g, ERD 585mm. The D30 series represents our broadest gravel-oriented hookless carbon rim to date. The hookless rim boasts an even straighter bead and conspicuously smoother side walls, facilitating the tire's complete contact with the rim walls.

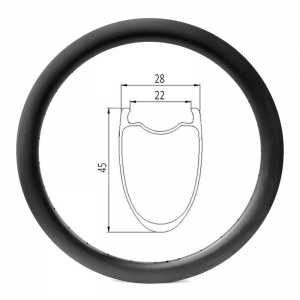

700c disc bike asymmetrical 22mm internal width 45mm deep clincher rim
Item D22-45X, weight 390g, ERD 405mm. New 2.5mm offset asymmetric 29er/700C 45mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
[Disc Brake] Custom build disc bike carbon wheel with DT Swiss 240s straight pull hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, perfect transmission of your power and the reliability allowing you to focus on the ride.
