Item No.:
BMX451-50Size:
20 inchMaterial:
Toray T700 + T800 carbon fiberType:
clincherWeight:
410g±15ERD:
374mmInner width:
16mmOuter width:
23mmDepth:
50mmMax weight limit:

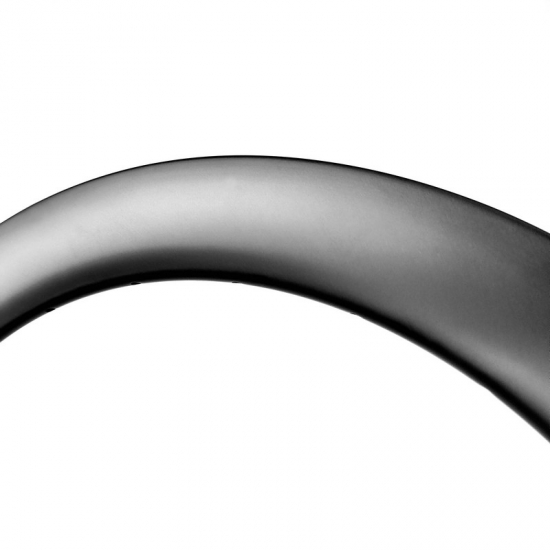

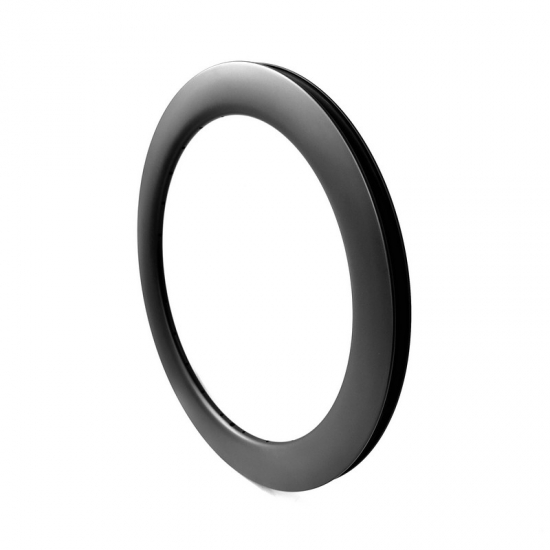

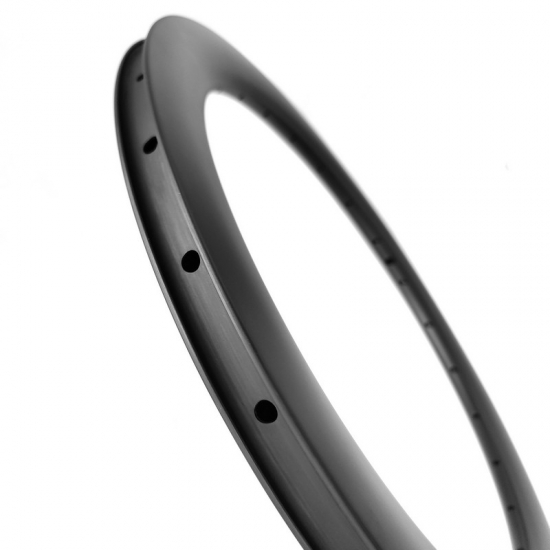

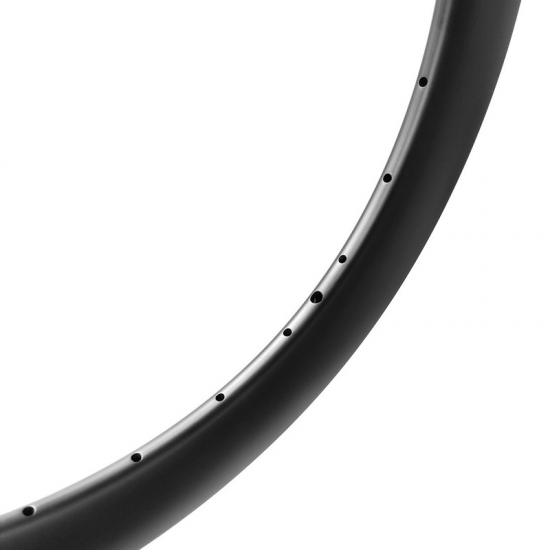

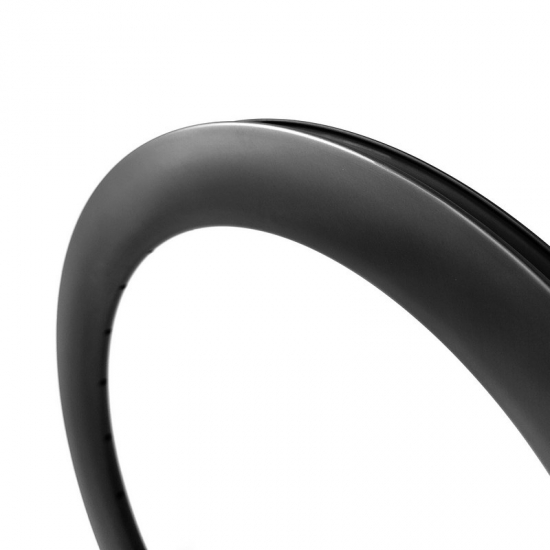

120kg / 265lbsProduct Item: Pro 20 inch 451 23mm wide 50mm depth carbon fiber clincher rim
This 20" 451 rim with 16mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing. This rim can be used for Folding bike, Recumbent bike, Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, BMX, BMX Racing etc.
Specification:
|
Item: |
BMX451-50 |
Use: |
Folding bike, recumbent, BMX etc. |
|
Rim type: |
20" clincher |
Material: |
Toray T700 + T800 carbon fiber |
|
Tubeless ready: |
No |
Weight: |
410g±15 |
|

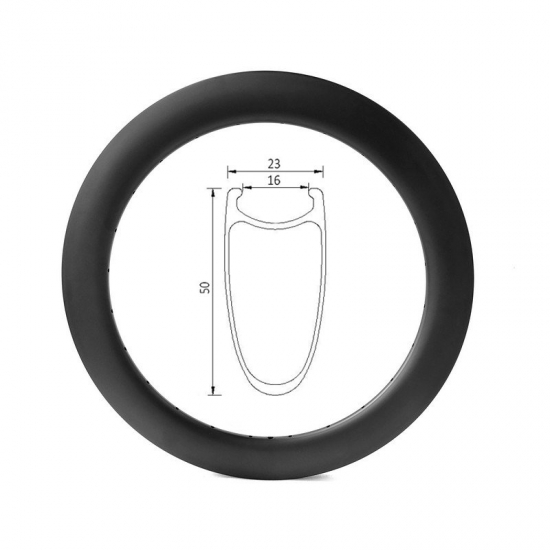

External/Internal width: |
23mm / 16mm |
ETRTO: |
451mm |
|
Depth: |
50mm |
ERD: |
374mm (including nipple head dimension) |
|
Weave: |
UD / 3k twill / Marble |
Finish: |
Matte, gloss |
|
Spoke hole count: |
14H to 36H |
Max weight limit: |
120kgs / 265lbs |
|
Spoke hole diameter: |
4.5mm or customized |
Assemble hole diameter: |
7.5mm |
|
Max spoke tension: |
>300kgf |
Valve hole diameter: |
6.5mm (Presta) or 8.5mm (Schrader) |
|
Decal: |
Customized |
Tire width: |
23C - 37C recommended |
|
Warranty: |
5 years |
Standard: |
EN standard |
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
