Item No.:
BMX406-45Size:
20 inchMaterial:
Toray T700 + T800 carbon fiberType:
clincherWeight:
310g±15ERD:
340mmInner width:
16mmOuter width:
23mmDepth:
45mmMax weight limit:

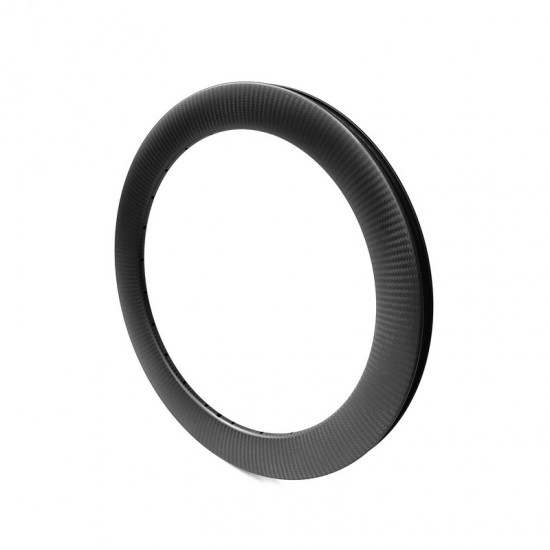

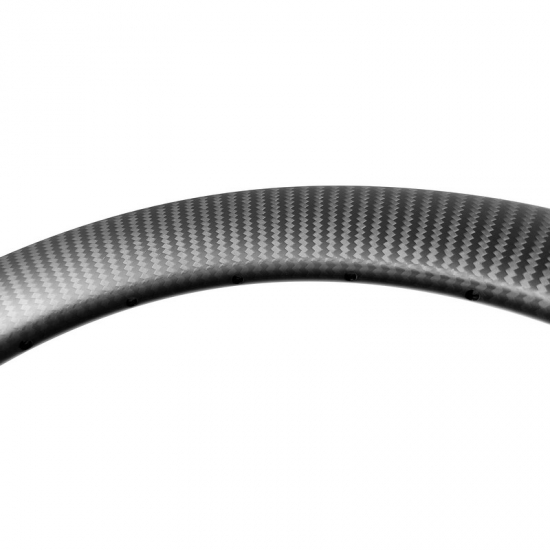

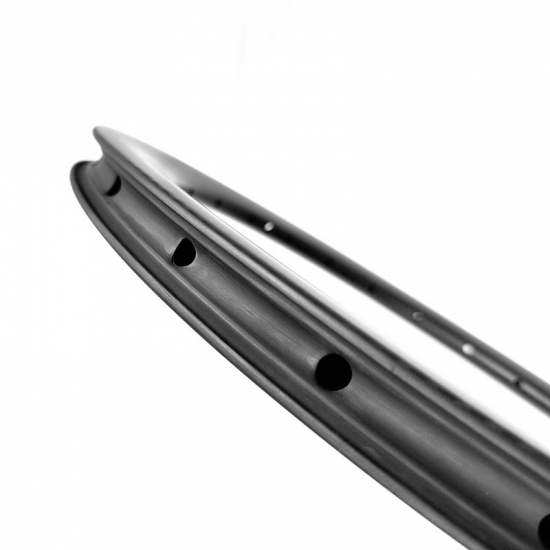

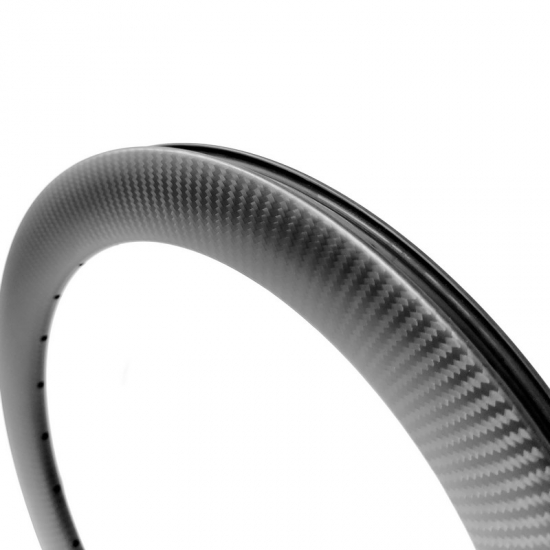

120kg / 265lbsProduct Item: Pro 20 inch 406 23mm wide 45mm depth carbon fiber clincher rim
This 20" 406 rim with 16mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing. This rim can be used for Folding bike, Recumbent bike, Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, BMX, BMX Racing etc.
Specification:
|
Item: |
BMX406-45 |
Use: |
Folding bike, recumbent, BMX etc. |
|
Rim type: |
20" 406 clincher |
Material: |
Toray T700 + T800 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
310g±15 |
|

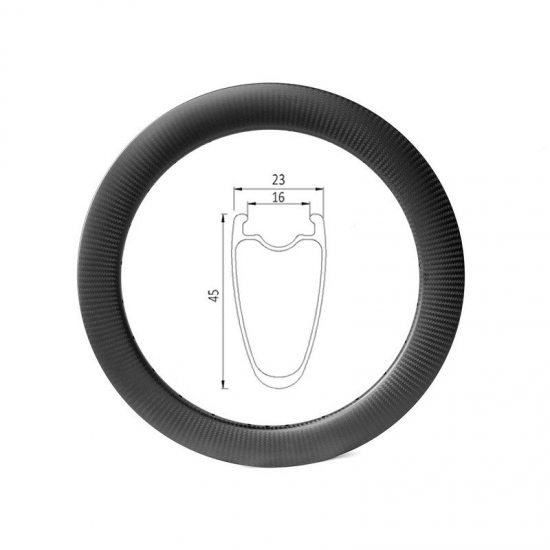

External/Internal width: |
23mm / 16mm |
ETRTO: |
406mm |
|
Depth: |
45mm |
ERD: |
340mm (including nipple head dimension) |
|
Weave: |
UD / 3k twill / Marble |
Finish: |
Matte, gloss |
|
Spoke hole count: |
14H to 36H |
Max weight limit: |
120kgs / 265lbs |
|
Spoke hole diameter: |
4.5mm or customized |
Assemble hole diameter: |
7.5mm |
|
Max spoke tension: |
>300kgf |
Valve hole diameter: |
6.5mm (Presta) or 8.5mm (Schrader) |
|
Decal: |
Customized |
Tire width: |
23C - 37C recommended |
|
Warranty: |
5 years |
Standard: |
EN standard |
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
Pro 20 inch 451 22.5mm wide 24mm depth carbon fiber clincher rim
Item BMX45101, weight: 310g±10, ERD 426mm. This 20" clincher rim with 15.5mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing.
Pro 20 inch 451 23mm wide 50mm depth carbon fiber clincher rim
Item BMX451-50, weight: 410g±15, ERD 374mm. This rim can be used for Folding bike, Recumbent bike, Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, BMX, BMX Racing etc.
U shape 60mm deep 18mm wide clincher tubeless carbon disc rim
Item D18-60, weight 500g, ERD 525mm. U aerodynamic shape makes this carbon 60mm deep high profile and 18mm internal width disc brake clincher tubeless rim lightweight but still stiff. Made for winning in sprint finishes, time trials, triathlons and circuit races.
Aerodynamic 80mm deep wider 25mm U shape tubular carbon 700C road rim
Item RT80S, weight 480g/530g, ERD 485mm. Carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.
700c disc bike asymmetrical 22mm internal width 45mm deep clincher rim
Item D22-45X, weight 390g, ERD 405mm. New 2.5mm offset asymmetric 29er/700C 45mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
D29-45 gravel bike disc 29mm wide 45mm deep clincher carbon rim
Item D29-45, weight 465g, ERD 555mm. 700C gravel bike 29mm internal width 45mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
D32-49 gravel bike 32mm internal width 49mm deep tubeless carbon rim
Item D32-49, weight 420g, ERD 547mm. Featuring an impressive 32mm inner width, the D32-49 delivers unparalleled stability for wider gravel tires. Its optimized design minimizes erratic air movements at the rim-tire interface, allowing air to flow seamlessly over the tire and rim.
700C Carbon Triathlon Track Triple Spoke 27mm Wide 69mm Deep Wheels
Item DTX301-27W-69D, weight: 780g ~ 1010g. New 700c triple spoke wheel of 20mm Int 27mm Ext and 69mm deep, available in tubular and clincher tubeless, aerodynamic design and excellent stiffness for optimal power transfer, ideal for triathlon testers and triathlons athlete. Extremely high modulus carbon fiber construction, race-proven by the pros.
