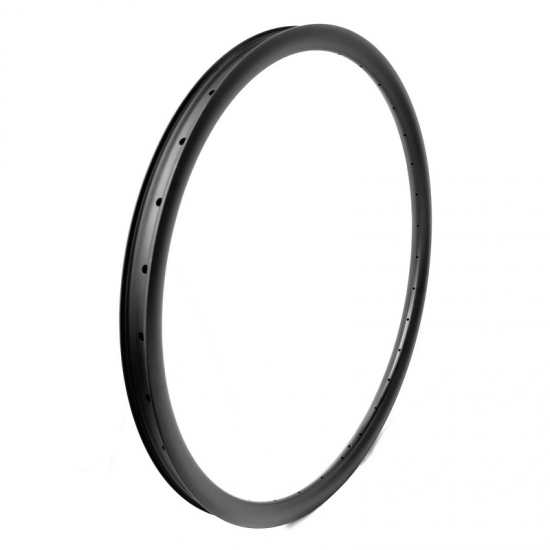

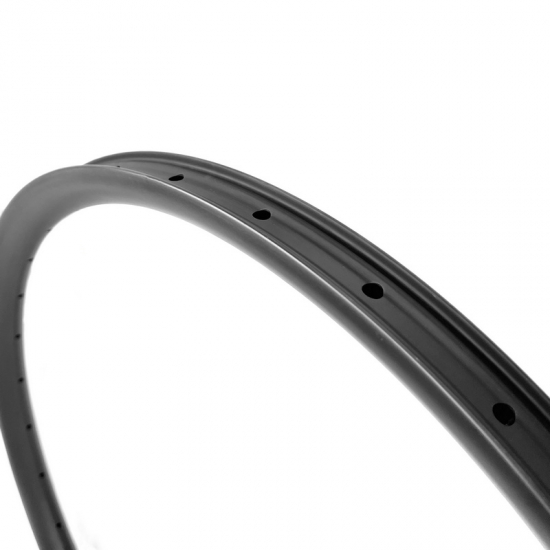

29er mtb XC 30mm internal 28mm deep asymmetric carbon rim

Item XC930X, weight 360g, ERD 589mm. Wide 30mm internal width and 3.5mm offset asymmetrical rim profile, super light at 360g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
  • Item No.:

    XC930X-28
  • Size:

    29 inch
  • Material:

    full carbon Toray T700 & T800
  • Type:

    Hookless (tubeless ready)
  • Weight:

    360g±15
  • ERD:

    589mm
  • Inner width:

    30mm
  • Outer width:

    36mm
  • Depth:

    28mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    110kg
  • description

Product Item: 29er mtb XC 30mm internal 28mm deep asymmetric carbon rim

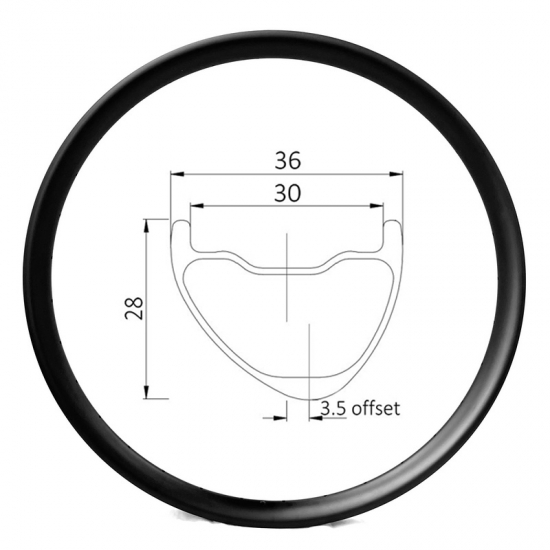

Wide 30mm internal width and 3.5mm offset asymmetrical rim profile, super light at 360g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.


Rim Specs:

 Item:
 XC930X-28
 Use:
 XC - cross country
 Rim type:
 29" hookless
 Material:
 Toray T700 & T800 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 360g±15
 External/Internal width:
 36mm / 30mm
 ERD:
 589mm
 Depth:
 28mm
 Finish:
 Matte, glossy
 Weight limit:
 110kgs
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110 ~ 130kgf)
 Max tire pressure:
 60psi / 4.1bar
 Tire size:
 2.1" ~ 2.7" (recommended)
 Min tire pressure:
 25psi / 1.75bar - read more
 Decal:
 Customized
 Standard:
 EN standard


All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us

(sales@carbonalbike.com) with your special requirements described, we will do our best to help you.


Features:

  • This 29er mtb XC rim has a 30mm internal width, giving a good and square profile to tires without being overly draggy.
  • Asymmetric 3.5mm offset rim profile balances drive and non-drive side spoke tension to create a more durable and well-balanced light mtb wheel.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.

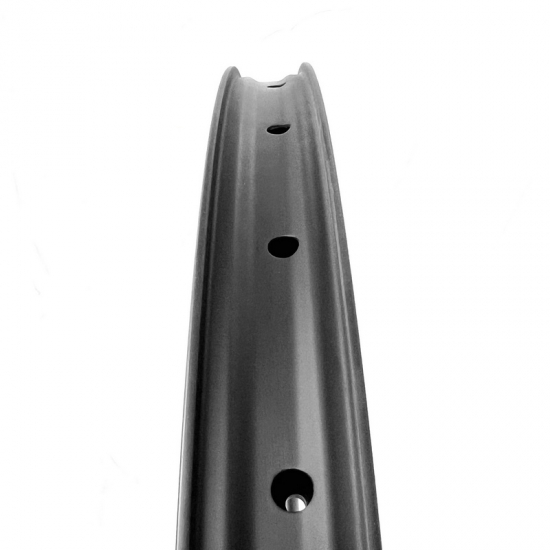

  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control
